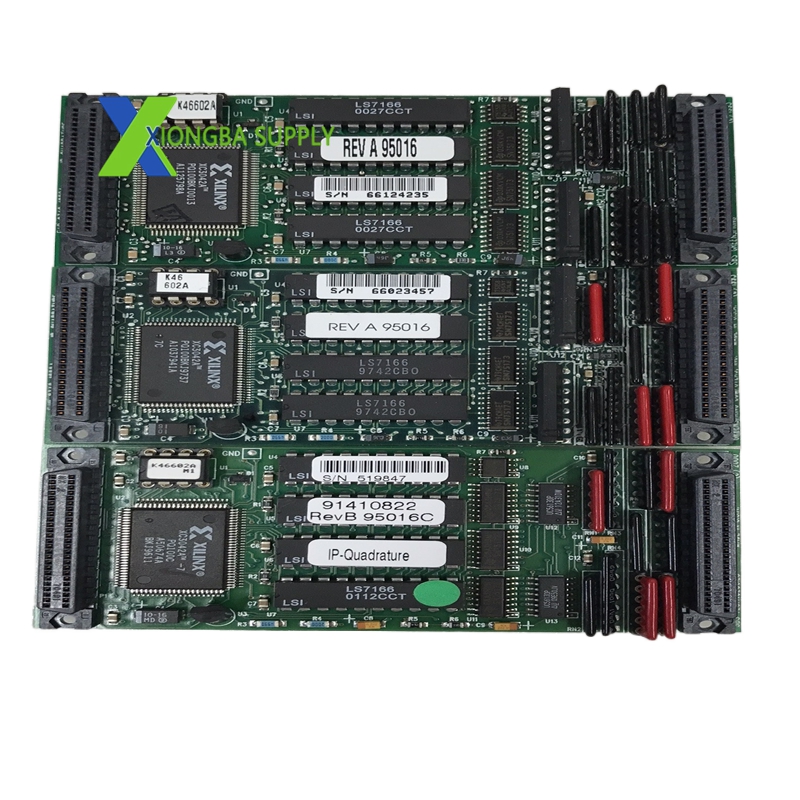

GE IP-QUADRATURE High-Precision Quadrature Encoder Interface Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IP-QUADRATURE
• Series: Mark VIe Turbine Control System / SIGINTEC Series Signal Processing Modules
• Channel Configuration: 4 independent, fully programmable quadrature decoder channels
• Resolution: 24-bit per channel
• Maximum Count Frequency:
  • General-purpose counter mode: DC to 10 MHz
  • Quadrature decoder mode: DC to 1.2 MHz (higher in X1/X2 prescaler modes)
• Input Signal Type: Differential (RS-422) or single-ended (TTL/CMOS), selectable per channel
• Prescaler Modes: Programmable 1X, 2X, 4X quadrature counting
• Power Supply: 3.3 VDC or 5 VDC
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -55°C to +125°C (-67°F to 257°F)
• Relative Humidity: 5%–95% (non-condensing)
• Dimensions (L×W×H): 115 × 65 × 30 mm (4.5 × 2.6 × 1.2 in)
• Weight: 0.5 kg (1.1 lbs)
• Certifications: CE, UL (industrial safety compliance)

Key Features

1. High-Density Four-Channel Design
   • Integrates four independent quadrature decoder channels in a compact unit, optimizing space and cost for multi-axis monitoring.
   • Each channel operates independently, supporting simultaneous monitoring of up to four encoders.
2. Ultra-High Precision & Speed
   • 24-bit resolution delivers accurate position measurement down to 0.1° for turbine shaft and motion control applications.
   • Handles pulse frequencies up to 10 MHz, ensuring reliable tracking of high-speed rotation and motion.
3. Flexible Programmability
   • Each channel configurable as a quadrature decoder or a general-purpose up/down counter.
   • Programmable input polarity, prescaler modes (1X/2X/4X), and TTL resistor termination for seamless sensor integration.
   • Supports index pulse (Z-channel) processing for precise homing and position reset.
4. Real-Time Monitoring & Diagnostics
   • Features “read-on-the-fly” capability for instant, non-disruptive retrieval of 24-bit counter values.
   • Equipped with interrupt functions for position capture, fault detection, and event triggering.
   • Provides comprehensive diagnostics for signal integrity, bus errors, and module health.
5. Robust Industrial Reliability
   • Differential signal processing and galvanic isolation ensure superior noise immunity in high-interference environments.
   • Wide temperature and humidity tolerance withstand extreme industrial conditions.
   • Low-power CMOS design ensures long-term, maintenance-free operation.

Application Scenarios

• Power Generation (Gas/Steam Turbines)
  • Turbine Control & Protection: Precisely monitors shaft speed, position, and vibration for overspeed protection, synchronous grid connection, and load balancing.
  • Compressor Monitoring: Tracks rotation speed and position of large compressors in combined-cycle power plants.
• Industrial Motion Control
  • CNC Machine Tools: Provides high-resolution position feedback for spindle and axis motion control, ensuring accurate machining.
  • Robotics: Enables precise joint position and speed monitoring for industrial robots in automotive assembly and material handling.
  • Packaging & Conveying: Supports high-speed encoder feedback for synchronized conveyor lines and packaging machinery.
• Process Industries
  • Oil & Gas: Monitors rotary equipment (pumps, compressors) speed and position in refineries and pipeline systems.
  • Chemical & Petrochemical: Ensures precise motion control for mixer agitators and reactor positioning systems.
• Aerospace & Defense
  • Radar & Navigation: Decodes quadrature signals from radar antennas and navigation systems for target tracking and positioning.
