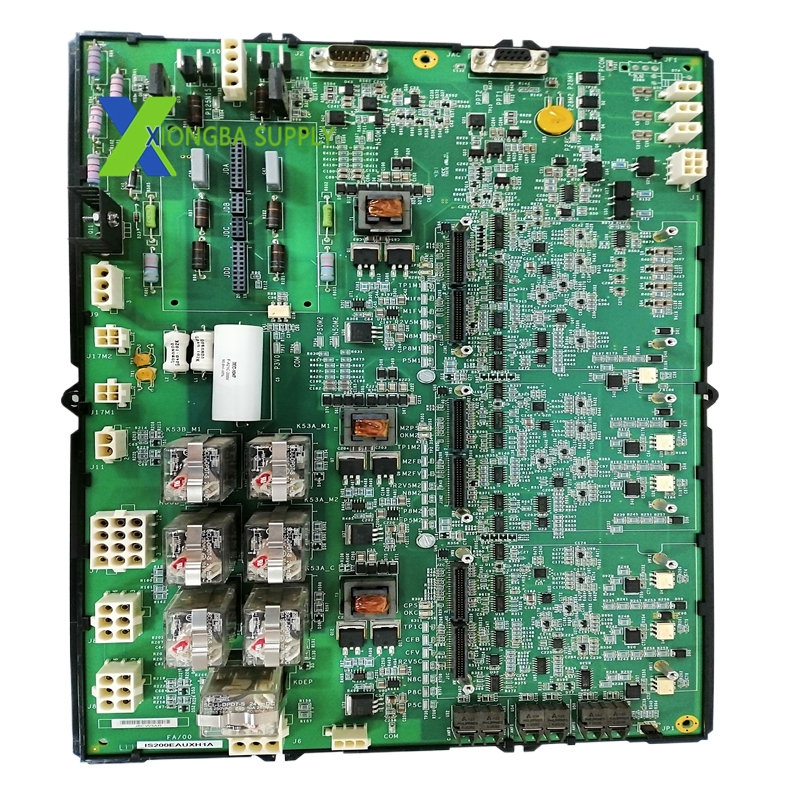

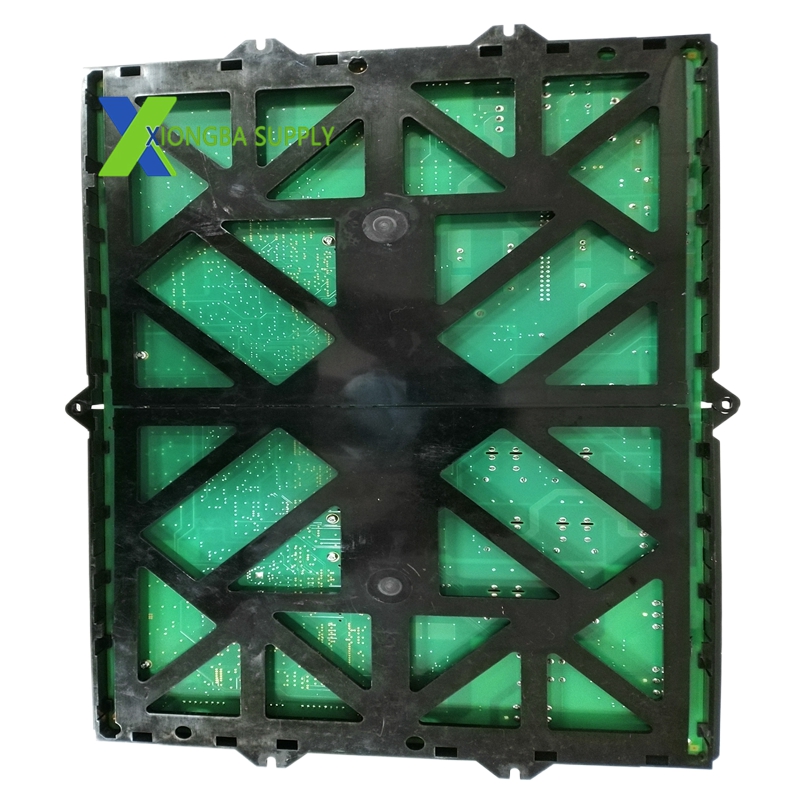

GE IS200EAUXH1A Exciter Auxiliary I/O Interface Board

Technical Specifications

• Manufacturer: General Electric (GE) Industrial Systems
• Model: IS200EAUXH1A
• Series: EX2100e (Speedtronic Control System)
• I/O Configuration: 8 digital inputs, 8 digital outputs, 4 analog input channels
• Signal Types: Discrete (0–24 VDC), Analog (0–20 mA)
• Analog Resolution: 12-bit
• Accuracy: ±0.1% full scale
• Power Supply: 24 VDC, 12 W; input range 18–36 VDC
• Processor: 667MHz Freescale 8349 processor
• Operating Temperature: -20°C to +60°C (-4°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Dimensions (H×W×D): 230 × 160 × 80 mm (9.06 × 6.30 × 3.15 in)
• Weight: Approximately 2.9 kg (6.4 lbs)
• Communication Interface: High-Speed Serial Link (HSSL); supports Modbus, Profibus protocols
• Certifications: CE, UL, NFPA Class 1

Key Features

1. High-Density I/O Integration
   • Combines 16 discrete points (8-in/8-out) and 4 analog inputs on a single board, reducing cabinet space and wiring complexity.
   • Accepts both 24 VDC digital signals and 0–20 mA analog signals, compatible with standard industrial sensors and actuators.
2. Precise Signal Processing
   • 12-bit analog-to-digital conversion with ±0.1% accuracy ensures accurate measurement of temperature, pressure, flow, and other process variables.
   • High noise immunity design filters electrical interference, maintaining signal stability in harsh industrial environments.
3. Seamless System Communication
   • Connects to the EX2100e main controller via HSSL for high-speed data exchange with a transmission rate of up to 10 Mbps.
   • Supports multiple industrial protocols (Modbus, Profibus) for interoperability with third-party devices and SCADA systems.
4. Rugged Industrial-Grade Design
   • Wide operating temperature range (-20°C to +60°C) and resistance to vibration, dust, and moisture for reliable operation in power plants and heavy industrial sites.
   • Compact, lightweight construction with standardized mounting holes for easy installation in control cabinets.
5. Enhanced System Reliability
   • Hot-plug capable, allowing replacement without shutting down the entire system to minimize downtime.
   • Built-in diagnostic LEDs for real-time monitoring of power status, communication activity, and I/O fault conditions.

Application Scenarios

• Power Generation Plants
  • Thermal Power: Interfaces with temperature/pressure sensors, flow transmitters, and valve actuators in boiler and turbine excitation control systems.
  • Hydroelectric Power: Monitors generator winding temperature, water level, and vibration sensors; controls excitation current for stable grid connection.
  • Gas Turbine Power: Integrates with the EX2100e system to regulate generator excitation, ensuring efficient and safe operation of gas turbine units.
• Industrial Automation & Process Control
  • Heavy Machinery: Connects PLCs with hydraulic/pneumatic actuators, pressure sensors, and limit switches in metalworking and mining equipment.
  • Water Treatment: Monitors pH, turbidity, and dissolved oxygen sensors; controls pumps and valves in wastewater treatment plants.
  • Oil & Gas: Interfaces with pressure/temperature transmitters and flow meters in pipeline monitoring and compressor station control.
• Renewable Energy Systems
  • Wind Farms: Controls excitation systems of doubly-fed induction generators (DFIG), optimizing power output and grid compatibility.
  • Solar Power Plants: Monitors inverter status, temperature sensors, and grid voltage; provides auxiliary control for solar generation systems.
