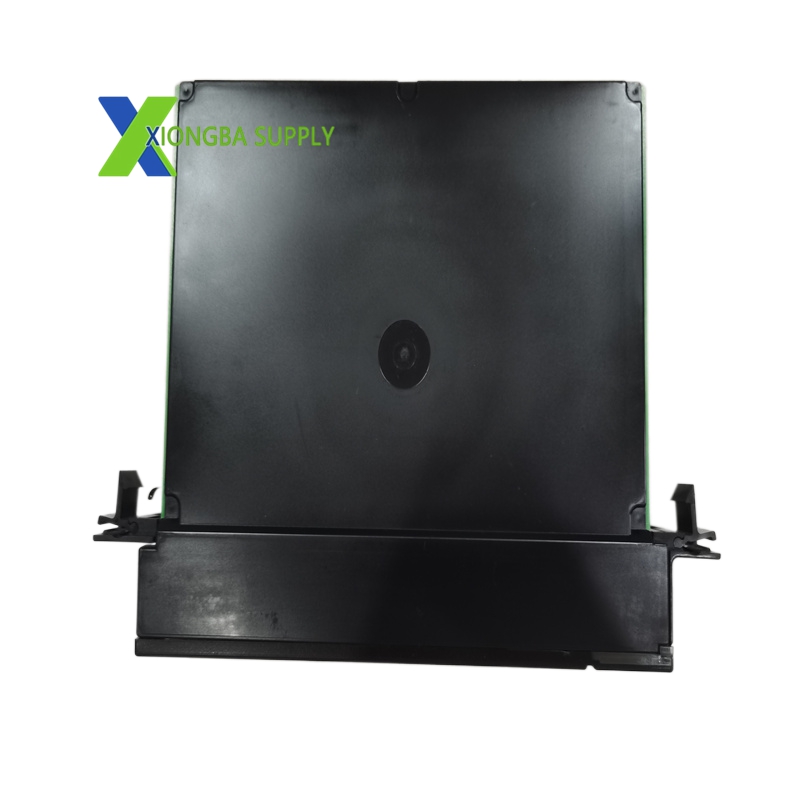

GE IC697PWR710H – Series 90-70 55W AC Power Supply Module

In stock

Product Description:

The IC697PWR710H is a standard AC power supply for the GE Series 90-70 PLC. It auto-detects 120/240VAC input and provides +5VDC (5A) and +24VDC (1.5A) output with 55W total power. It protects against overvoltage, overcurrent, short circuits, and overheating, making it ideal for small to medium 90-70 systems.

Technical Specifications:

Manufacturer: GE Fanuc (Emerson Automation)
Series: Series 90-70 PLC System
Module Type: AC-DC power supply, single-slot
Input Voltage: 120/240VAC auto-sense; 85–264VAC range
Frequency: 47–63Hz
Outputs: +5VDC @ 5A; +24VDC @ 1.5A
Power Rating: 55W total
Efficiency: ≥80% @ full load
Protection: Overvoltage, overcurrent, short circuit, overheating, surge
LED Indicators: Power OK, Fault
Backplane Compatibility: Series 90-70 universal backplane
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Weight: Approx. 1.0 kg
Certifications: CE, UL, CSA, RoHS

Key Features:

Wide Input Range: 85–264VAC works with global industrial grids.
Dual Isolated Outputs: +5V for logic, +24V for I/O/sensors, with cross-isolation.
Multi-Protection Circuitry: Safeguards against faults to protect PLCs and field devices.
High Reliability: Industrial components and rugged PCB for 24/7 cabinet operation.
Status Monitoring: LEDs show power and fault status for quick diagnostics.
Compact Single-Slot Design: Saves space in small to medium systems.
High Efficiency: ≥80% efficiency reduces heat and cooling needs.

Applications:

Small/Medium PLC Systems: Powering CPU, I/O, and communication modules in systems with ≤8 I/O modules.
Standard Control Cabinets: Manufacturing, water treatment, and HVAC panels with 120/240VAC mains.
Non-Redundant Systems: Cost-effective power for non-critical automation.
Original Equipment: Integrated power for dedicated machinery (packagers, testers).
