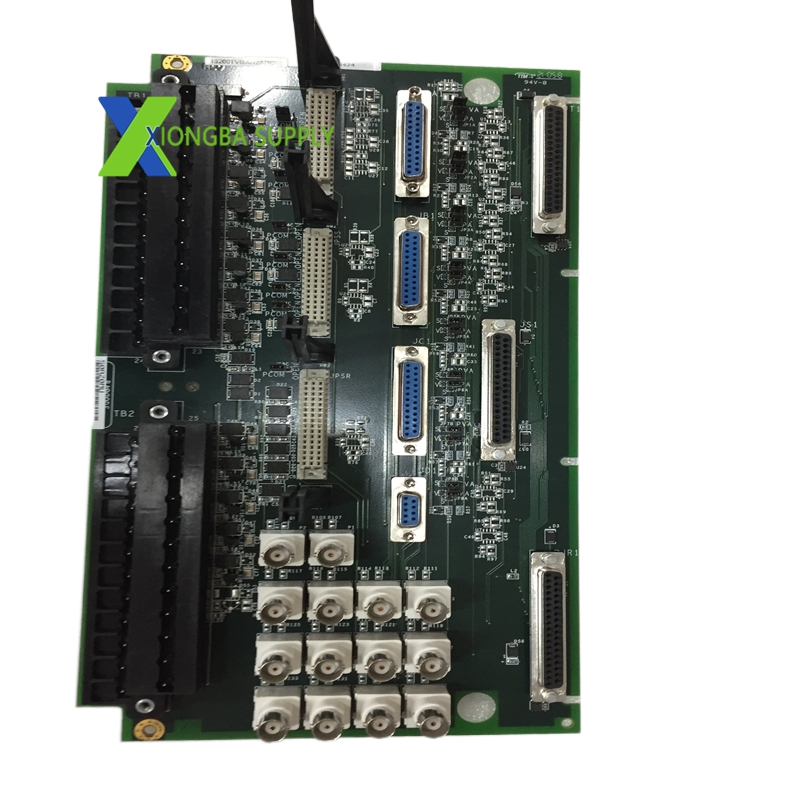

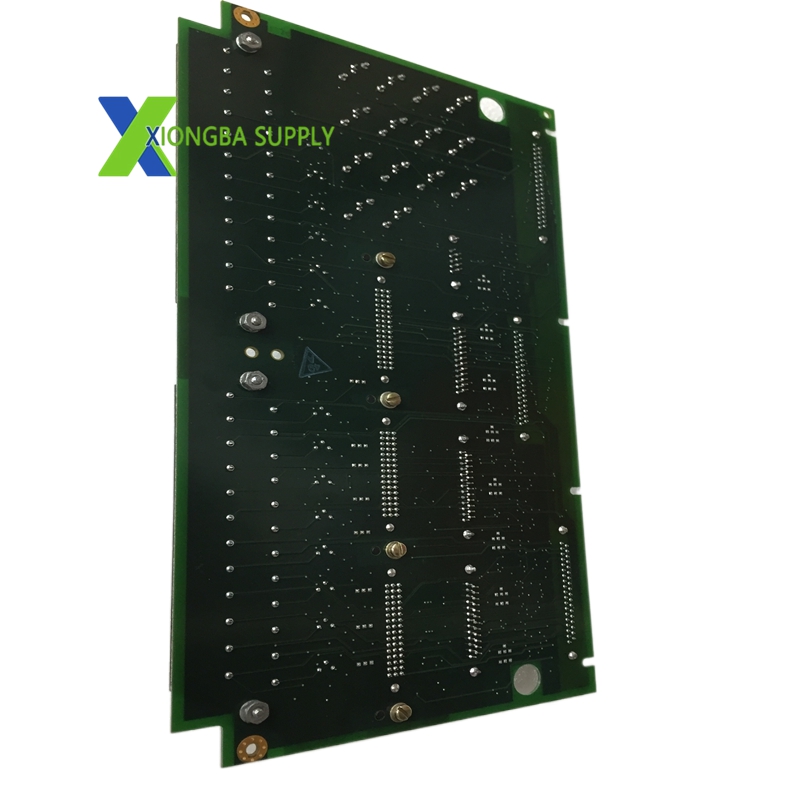

GE IS200TVBAH2ABC Vibration Terminal Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS200TVBAH2ABC
• Series: Speedtronic Mark VI (Gas Turbine Control System)
• Vibration Input Channels: 8 channels for seismic/proximity probes
• Selectable Pull Channels: 8 channels with configurable pull settings
• PRxxL Channels: 8 channels for probe-related signal processing
• MPU Pulse Rate Range: 2 Hz to 20 kHz
• Input Voltage Range: 18–32 VDC
• Buffered Outputs: 14 channels
• N24 Outputs: 14 channels, 12 mA maximum current per channel
• N28 Voltage: 28 VDC (normal), 400 mA maximum current
• Amplitude Accuracy: ±0.1%
• Mounting: DIN-rail compatible
• Operating Temperature: -30°C to +65°C (-22°F to 149°F)
• Dimensions: 330 mm × 178 mm (13.0 in × 7.0 in)
• Technology: Surface-mount device (SMD) construction
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Specialized Vibration & Speed Signal Processing
   • Dedicated 8-channel interface for both seismic (velocity) and proximity vibration probes, supporting comprehensive machinery health monitoring.
   • Processes MPU pulses for accurate rotational speed measurement, with a wide frequency range (2 Hz–20 kHz) to accommodate diverse turbine and generator applications.
2. High Precision & Signal Integrity
   • Delivers ±0.1% amplitude accuracy, ensuring reliable and precise vibration data for condition monitoring and predictive maintenance.
   • Integrated signal conditioning circuitry filters noise and amplifies weak sensor signals, maintaining data integrity in electrically noisy industrial environments.
3. Modular & Rugged Design
   • DIN-rail mounting enables easy installation and integration into standard control cabinets, reducing setup time.
   • Industrial-grade SMD construction with a wide operating temperature range (-30°C to +65°C) ensures durability and stable performance in harsh power generation environments.
4. Seamless System Integration
   • Acts as the direct interface between vibration/speed sensors and the Mark VI PVIB I/O pack, enabling plug-and-play connectivity within the GE Speedtronic control system.
   • Provides 14 buffered outputs and 14 N24 outputs for flexible signal routing to other system components or auxiliary monitoring devices.
5. Enhanced Diagnostics & Reliability
   • Supports continuous on-board monitoring of sensor status and signal quality, enabling early fault detection and minimizing unplanned downtime.
   • Redundant signal processing capabilities enhance system reliability, critical for non-stop operation in power generation facilities.

Application Scenarios

• Power Generation (Gas & Steam Turbines)
  • Combined Cycle Power Plants: Monitors vibration and speed parameters of gas turbines, steam turbines, and generators to ensure operational stability and prevent mechanical failures.
  • Thermal Power Plants: Connects vibration probes and MPU sensors to the Mark VI control system for real-time health monitoring of boiler feed pumps, fans, and other rotating machinery.
• Oil & Gas Industry
  • Gas Compression Stations: Monitors vibration and speed of centrifugal compressors and gas turbines used in natural gas processing and transportation.
  • Refineries: Supports condition monitoring of steam turbines and rotating equipment in refining processes, ensuring continuous and safe operation.
• Industrial Captive Power Plants
  • Provides vibration and speed monitoring for on-site gas/steam turbines and generators, maintaining reliable power supply for manufacturing operations.
• Predictive Maintenance & Machinery Health Monitoring
  • Enables real-time tracking of vibration trends and speed fluctuations, allowing maintenance teams to schedule proactive repairs and avoid catastrophic equipment failures。
