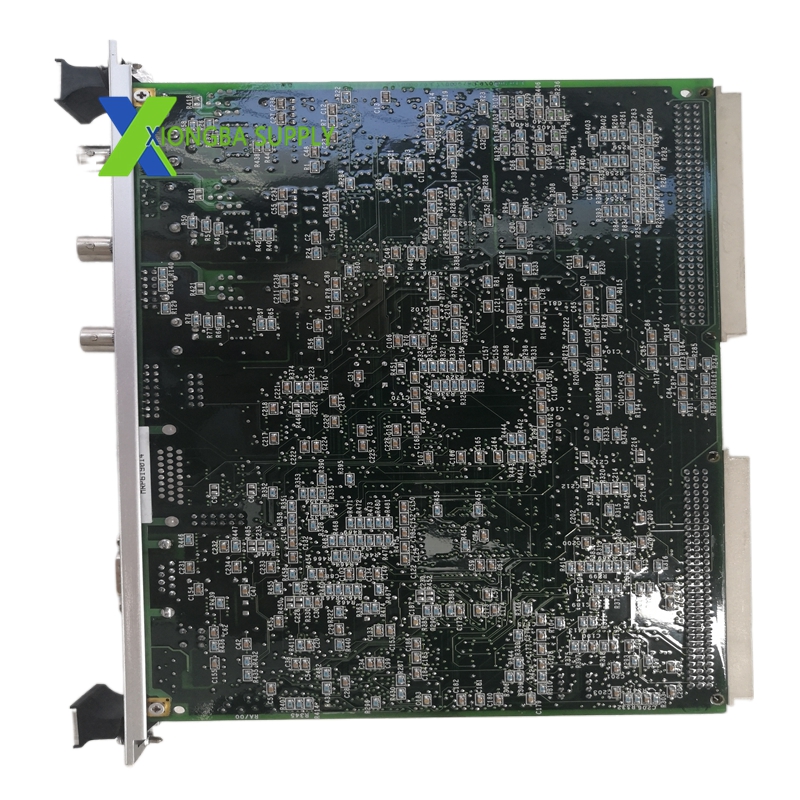

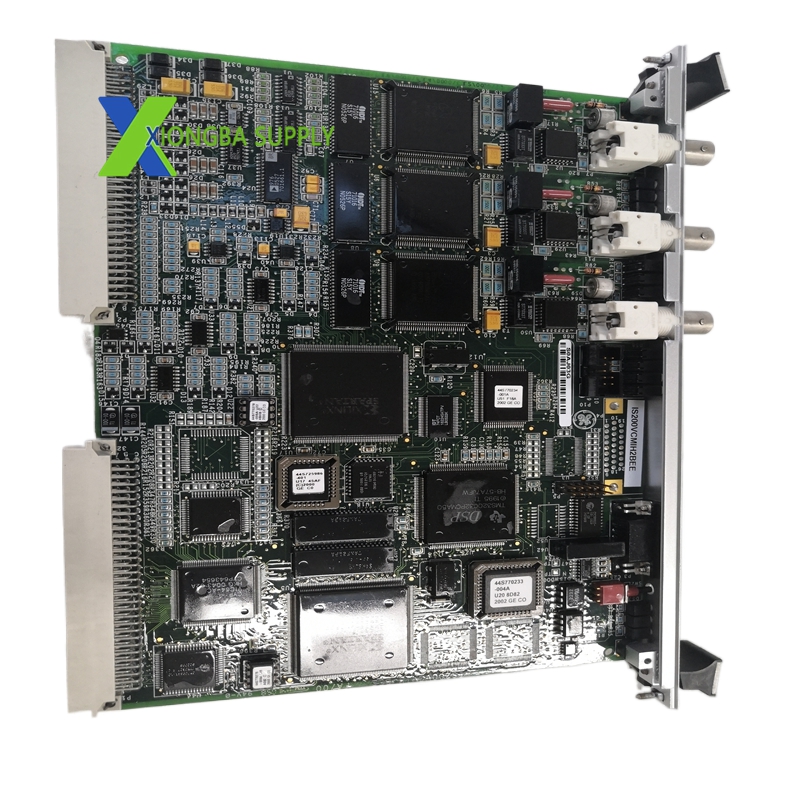

GE IS200VCMIH2BEE – VME Communication Interface Board (VCMI)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS200VCMIH2BEE
• Series: Speedtronic Mark VI Control System
• Form Factor: VMEbus-compatible board
• Redundancy: Triple Modular Redundant (TMR) with 3 independent IONet ports
• Communication: Fiber-optic Ethernet (IONet), 100 Mbps data transfer rate
• Processor: High-speed industrial communication processor
• Memory: 16 MB SDRAM, 32 MB Flash
• Power Supply: 24 VDC (redundant input)
• Power Consumption: Max 8.5 W (non-fault-tolerant operation)
• Dimensions (L×W×H): 147 mm × 51.5 mm × 114 mm
• Weight: 0.6 kg (unit only); 1.5 kg (shipping weight)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. TMR Redundancy & Fault Tolerance
   • Triple modular redundant (TMR) architecture with three IONet ports for simultaneous data transmission and validation.
   • SIFT voting technology ensures data accuracy by cross-checking three data streams, eliminating single-point failures.
2. High-Speed Fiber-Optic Communication
   • Dedicated fiber-optic Ethernet (IONet) interface enables 100 Mbps real-time data exchange between the Mark VI controller and remote I/O racks.
   • Immune to electromagnetic interference (EMI) and noise, ensuring stable communication in harsh industrial environments.
3. Master Communication Control
   • Acts as the UDH master controller, managing data routing, synchronization, and command distribution across the turbine control system.
   • Supports broadcast data transmission to all remote racks, with remote VCMI boards extracting relevant data packets.
4. Robust Industrial Design
   • Compact VME form factor for easy integration into standard industrial control cabinets.
   • Wide operating temperature range and ruggedized components ensure reliability in extreme power plant and process conditions.
   • Hot-swappable design allows for quick replacement without system shutdown, minimizing maintenance downtime.
5. Comprehensive Diagnostics & Monitoring
   • On-board LED indicators for real-time status monitoring (power, communication, fault conditions).
   • Supports remote diagnostics and troubleshooting via the Mark VI system, enabling proactive maintenance and reducing on-site service needs.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Manages high-speed communication for turbine startup, speed regulation, generator synchronization, and overspeed protection in combined-cycle power plants.
  • Steam Turbine Control: Facilitates real-time data exchange for load control, pressure monitoring, and thermal stress management in thermal power stations.
  • Hydro Turbine Control: Ensures reliable communication for turbine speed, water level, and flow control in hydroelectric power plants.
• Process Industries
  • Oil & Gas: Supports turbine-driven compressor and pump control in refineries, pipelines, and LNG facilities, ensuring safe and efficient operation.
  • Chemical & Petrochemical: Enables precise control of turbine-driven processes (e.g., reactors, distillation columns) with real-time data synchronization.
• Industrial Automation
  • Critical Infrastructure: Used in large-scale industrial facilities requiring high-reliability turbine control, such as steel mills, paper mills, and pharmaceutical plants.
  • Distributed Control Systems (DCS): Integrates with GE Mark VI DCS to provide seamless communication between turbine controls and plant-wide automation systems。
