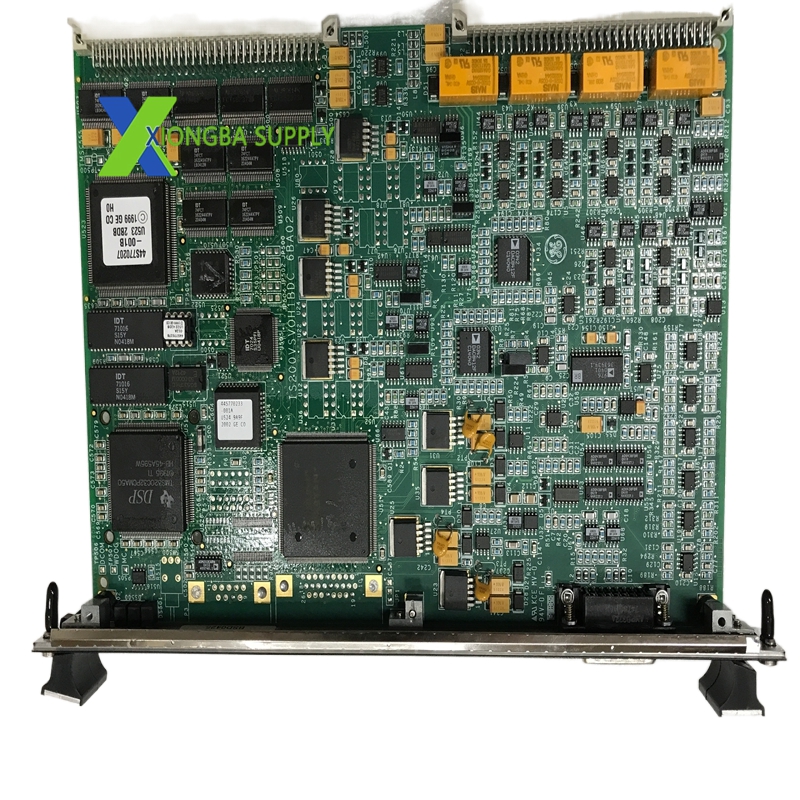

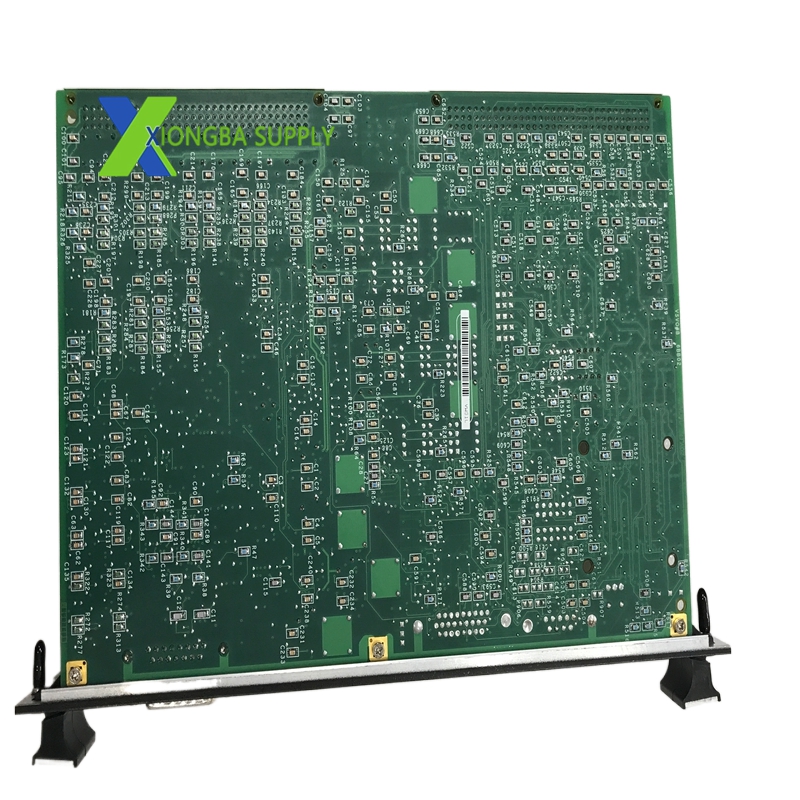

GE IS200VSVOH1BED – VME Servo Control Board (VSVO)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS200VSVOH1BED
• Series: Speedtronic Mark VI Control System
• Form Factor: VMEbus-compatible single-slot board
• Control Channels: 4 electro-hydraulic servo valve channels
• Position Feedback: LVDT (Linear Variable Differential Transformer) interface, supports 1–4 LVDTs per channel
• Pulse Rate Inputs: 2–14 kHz frequency range for flow measurement
• Servo Valve Compatibility: 2 or 3 servo valves (3 for TMR applications)
• Redundancy: Supports both Triple Modular Redundant (TMR) and simplex configurations
• LED Indicators: 3 (Run, Fail, Status) for real-time diagnostics
• Power Supply: 24 VDC (redundant input)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Coating: Conformal coating for harsh industrial environment protection
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Precision Servo Loop Control
   • Executes high-speed closed-loop control algorithms for 4 servo channels, ensuring accurate and stable valve positioning.
   • Supports independent tuning of each channel for optimal dynamic performance across varying load conditions.
2. LVDT Position Feedback & Excitation
   • Provides integrated LVDT excitation power and signal conditioning, eliminating the need for external modules.
   • Accepts redundant LVDT inputs (1–4 per channel) for fault-tolerant position monitoring and validation.
3. TMR Redundancy & Fault Tolerance
   • Designed for seamless integration into Mark VI TMR systems, with 3 units operating in parallel for critical applications.
   • Features dedicated “kill relays” for each servo output, which short-circuit signals during power loss or faults to ensure safe system state.
4. Robust Industrial Design
   • Conformal-coated PCB protects against dust, moisture, and chemical contaminants in power plant environments.
   • Compact VME form factor enables easy installation and replacement in standard industrial control cabinets.
   • Hot-swappable design minimizes maintenance downtime during board replacement.
5. Comprehensive Diagnostics & Monitoring
   • On-board LEDs display real-time operational status (normal run, fault conditions, system status).
   • Continuous monitoring of output voltage, current, and kill relay status for proactive fault detection.
   • Supports remote diagnostics via the Mark VI system for efficient troubleshooting and maintenance.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Precisely regulates fuel and steam valves for turbine startup, speed control, load management, and overspeed protection in combined-cycle power plants.
  • Steam Turbine Control: Controls steam inlet valves for accurate load regulation, pressure control, and thermal stress management in thermal power stations.
  • Hydro Turbine Control: Manages wicket gate and needle valve servos for precise flow and speed control in hydroelectric power plants.
• Process Industries
  • Oil & Gas: Controls turbine-driven compressors and pumps in refineries, pipelines, and LNG facilities, ensuring stable and efficient operation.
  • Chemical & Petrochemical: Regulates turbine-driven processes (e.g., reactors, distillation columns) with precise valve control for consistent product quality.
• Industrial Automation
  • Critical Infrastructure: Deployed in large-scale industrial facilities requiring high-reliability turbine control, such as steel mills, paper mills, and pharmaceutical plants.
  • Distributed Control Systems (DCS): Integrates seamlessly with GE Mark VI DCS to provide coordinated servo control across plant-wide automation systems。
