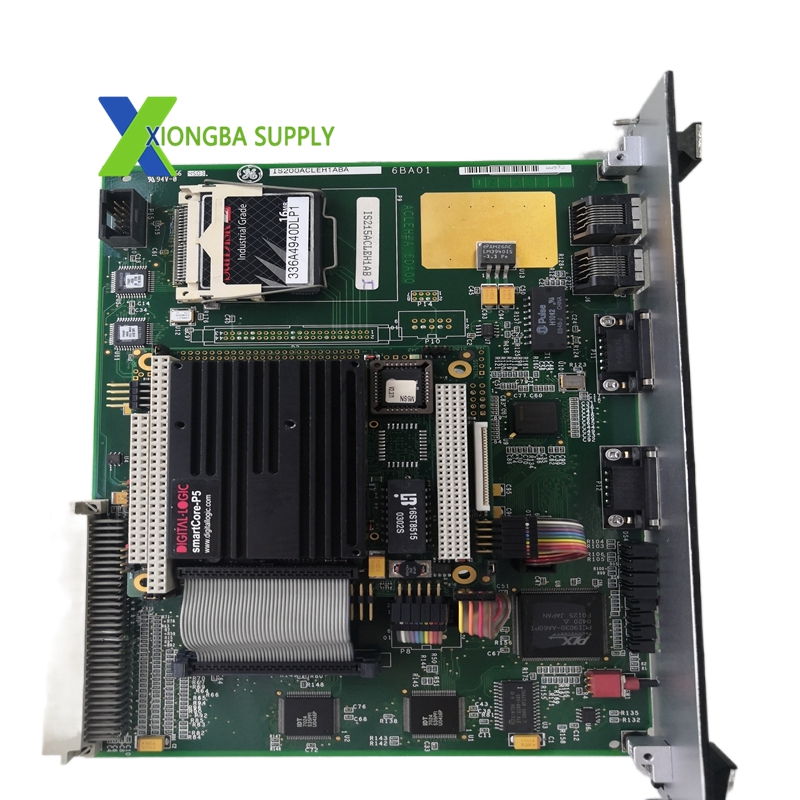

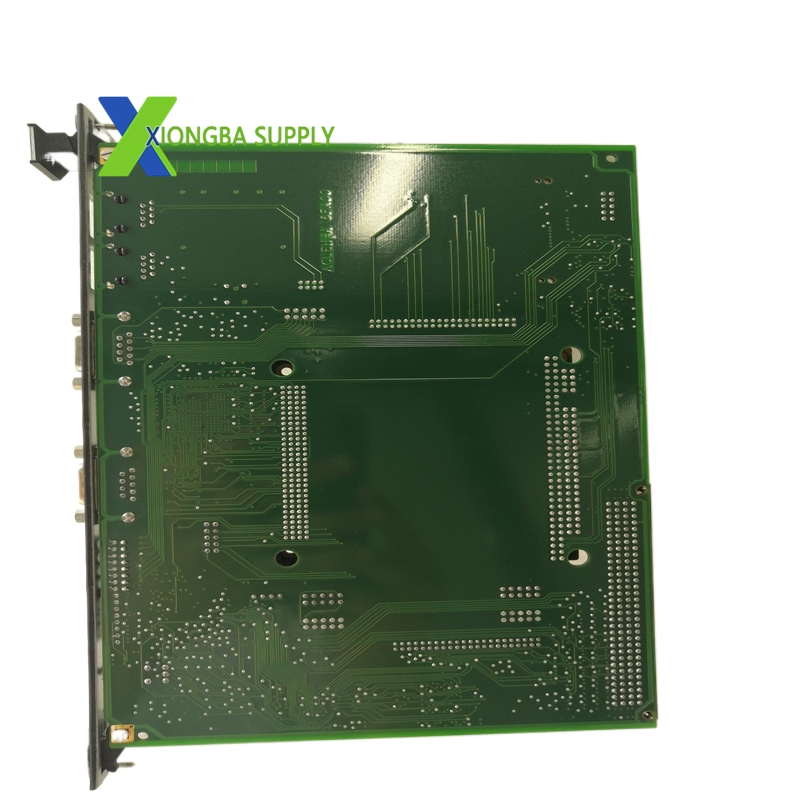

GE IS215ACLEH1A – Application Control Layer (ACLE) Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS215ACLEH1A
• Compatible Systems: EX2100 Excitation Control System, Innovation Series Drives
• Form Factor: 2-slot VMEbus module (fits standard EX2100 racks)
• Processor Options: 486/100 MHz, Pentium P5/266 MHz, or Tualatin Celeron/400 MHz
• Memory: 256 KB L2 Cache, 128 MB Expandable DRAM, 4 MB Flash BIOS
• Non-Volatile Storage: CompactFlash (no battery backup required)
• Communication Interfaces:
  • 2 × 10BaseT Ethernet Ports (ENET1/ENET2)
  • 2 × RS-232 Serial Ports (COM1/COM2, supports SNP/SNP-X slave protocol)
  • PCI Controller, Bus Target Interface
• Power Supply: 10–30 VDC Input
• Power Consumption: Max 8 W
• Dimensions (H×W×D): 159 mm × 102 mm × 210 mm
• Weight: 1.2 kg (unit only)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA, IEC 60950, UL 508A, CSA C22.2 No.142-M90

Key Features

1. High-Performance Real-Time Processing
   • Equipped with a high-speed industrial processor (up to 400 MHz) to execute complex excitation control algorithms, ensuring precise, low-latency regulation of generator excitation voltage, current, and power.
   • Large expandable DRAM and L2 cache support data-intensive operations and real-time system responsiveness.
2. Dual Redundant Communication
   • Dual 10BaseT Ethernet ports enable redundant network connectivity, eliminating single points of failure and ensuring uninterrupted data exchange with SCADA, HMI, and GE Toolbox software.
   • Dual RS-232 serial interfaces support direct connection to field devices, PLCs, and diagnostic tools, facilitating flexible protocol integration.
3. Robust Non-Volatile Storage
   • CompactFlash memory stores firmware, configuration parameters, and operational data without battery backup, preventing data loss during power outages and simplifying maintenance.
   • Flash BIOS enables fast, reliable system boot and firmware updates.
4. Integrated System Control & Protection
   • Executes core excitation system functions: voltage/current/power regulation, overvoltage/undervoltage protection, and generator synchronization control.
   • Real-time monitoring of excitation parameters and alarm handling enhances system safety and reliability.
5. Compact & Rugged Industrial Design
   • 2-slot VME form factor optimizes rack space and simplifies installation in standard EX2100 and Innovation Series cabinets.
   • Ruggedized components and wide operating temperature range ensure durability in harsh industrial environments (power plants, factories).
   • On-board LED indicators (OK, ACTIVE, ENET, FLASH) provide real-time status monitoring for power, communication, and fault conditions.
6. Seamless Integration & Diagnostics
   • Fully compatible with GE EX2100 excitation control system and Innovation Series drives, supporting simplex/redundant thyristor/regulator control backplanes.
   • Integrates with GE Toolbox software for intuitive configuration, real-time diagnostics, and predictive maintenance, reducing on-site service requirements.

Application Scenarios

• Power Generation (Primary Application)
  • Generator Excitation Control: Regulates excitation systems for gas, steam, and hydro turbines in combined-cycle, thermal, and hydroelectric power plants, ensuring stable generator output and grid synchronization.
  • EX2100 System Master Control: Acts as the central controller for GE EX2100 excitation systems, managing data flow, protection logic, and communication with plant-wide DCS.
• Industrial Automation & Drives
  • Innovation Series Drive Control: Provides advanced control for industrial drive assemblies in oil/gas, chemical, and metallurgical industries, supporting high-precision motor control and process automation.
  • Distributed Control Systems (DCS): Integrates with plant DCS to enable seamless data exchange between excitation systems, turbines, and other critical equipment.
• Process Industries
  • Oil & Gas: Controls turbine-driven compressors and pumps in refineries, pipelines, and LNG facilities, ensuring reliable excitation and precise process control.
  • Chemical & Petrochemical: Regulates generator excitation for power-intensive processes (e.g., reactors, distillation columns), enhancing operational efficiency and safety.
  • Metallurgy & Mining: Supports generator and drive control in steel mills, mines, and heavy industrial facilities, withstanding harsh conditions and ensuring continuous operation。
