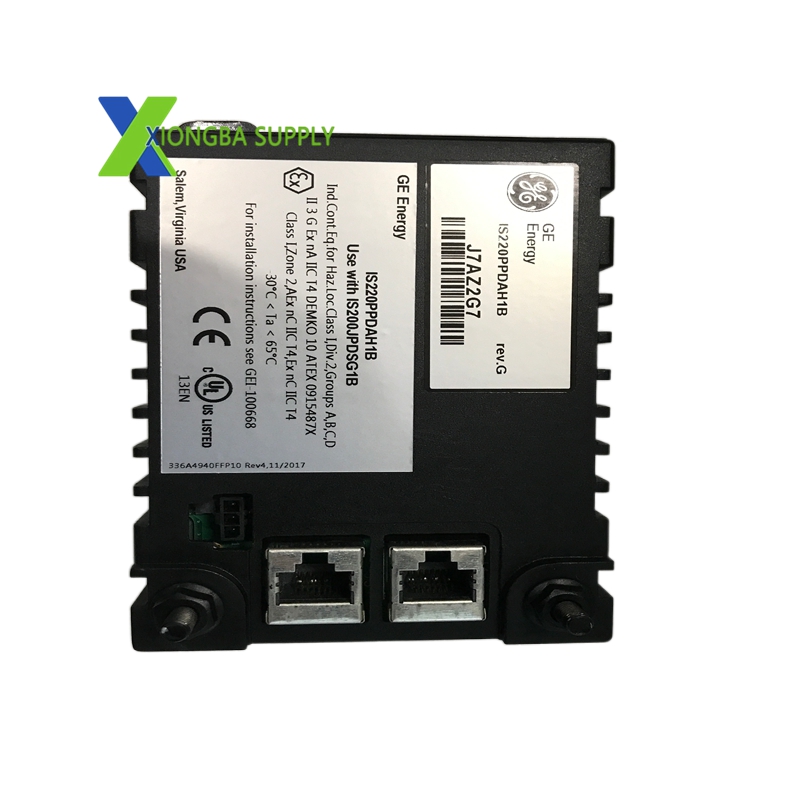

GE IS220PPDAH1B – Power Distribution Feedback I/O Pack (PPDA)

Technical Specifications

• Manufacturer: General Electric (GE Energy)
• Model: IS220PPDAH1B
• Series: Speedtronic Mark VIe (MKVIe) Control System
• Type: Power Distribution Feedback I/O Pack
• Compatibility: JPDS, JPDC, JPDM, and JPDG power distribution boards
• Input Voltage: 24 VDC (nominal)
• Output Voltage: 28 VDC
• Power Consumption: Max 15 W
• Communication: Ethernet (IONet), 100 Mbps
• Diagnostic Signals: 2×115/230 VAC analog feedbacks, local ground signal, 6×fused AC inputs
• Self-Diagnostics: 5 built-in diagnostic tests for operational integrity
• Mounting: Directly mountable on JPDS/JPDC/JPDM boards; ribbon cable expandable
• Dimensions (L×W×H): 160 mm × 80 mm × 32 mm
• Weight: 0.2 kg (unit only)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Coating: Conformal coated for harsh environment protection
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Power Distribution System Interface
   • Acts as a dedicated bridge between JPDB/JPDF/JPDE power boards and the Mark VIe controller.
   • Conditions and processes low-level feedback signals into Ethernet-compatible data for real-time monitoring.
2. Comprehensive Signal Monitoring
   • Captures 115/230 VAC analog feedbacks, ground fault signals, and fused AC circuit status.
   • Enables precise tracking of power distribution health, including voltage, current, and fault conditions.
3. Robust Self-Diagnostics & Fault Detection
   • Performs five automated self-diagnostic tests to validate hardware and communication integrity.
   • Integrates with JPDE boards for ground fault detection, ensuring early warning of electrical faults.

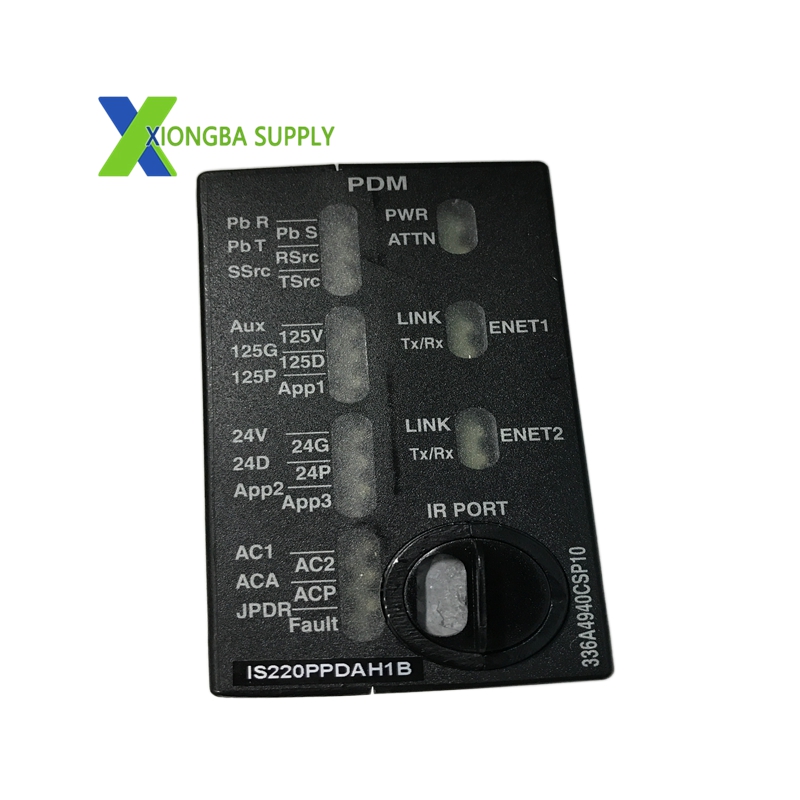

   • On-board LED indicators display real-time status (power, communication, faults).
4. High-Speed Ethernet Communication
   • Utilizes 100 Mbps IONet Ethernet for seamless data exchange with the Mark VIe controller.
   • Supports remote monitoring and control, allowing operators to address issues without physical access.
5. Compact & Rugged Industrial Design
   • Lightweight, compact form factor for easy integration into existing Mark VIe cabinets.
   • Conformal coating and wide temperature range ensure reliability in extreme power plant environments.
   • Hot-swappable compatible for maintenance without system shutdown.

Application Scenarios

• Power Generation (Primary Application)
  • Gas Turbine Control: Monitors power distribution for ignition systems, fuel valves, and auxiliary equipment in combined-cycle plants.
  • Steam Turbine Control: Tracks AC/DC power distribution for pumps, fans, and control circuits in thermal power stations.
  • Hydro Turbine Control: Ensures reliable power monitoring for wicket gate actuators and excitation systems in hydroelectric plants.
• Industrial Automation & Process Industries
  • Oil & Gas: Controls power distribution for turbine-driven compressors and pumps in refineries and LNG facilities.
  • Chemical & Petrochemical: Monitors critical power circuits for reactors, distillation columns, and safety systems.
  • Critical Infrastructure: Used in steel mills, paper plants, and data centers requiring high-reliability power monitoring.
• Distributed Control Systems (DCS)
  • Integrates with GE Mark VIe DCS to provide end-to-end visibility of power distribution across plant-wide automation systems.
  • Supports predictive maintenance by analyzing historical power data and fault trends。
