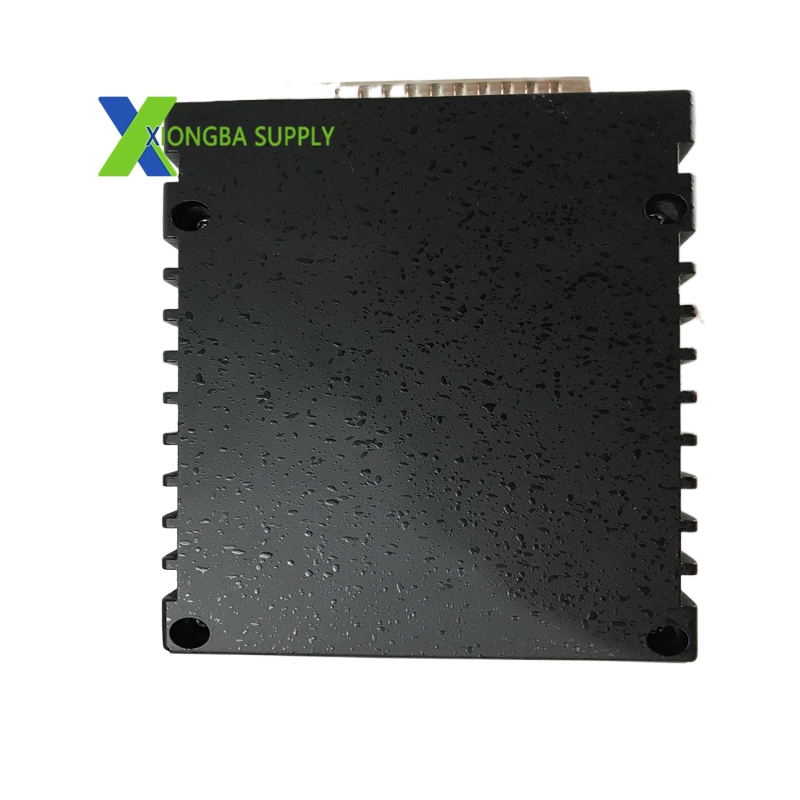

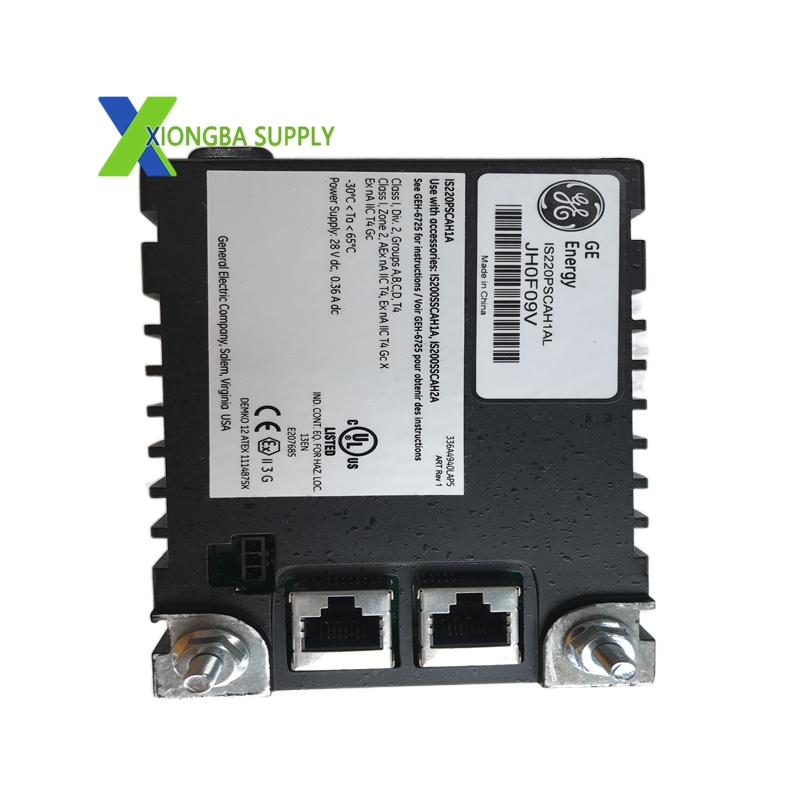

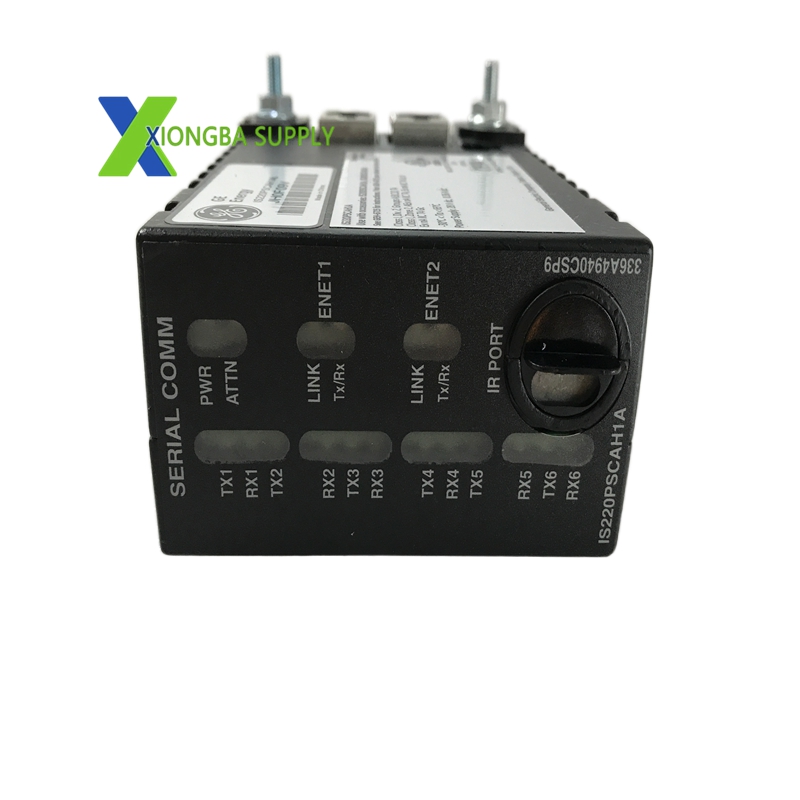

GE IS220PSCAH1A – Serial Modbus Communication I/O Pack

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS220PSCAH1A
• Series: Mark VIe/VIeS Control System
• Processor: 32-bit RISC processor
• Memory: 64 MB RAM, 128 MB non-volatile memory
• Communication Ports:
  • 6 × configurable serial channels (RS-232, RS-422, RS-485 half-duplex)
  • 2 × 100 Mbps Ethernet (RJ45) ports (simplex networks only)
• Supported Protocols: Modbus RTU/ASCII, Ethernet Modbus Master
• Power Supply: 24 VDC (28 VDC tolerant), 30 W max power consumption
• Dimensions (H×W×D): 3.25 in × 1.65 in × 4.78 in (82.5 mm × 41.9 mm × 121.4 mm)
• Weight: 0.25 lb (0.11 kg)
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Mounting: DIN-rail compatible
• Connector: 37-pin D-sub (serial I/O)

Key Features

1. Multi-Channel Serial Communication
   • Six independently configurable serial channels support RS-232, RS-422, and RS-485 half-duplex interfaces, accommodating diverse field device connections.
   • Each channel supports Modbus RTU/ASCII with configurable data bits (7/8), parity (even/odd/none), and station addressing.
2. Dual Ethernet Network Integration
   • Two 100 Mbps Ethernet ports enable connectivity to up to two separate I/O Ethernet networks, facilitating data routing between the Mark VIe controller and serial devices.
   • Supports Ethernet Modbus Master protocol for seamless integration with SCADA and HMI systems.
3. Robust Industrial Design
   • Compact, low-profile form factor with a rugged metal enclosure ensures resistance to shock, vibration, and electromagnetic interference (EMI) in harsh industrial environments.
   • DIN-rail mounting simplifies installation in standard control cabinets, reducing setup time.
4. Comprehensive Self-Diagnostics & Protection
   • On-board diagnostics monitor analog inputs (position, pressure, temperature) with configurable high/low thresholds, triggering alarms for fault conditions.
   • Built-in short-circuit and overload protection safeguard the module and connected devices from electrical damage.
5. High-Speed Data Processing
   • 32-bit RISC processor and ample memory enable fast data processing and low-latency communication, critical for real-time turbine control and monitoring.

Application Scenarios

• Power Generation (Core Application)
  • Gas/Steam Turbine Control: Connects the Mark VIe controller to serial-based sensors, actuators, and HMIs for turbine startup, speed regulation, load control, and overspeed protection.
  • Power Plant Monitoring: Facilitates data exchange between the control system and serial devices (e.g., flow meters, pressure transmitters) for real-time plant-wide monitoring.
• Oil & Gas Industry
  • Refineries & LNG Facilities: Supports serial communication for turbine-driven compressors, pumps, and process analyzers, ensuring safe and efficient operation.
  • Pipeline Monitoring: Enables data transmission between remote pumping stations and central control rooms via serial Modbus.
• Process Industries
  • Chemical & Petrochemical: Integrates with serial-based process instruments (e.g., pH meters, level sensors) for precise process control and data logging.
  • Water Treatment Plants: Connects to serial monitoring devices for water quality analysis, pump control, and chemical dosing regulation.
• Industrial Automation
  • Manufacturing & Processing: Used in automotive, pulp & paper, and pharmaceutical plants to connect PLCs, HMIs, and serial I/O devices for assembly line and process automation.
  • Distributed Control Systems (DCS): Acts as a serial-to-Ethernet gateway in GE Mark VIe DCS, unifying communication across disparate field devices。
