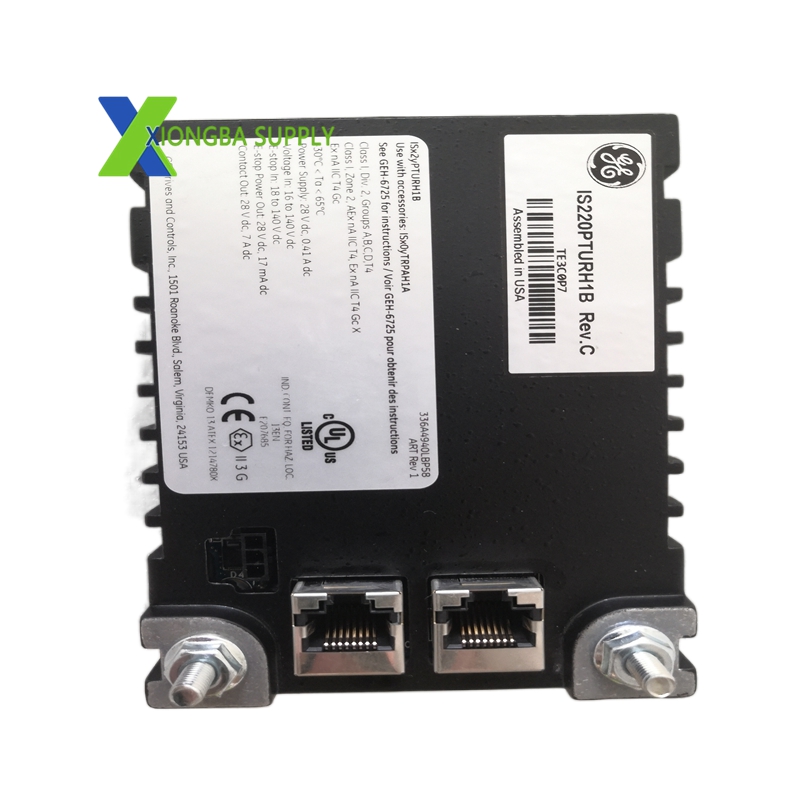

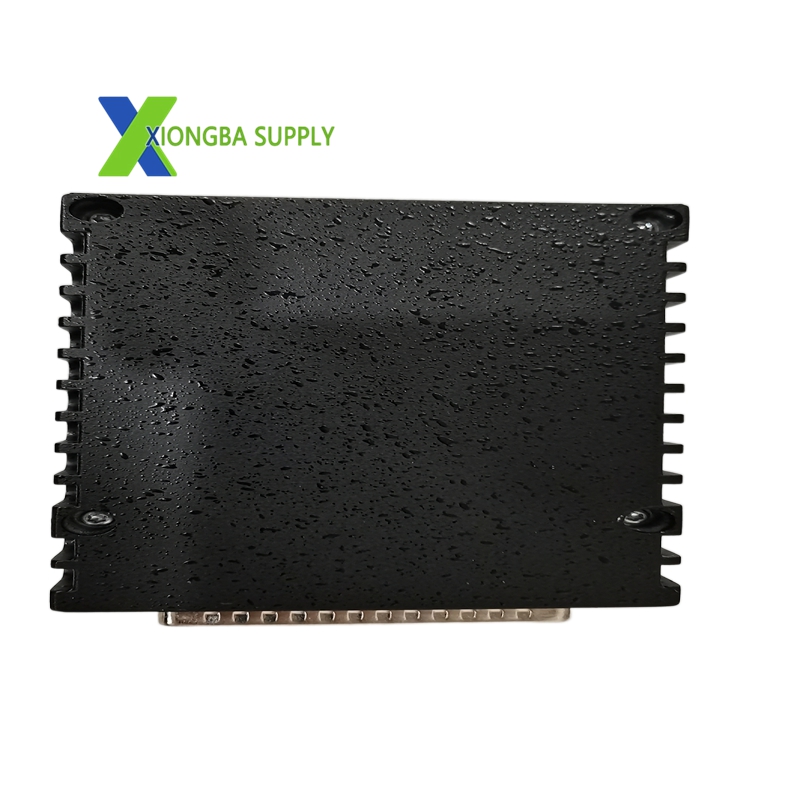

GE IS220PTURH1B – Turbine-Specific Primary I/O Trip Pack (PTUR)

Technical Specifications

• Manufacturer: General Electric (GE Energy)
• Model: IS220PTURH1B (Revision B)
• Series: Speedtronic Mark VIe / Mark VIeS Control Systems
• Functional Type: Primary Turbine Protective I/O Trip Pack (PTUR)
• Power Supply: 28–32 VDC (nominal); 12–48 VDC operating range
• I/O Channel Configuration:
  • 8 × Flame Detector Inputs
  • 1 × Shaft Voltage Input
  • 1 × Current Measurement Input
  • 1 × Bus Voltage Input
  • 3 × Solid-State Trip Outputs
• Communication: Dual 100 Mbps Full-Duplex Ethernet Ports (RJ-45)
• Isolation: Optical isolation for all critical I/O channels
• PCB Coating: Conformal coated for harsh environment protection
• Dimensions (L×W×H): 152 mm × 105 mm × 40 mm
• Weight: 0.5 kg (approximate)
• Operating Temperature: -10°C to +60°C (14°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Control Modes: Simplex, Triple Modular Redundant (TMR)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Primary Turbine Trip & Protection
   • Executes hardware-based primary trip logic for overspeed, flame failure, vibration, and electrical fault conditions.
   • Delivers 2-RPM sensitivity for zero-speed detection, ensuring accurate turbine stop verification.
   • Provides 3 dedicated trip outputs for emergency shutdown (ESD) actuation.
2. Redundant High-Speed Communication
   • Dual 100 Mbps Ethernet ports support network redundancy, eliminating single points of communication failure.
   • Enables real-time, deterministic data exchange with the Mark VIe controller and remote I/O racks.
3. Comprehensive Signal Conditioning & Monitoring
   • Integrates 8 flame detector inputs for continuous combustion monitoring in gas turbines.
   • Processes shaft voltage, current, and bus voltage signals for electrical system health monitoring.
   • High-accuracy signal conversion (±0.1%FS) ensures precise data acquisition.
4. Rugged Industrial Reliability
   • Conformal-coated PCB and ruggedized components withstand extreme temperatures, vibration, and electromagnetic interference (EMI).
   • Compact, modular design enables easy installation, hot-swap replacement, and maintenance.
5. Seamless Mark VIe System Integration
   • Native compatibility with GE Speedtronic Mark VIe/VIeS platforms supports auto-reconfiguration during module replacement.
   • Works in simplex or TMR architectures to match system redundancy requirements.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control & Protection: Monitors flame status, speed, and vibration; triggers emergency trips for overspeed or flame failure in combined-cycle power plants.
  • Steam Turbine Systems: Oversees shaft voltage, current, and thermal stress parameters; protects against electrical faults and overspeed in thermal power stations.
  • Hydro Turbine Installations: Provides zero-speed detection and overspeed protection for turbine-generator units in hydroelectric plants.
• Process Industries
  • Oil & Gas: Ensures safe operation of turbine-driven compressors and pumps in refineries, LNG facilities, and pipeline networks.
  • Chemical & Petrochemical: Protects turbine-driven process equipment (e.g., reactors, blowers) from critical faults during continuous manufacturing.
• Industrial Automation
  • Critical Infrastructure: Deployed in steel mills, paper plants, and pharmaceutical facilities with high-reliability turbine-driven processes.
  • Distributed Control Systems (DCS): Integrates with plant-wide DCS to deliver unified turbine protection and process control in large-scale industrial complexes。
