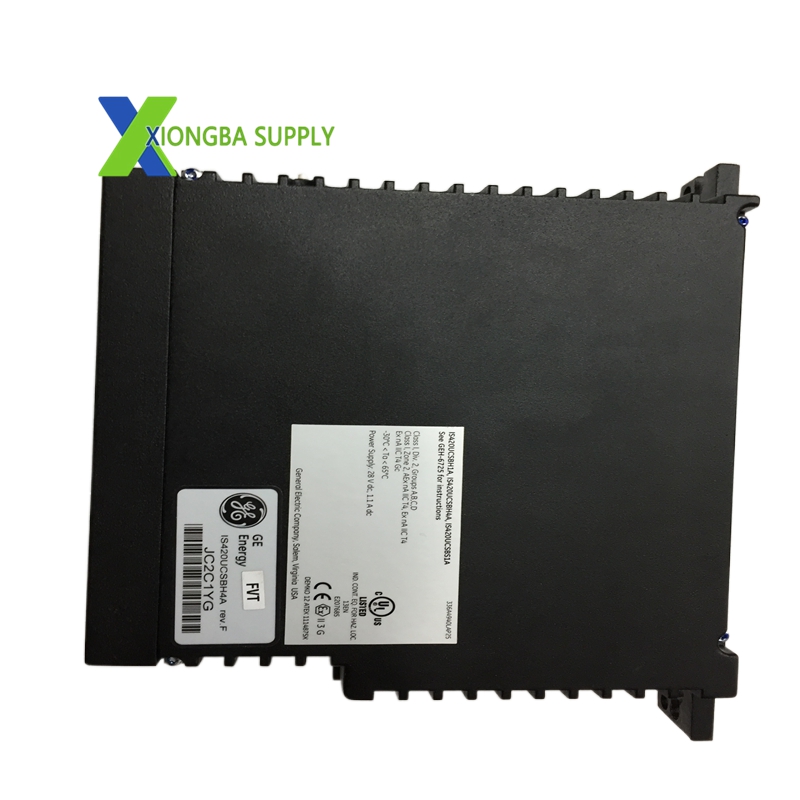

GE IS420UCSBH3A – UCSB Controller Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: IS420UCSBH3A
• Series: Speedtronic Mark VIe / Mark VIeS Control Systems
• Processor: Intel EP80579, 1200 MHz (quad-core)
• Operating System: QNX Neutrino (real-time multitasking)
• Memory: 1 GB RAM, 2 GB Flash
• Communication Ports: 4 × IONet (fiber-optic Ethernet, 100 Mbps); Modbus TCP/IP, Ethernet/IP support
• Power Supply: 18–30 VDC (typical 24/28 VDC), max 1.5 A
• Power Consumption: 12 W (typical); 28.7 W (peak)
• Dimensions (H×W×D): 162.6 mm × 205.7 mm × 35.6 mm (6.4 in × 8.1 in × 1.4 in)
• Weight: 1.3 kg (2.9 lb)
• Operating Temperature: 0°C to +65°C (32°F to 149°F)
• Protection Class: IP67 (dust/water resistant)
• Safety Certifications: SIL 2/3 functional safety; ATEX Zone 2, Group IIC; CE, UL, CSA
• Cooling: Fanless, battery-free design

Key Features

1. High-Speed Quad-Core Processing
   • 1200 MHz Intel EP80579 quad-core CPU delivers exceptional throughput for complex control algorithms, interlocking, and protection logic.
   • QNX Neutrino OS ensures deterministic real-time response, critical for turbine speed regulation and overspeed protection.
2. Decentralized, Fault-Tolerant Architecture
   • Controller operates independently of local I/O; connects to all I/O networks to access global data, eliminating single-point input failure.
   • Redundant IONet ports enable seamless data routing and validation, supporting hot-swap maintenance without system shutdown.
3. Robust IONet Communication
   • Four dedicated 100 Mbps fiber-optic IONet ports for EMI-immune communication with remote I/O packs.
   • Supports GE private protocols and third-party integration via Modbus TCP/IP and Ethernet/IP.
4. Harsh Environment Reliability
   • IP67-rated enclosure with fanless, battery-free design minimizes wear and simplifies deployment.
   • Wide temperature tolerance (0°C to +65°C) and vibration resistance suit extreme power plant and industrial conditions.
5. Comprehensive Diagnostics & Monitoring

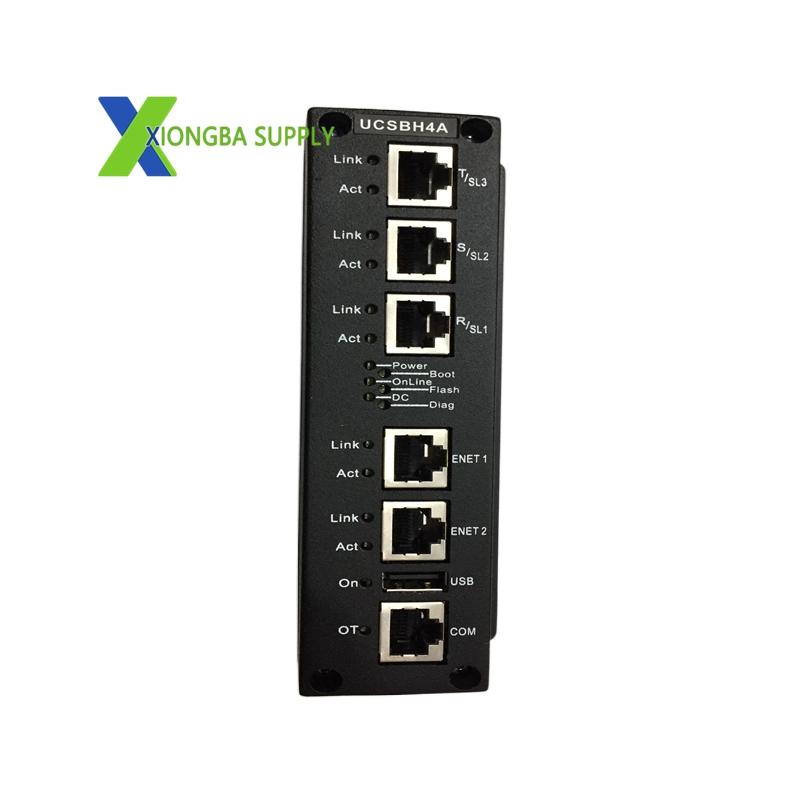

   • Front-panel LEDs for Power, Boot, Online, Diagnostic, and Over-Temperature (OT) status.
   • Remote diagnostics via Mark VIe system enable proactive maintenance and rapid fault resolution.

Application Scenarios

• Power Generation (Primary Use)
  • Gas Turbine Control: Executes startup, speed control, synchronization, and overspeed protection in combined-cycle plants.
  • Steam Turbine Control: Manages load, pressure, and thermal stress in thermal power stations.
  • Hydro Turbine Control: Regulates speed, water level, and flow in hydroelectric facilities.
• Process Industries
  • Oil & Gas: Controls turbine-driven compressors/pumps in refineries, pipelines, and LNG plants.
  • Chemical & Petrochemical: Enables precise control of reactors, distillation columns, and other turbine-driven processes.
• Industrial Automation
  • Critical Infrastructure: Deployed in steel mills, paper plants, and pharmaceutical facilities requiring high-reliability turbine control.
  • Distributed Control Systems (DCS): Integrates with GE Mark VIe DCS to bridge turbine controls and plant-wide automation。
