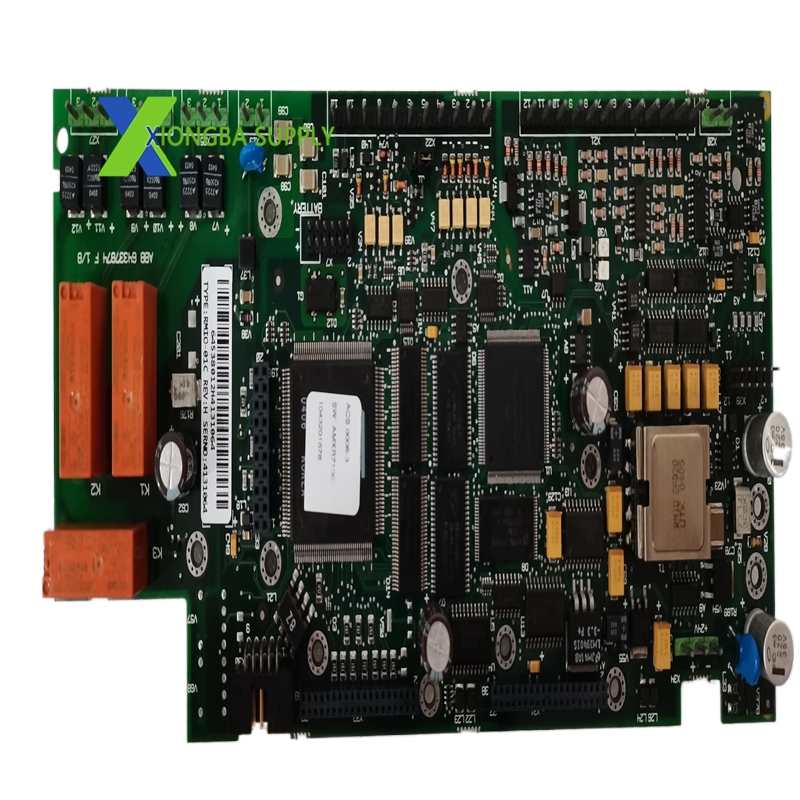

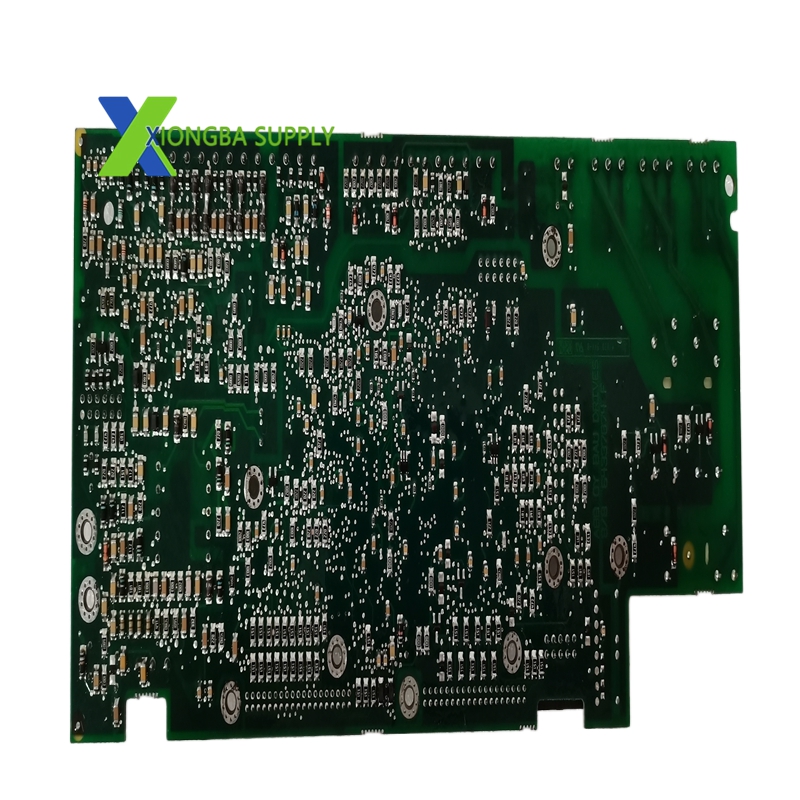

GE RMIO-01C-Y – Remote Input/Output Module

Technical Specifications

• Manufacturer: ABB
• Model: RMIO-01C-Y
• Type: Compact Remote I/O Module
• Digital Inputs: 8 channels (24 VDC logic)
• Analog Inputs: 4 channels, configurable 4–20 mA or 0–10 V
• Analog Outputs: 4 channels, configurable 4–20 mA or 0–10 V
• Relay Outputs: 4 channels (dry contact, 250 VAC / 30 VDC rated)
• Communication Interface: RS-485 (supports Modbus RTU protocol)
• Power Supply: 24 VDC (±10% tolerance)
• Power Consumption: ≤5 W
• Dimensions (W×D×H): 167 mm × 100 mm × 22.5 mm
• Weight: 0.23 kg (0.51 lbs)
• Operating Temperature: -25°C to +55°C (-13°F to 131°F)
• Storage Temperature: -55°C to +85°C (-67°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Shock Resistance: 15 g, 11 ms duration
• Vibration Resistance: 2 g, 10–500 Hz frequency range
• Protection Class: IP67 (dust-tight and waterproof)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Multi-Channel I/O Integration
   • Combines 8 digital inputs, 4 analog inputs, 4 analog outputs, and 4 relay outputs in one compact module, reducing system complexity and wiring costs.
   • Analog channels support software configuration for 4–20 mA current or 0–10 V voltage signals, adapting to diverse sensor and actuator types.
2. Robust RS-485 Communication
   • Equipped with an RS-485 interface supporting Modbus RTU, ensuring reliable, high-speed data exchange over long distances (up to 1,200 meters).
   • Multi-drop network capability allows connecting multiple RMIO-01C-Y modules to a single controller, optimizing network architecture.
3. Harsh Environment Durability
   • IP67-rated enclosure provides full protection against dust, water splashes, and moisture, suitable for outdoor and industrial floor deployment.
   • Wide operating temperature range (-25°C to +55°C) and resistance to shock (15 g) and vibration (2 g) ensure stable performance in extreme conditions.
4. Simplified Installation & Maintenance
   • Compact, lightweight design (167×100×22.5 mm, 0.23 kg) enables easy mounting on DIN rails or control panels.
   • On-board LED indicators for power, communication, and I/O status allow real-time monitoring and quick fault diagnosis.
   • Hot-swappable functionality supports replacement without system shutdown, minimizing maintenance downtime.
5. High Reliability & Fault Protection
   • Built-in overvoltage, overcurrent, and short-circuit protection safeguards the module and connected devices from electrical damage.
   • Galvanic isolation between I/O channels and communication ports reduces electrical interference and enhances system safety.

Application Scenarios

• Process Industries
  • Oil & Gas: Monitoring and controlling pressure, temperature, and flow sensors in pipelines, refineries, and offshore platforms.
  • Chemical & Petrochemical: Integrating pH sensors, level transmitters, and control valves for reactor and distillation column automation.
  • Water & Wastewater: Managing pump stations, flow meters, and level sensors for water treatment and distribution systems.
• Manufacturing & Automation
  • Packaging Machinery: Connecting photoelectric sensors, encoders, and solenoid valves for automated packaging line control.
  • Assembly Lines: Monitoring limit switches, proximity sensors, and motor drives for precise production line synchronization.
  • Material Handling: Controlling conveyors, cranes, and hoists via digital and analog I/O integration.
• Infrastructure & Building Automation
  • HVAC Systems: Regulating temperature, humidity, and airflow sensors for commercial and industrial building climate control.
  • Energy Management: Monitoring power meters, energy sensors, and backup generators for facility energy optimization.
• Power & Utilities
  • Power Generation: Interfacing with temperature, pressure, and vibration sensors in gas turbines, steam turbines, and generator systems.
  • Renewable Energy: Controlling solar panel arrays, wind turbines, and battery storage systems for efficient power conversion and grid integration.
