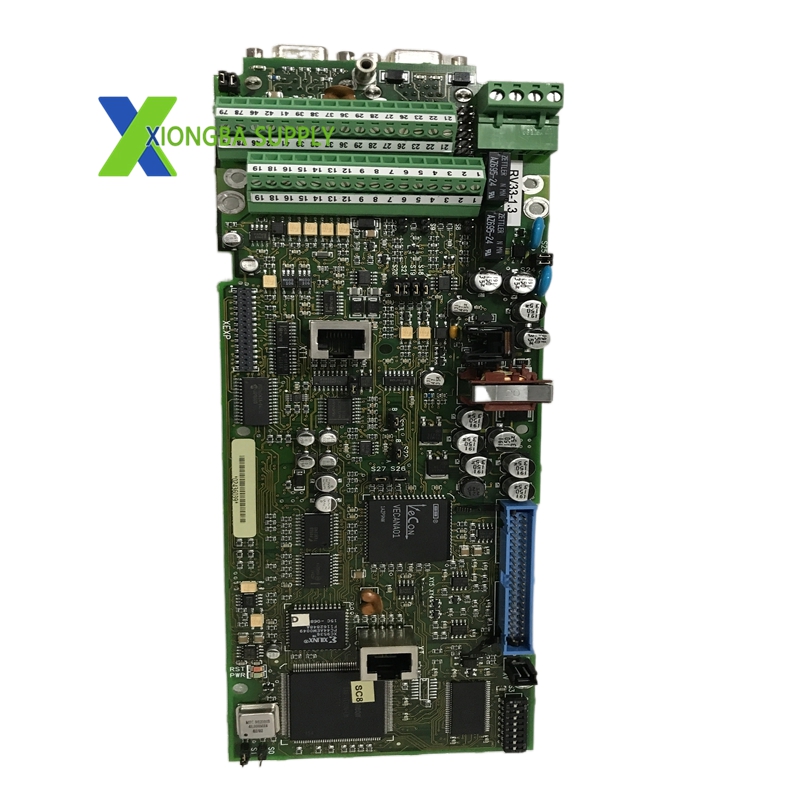

GE RV33-1 – GE Drive Control Power Board

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: RV33-1
• Series: Industrial Control & Drive System
• Module Type: Drive Control Power Board
• Compatibility: GE PLC systems, GE variable-frequency drives (VFDs)
• Input Voltage: 120V/240V AC, 50/60Hz
• Output Voltage: 24 VDC (regulated)
• Current Rating: 1 A (continuous)
• Control Modes: On/Off, Proportional, Integral, Derivative (PID)
• Communication Interface: RS485 (for system monitoring & configuration)
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Dimensions (L×W×H): 100 mm × 80 mm × 30 mm
• Weight: 0.5 kg (approximate)
• Certifications: CE, UL, RoHS (industrial safety & environmental compliance)

Key Features

1. Precision Power Regulation & Drive Control
   • Converts AC input to stable 24 VDC output for GE drive control circuits, ensuring consistent drive performance.
   • Supports PID control algorithms for precise motor speed, torque, and position regulation in closed-loop systems.
2. Robust Industrial-Grade Design
   • Ruggedized components and compact form factor withstand vibration, dust, and temperature fluctuations in harsh factory environments.
   • Durable PCB layout with reinforced solder joints and corrosion-resistant coating ensures long-term reliability.
3. Integrated Fault Protection & Diagnostics
   • Built-in overvoltage, overcurrent, and short-circuit protection safeguards the board and connected drives from damage.
   • On-board LED indicators display real-time status (power, fault, communication) for quick troubleshooting.
4. Seamless System Integration
   • Compatible with GE PLCs and VFDs, enabling easy integration into existing GE automation ecosystems.
   • RS485 interface supports remote monitoring, parameter configuration, and data logging via industrial networks.
5. High Efficiency & Low Maintenance
   • High-efficiency power conversion minimizes energy loss and reduces heat generation.
   • Modular design allows for quick replacement without system shutdown, reducing maintenance downtime.

Application Scenarios

• Industrial Automation (Core Application)
  • Manufacturing Lines: Controls GE drives for conveyor systems, CNC machines, robotics, and assembly line equipment in automotive, electronics, and consumer goods factories.
  • Process Control: Regulates motor speed and torque for pumps, fans, compressors, and mixers in chemical, pharmaceutical, and food & beverage processing plants.
• Energy Sector
  • Power Generation: Manages GE drives for auxiliary systems (e.g., cooling fans, water pumps) in thermal, hydro, and renewable power plants.
  • Oil & Gas: Controls drive systems for drilling equipment, pipeline pumps, and refinery machinery in upstream and downstream operations.
• Transportation & Infrastructure
  • Material Handling: Powers GE drives for cranes, hoists, and forklifts in warehouses, ports, and logistics centers.
  • Building Automation: Regulates HVAC (heating, ventilation, air conditioning) fan and pump drives in commercial buildings, airports, and shopping malls.
