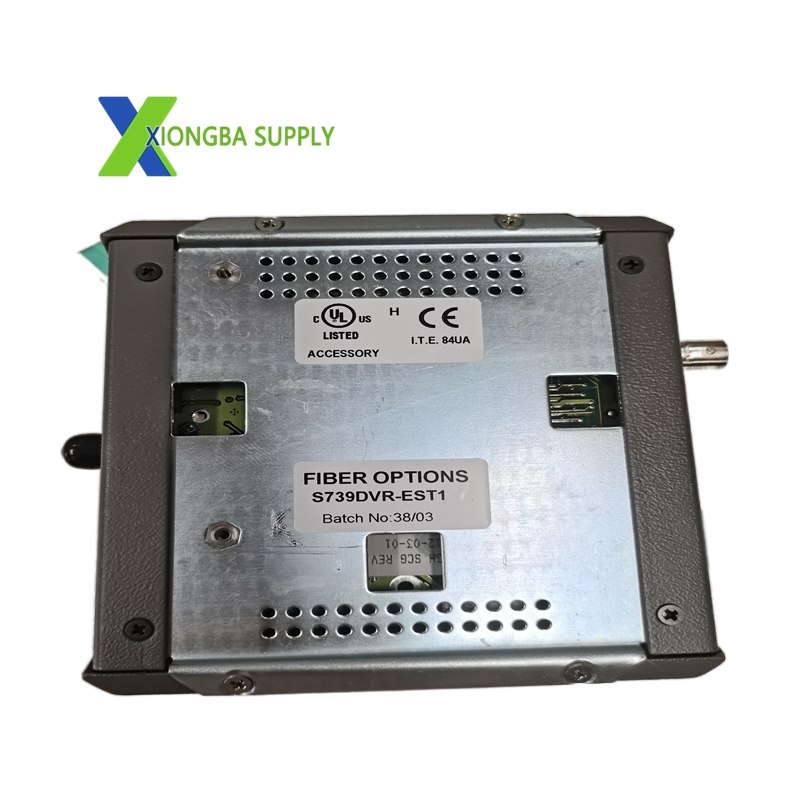

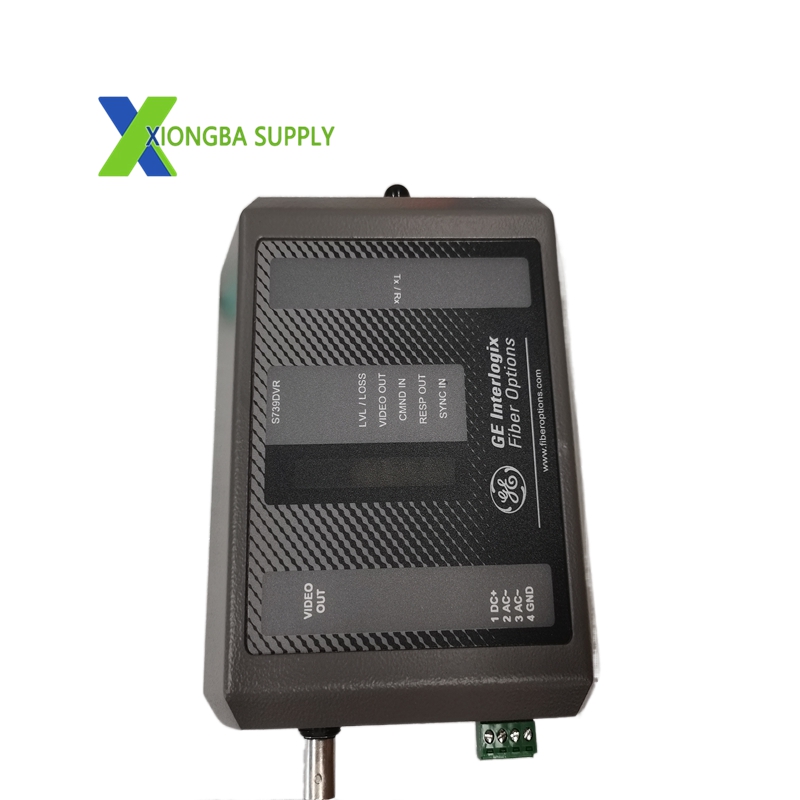

GE S739DVR0 – Fiber Optic Video Receiver (Multimode Fiber)

Technical Specifications

• Manufacturer: GE Security (Interlogix)
• Model: S739DVR0
• Product Type: 1-Channel Multimode Fiber Optic Video Receiver
• Fiber Compatibility: Multimode fiber (50/125 µm, 62.5/125 µm)
• Video Format: Supports NTSC, PAL, EIA, CCIR standards
• Video Resolution: 800 TV lines
• Video Signal: 1.0 Vp-p composite, 75 Ω impedance
• Data Communication: Two-way control/response/Genlock data
• Data Protocol: Compatible with major up-the-coax control systems (American Dynamics, Pelco, Panasonic, etc.)
• Transmission Distance: Up to 11 miles (18 km)
• Optical Wavelength: 850 nm (multimode)
• Receiver Sensitivity: -28 dBm
• Power Supply: 24 VAC or 13.5 VDC (regulated)
• Power Consumption: 6 W max
• Dimensions (L×W×H): 127 mm × 122 mm × 38 mm (5.0” × 4.8” × 1.5”)
• Weight: 0.55 kg (1.21 lbs)
• Operating Temperature: -40°C to +75°C (-40°F to 167°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety & EMC compliance)

Key Features

1. Dual Signal Transmission
   • Transmits one-way analog video and two-way control data over a single multimode fiber.
   • Supports Genlock synchronization for multi-camera system alignment.
2. High-Definition Video Performance
   • Delivers 800 TV lines resolution with >54 dB signal-to-noise ratio (SNR).
   • Maintains stable video quality with <3° differential phase and <3% differential gain.
3. Broad Protocol Compatibility
   • Works with all major up-the-coax control systems (Pelco, Panasonic, American Dynamics, etc.).
   • Supports PTZ camera control, alarm response, and remote configuration.
4. Rugged & Compact Design
   • Heavy-duty metal enclosure for industrial-grade durability.
   • Compact form factor for easy installation in cabinets or wall-mount setups.
   • Solid-state short-circuit protection for enhanced reliability.
5. Smart Diagnostics & Monitoring
   • SMARTS diagnostics technology for real-time system health monitoring.
   • On-board LED indicators for power, video signal, data communication, and fault status.
   • Enables proactive maintenance and quick troubleshooting.

Application Scenarios

• Security & Surveillance
  • Commercial Buildings: High-rise offices, shopping malls, and hotels for long-distance video transmission.
  • Critical Infrastructure: Airports, seaports, railway stations, and power plants for reliable surveillance.
  • Perimeter Security: Industrial parks, prisons, and military bases for long-range video monitoring.
• Industrial Automation
  • Manufacturing Plants: Production line monitoring in factories with high electromagnetic interference (EMI).
  • Oil & Gas Facilities: Refineries, pipelines, and offshore platforms for explosion-proof video transmission.
• Transportation Systems
  • Traffic Monitoring: Highway tunnels, bridges, and urban traffic management systems.
  • Public Transit: Subways, trains, and buses for real-time passenger surveillance.
• Government & Public Services
  • Law Enforcement: Police stations, courtrooms, and correctional facilities for secure video communication.
  • Education & Healthcare: University campuses, hospitals, and research institutions for long-distance video monitoring。
