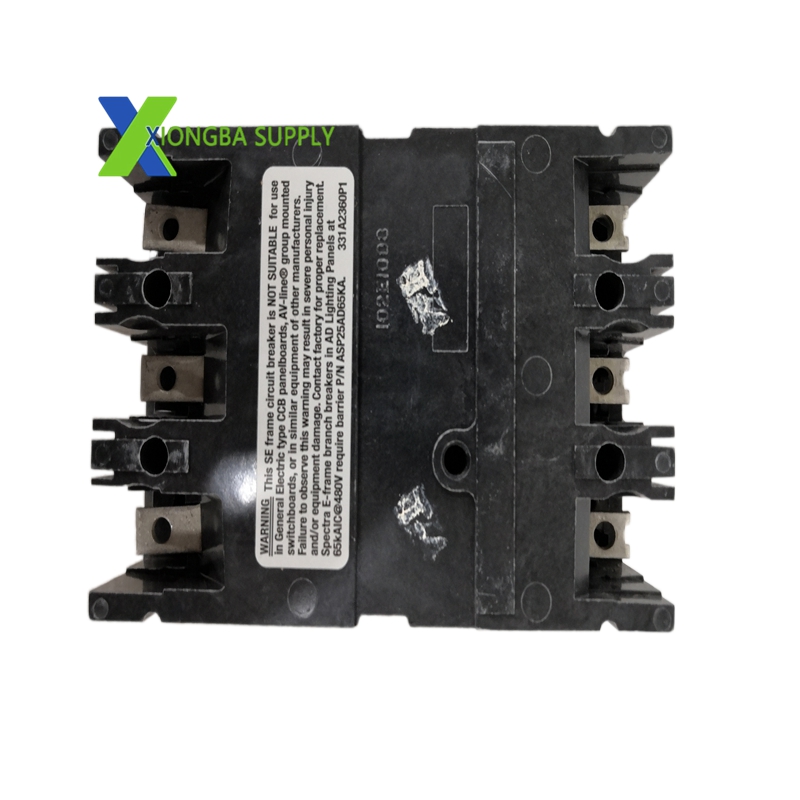

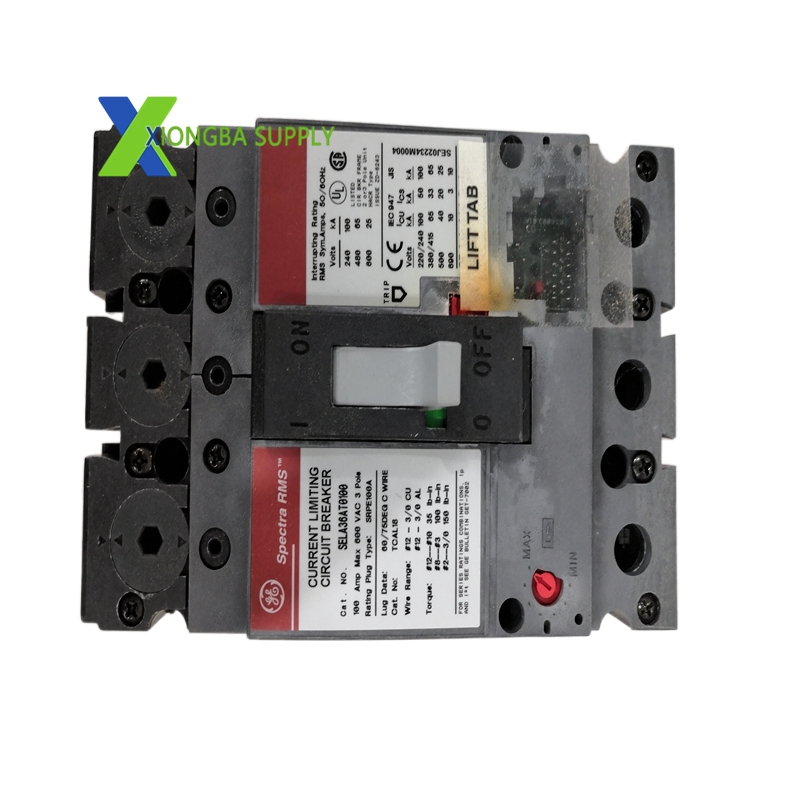

GE SELA36AT0100 – Molded Case Circuit Breaker (MCCB), Spectra RMS Series

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: SELA36AT0100
• Series: Spectra RMS
• Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: E (SE150)
• Number of Poles: 3
• Rated Current: 100 A
• Rated Voltage: 600 VAC (max 690 VAC)
• Interrupting Rating (AIC):
  • 100 kA @ 240 VAC (UL)
  • 65 kA @ 480 VAC (UL)
  • 25 kA @ 600 VAC (UL)
  • 100 kA @ 220–240 VAC (IEC)
  • 65 kA @ 380–415 VAC (IEC)
  • 40 kA @ 500 VAC (IEC)
  • 5 kA @ 690 VAC (IEC)
• Trip System: Electronic solid-state RMS sensing, LSI (Long-Time, Short-Time, Instantaneous)
• Mounting Type: Bolt-on
• Wire Size: 12 to 3/0 AWG (copper/aluminum)
• Dimensions (W×D×H): 4.12 in × 3.38 in × 6.31 in (104.6 mm × 85.9 mm × 160.3 mm)
• Weight: 5 lbs (2.3 kg)
• Certifications: UL, CSA, HACR-rated
• Operating Temperature: -20°C to +60°C (-4°F to 140°F)
• Relative Humidity: 5%–95% (non-condensing)

Key Features

1. Advanced Solid-State Trip Technology
   • Digital RMS sensing accurately measures both sinusoidal and non-sinusoidal currents, minimizing nuisance tripping in harmonic-rich environments.
   • LSI protection (Long-Time, Short-Time, Instantaneous) offers adjustable settings for precise coordination with downstream devices.
   • Interchangeable trip units allow for easy rating changes without replacing the entire breaker.
2. High Interrupting Capacity & Current Limiting
   • Withstand high fault currents up to 100 kA (at 240 VAC) to protect equipment and wiring from severe damage.
   • Current-limiting design quickly extinguishes arcs, reducing fault energy and minimizing damage to the electrical system.
3. Robust & Flexible Design
   • Compact E-frame size saves panel space while maintaining high performance.
   • Bolt-on mounting enables easy installation and removal in standard switchboards and panelboards.
   • Suitable for reverse feed applications, offering versatility in system design.
4. Comprehensive Safety & Compliance
   • UL and CSA certified for industrial safety and electromagnetic compatibility (EMC).
   • HACR-rated for use in heating, ventilation, air conditioning, and refrigeration (HVACR) systems.
   • Front-accessible rating plugs and trip adjustments simplify on-site configuration and maintenance.
5. Durability & Reliability
   • Rugged molded case construction withstands mechanical stress, vibration, and temperature fluctuations.
   • High-quality internal components ensure long-term reliability and reduced maintenance costs.

Application Scenarios

• Industrial Facilities
  • Manufacturing Plants: Protects motors, pumps, conveyors, and control panels in automotive, food and beverage, and pharmaceutical industries.
  • Power Distribution: Used in switchboards and distribution panels for three-phase systems in factories and processing plants.
  • Harmonic-Rich Environments: Ideal for facilities with variable frequency drives (VFDs), inverters, and other non-linear loads.
• Commercial Buildings
  • HVAC Systems: Provides reliable protection for large heating, ventilation, and air conditioning (HVAC) units in malls, hospitals, and office buildings.
  • Refrigeration Systems: Safeguards compressors and motors in cold storage warehouses and supermarkets.
  • Data Centers: Protects critical IT infrastructure and power distribution units (PDUs) in server rooms.
• Oil & Gas
  • Refineries & Petrochemical Plants: Used in motor control centers (MCCs) and process control systems for pumps, compressors, and heaters.
  • Offshore Platforms: Withstands harsh environmental conditions while protecting electrical equipment in drilling and production facilities.
• Renewable Energy
  • Solar & Wind Farms: Protects inverters, transformers, and grid connection equipment in large-scale renewable energy installations.
  • Battery Energy Storage Systems (BESS): Provides overcurrent and short-circuit protection for battery banks and power conversion systems.
• Infrastructure
  • Water & Wastewater Treatment Plants: Protects pumps, blowers, and control systems in municipal and industrial treatment facilities.
  • Transportation Hubs: Used in power distribution systems for airports, seaports, and railway stations.
