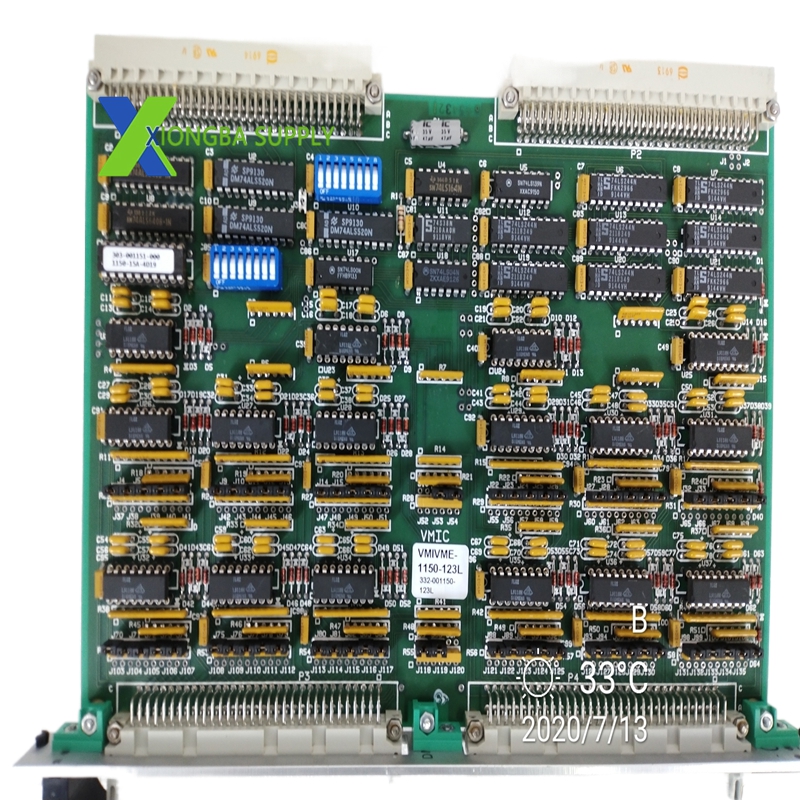

GE VMIVME-1150-123L – 64-Bit Optically Isolated Digital Input Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: VMIVME-1150-123L
• Form Factor: 6U double-height VMEbus board (compliant with VMEbus Revision C.1)
• Input Channels: 64 optically isolated digital inputs (organized as eight 8-bit registers)
• Input Voltage Levels: 5 VDC, 12 VDC, 24 VDC, or 48 VDC (configurable)
• Input Logic: Positive/negative true (jumper-selectable)
• Digital Filter: 16 jumper-selectable options (1.25 μs to 40.96 ms)
• VMEbus Interface: A16:D16/D08 (EO) slave, 1 KB contiguous byte address space
• Base Address: Configurable via on-board DIP switches (within 64 KB Short I/O space)
• Power Supply: +5 VDC @ 1.0 A (typical)
• Power Consumption: Max 4.6 W
• Dimensions (L×W×H): 233 mm × 160 mm × 20 mm
• Weight: 0.8 kg
• Operating Temperature: -20°C to +85°C (-4°F to 185°F)
• Storage Temperature: -40°C to +125°C (-40°F to 257°F)
• Shock/Vibration: 25 g (11 ms pulse) on all axes; compliant with MIL-STD-810
• Certifications: CE, UL, CSA, RoHS (industrial safety and EMC compliance)

Key Features

1. 64-Channel Optical Isolation
   • 64 independent optically isolated inputs eliminate electrical interference between field devices and the control system.
   • High-voltage isolation (up to 2,500 Vrms) protects against transient surges and ground potential differences.
2. Flexible Input Configuration
   • Multi-voltage compatibility (5/12/24/48 VDC) supports diverse field sensor and switch types.
   • Jumper-selectable positive/negative true logic adapts to various signal conventions.
   • 16 digital filter settings optimize signal integrity for fast or slow input transitions.
3. VMEbus Compliance & Integration
   • 6U double-height form factor fits standard VMEbus enclosures.
   • A16:D16/D08 slave interface ensures seamless compatibility with VMEbus-based CPUs and systems.
   • DIP-switch configurable base address enables easy system integration without firmware changes.
4. Robust Industrial Reliability
   • Wide operating temperature range (-20°C to +85°C) supports extreme industrial environments.
   • Ruggedized PCB and components withstand shock, vibration, and humidity (5%–95% non-condensing).
   • Built-In Test (BIT) functionality validates circuit integrity during power-up and operation.
5. Real-Time Monitoring & Diagnostics
   • Front-panel LED indicators display real-time input status and fault conditions for quick troubleshooting.
   • Supports remote monitoring and diagnostics via the VMEbus, enabling proactive maintenance.

Application Scenarios

• Industrial Automation & Process Control
  • Manufacturing Lines: Monitor limit switches, proximity sensors, and safety interlocks in automotive, electronics, and food processing plants.
  • Batch Processing: Track discrete events (valve status, pump operation) in chemical, pharmaceutical, and petrochemical facilities.
• Power Generation & Utilities
  • Power Plants: Monitor switchgear status, breaker positions, and alarm signals in thermal, hydro, and combined-cycle power stations.
  • Substation Automation: Collect digital status data from relays, transformers, and protection devices in high-voltage substations.
• Transportation & Infrastructure
  • Railway Systems: Monitor track sensors, signal lights, and door interlocks in train control and signaling systems.
  • Marine & Offshore: Detect switch and sensor status on ships, oil rigs, and coastal infrastructure (shock/vibration resistant).
• Aerospace & Defense
  • Ground Support Equipment: Monitor discrete signals in aircraft and missile testing systems.
  • Military Vehicles: Provide reliable input sensing in rugged military control systems (compliant with MIL-STD-810).
• Test & Measurement Systems
  • Data Acquisition: Capture high-volume discrete signals in industrial test benches and laboratory automation.
  • Equipment Monitoring: Track on/off status of motors, pumps, and compressors in predictive maintenance systems.
