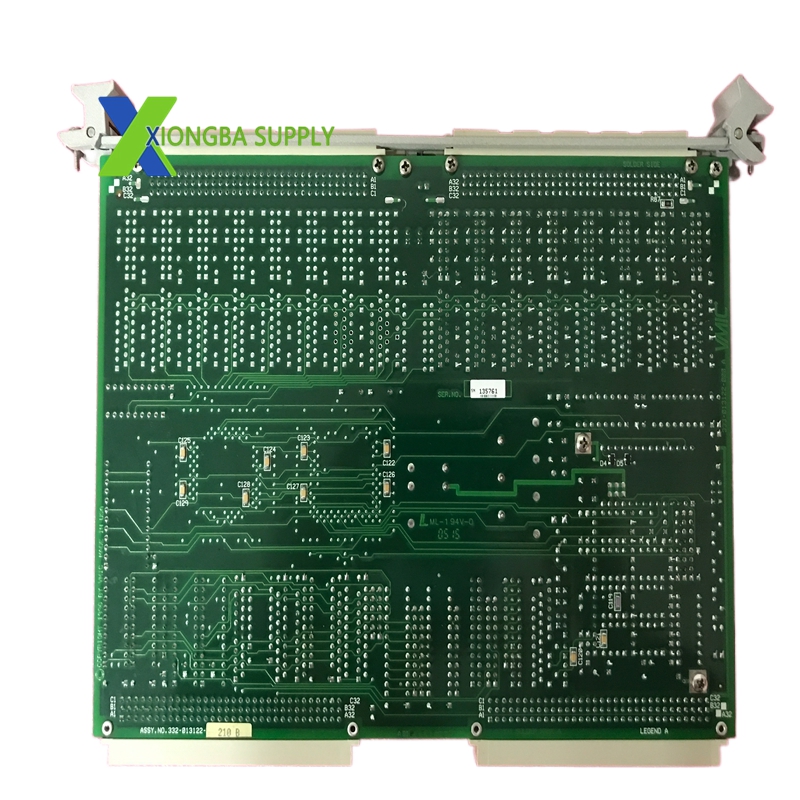

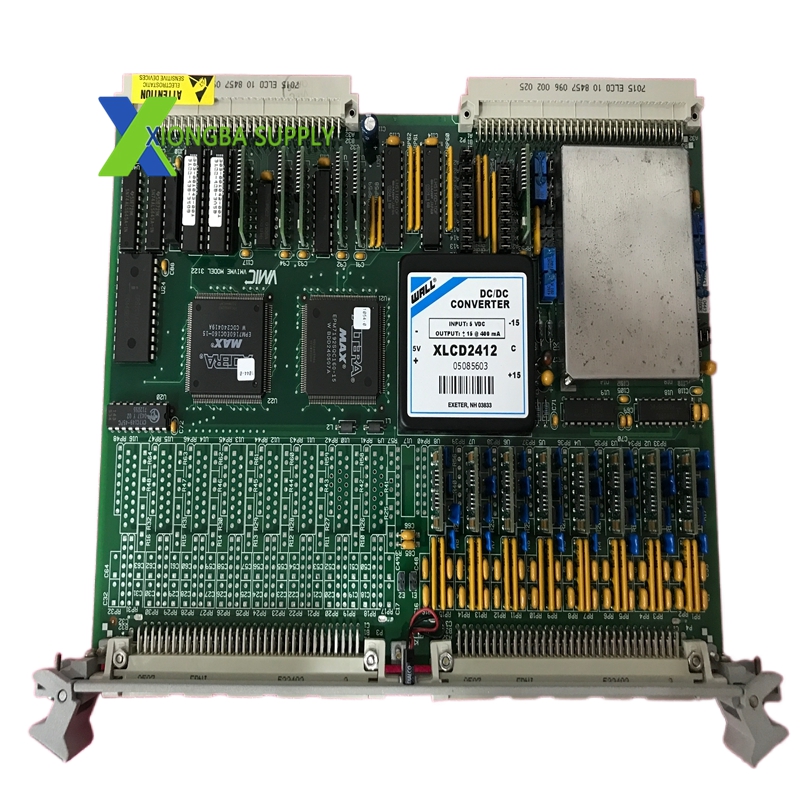

GE VMIVME-3122-020000 – High-Performance 16-Bit Analog Input Board (VMEbus)

Technical Specifications

• Manufacturer: GE Intelligent Platforms (Abaco Systems)
• Model: VMIVME-3122-020000
• Form Factor: 6U VMEbus (single slot)
• Resolution: 16-bit A/D converter
• Input Channels: 64 differential or single-ended (software-selectable)
• Input Voltage Ranges: ±250 mV, ±2.5 V, ±5 V, ±10 V, 0–+5 V, 0–+10 V
• Programmable Gain: ×1, ×10
• Max Sampling Rate: 100 kHz (per channel, software-selectable)
• Scan Modes: Autoscan, Single Scan, Random Access
• Trigger Modes: Software, External, Interval Timer
• Input Filter: Software-selectable (10 Hz, 50 Hz, 100 Hz, 500 Hz; or no filter)
• Connector: 96-pin non-latching for analog inputs
• Power Supply: +5 VDC (7.0 A max)
• Cooling: Forced air cooling required
• Operating Temperature: 0°C to +65°C (32°F to 149°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 0%–80% (non-condensing)
• Altitude: 0–10,000 ft (operating); 0–40,000 ft (storage)
• Dimensions (L×W×H): 233 mm × 160 mm × 20 mm
• Weight: ~0.5 kg

Key Features

1. High-Density 16-Bit Acquisition
   • 64 channels of 16-bit precision, enabling accurate measurement of low-level signals (±250 mV) up to ±10 V.
   • Programmable gain (×1/×10) optimizes resolution for varying input amplitudes.
2. Flexible Channel & Scan Configuration
   • Software-selectable differential/single-ended inputs for noise rejection or cost-effective wiring.
   • Three scan modes (autoscan, single, random) and programmable channel grouping (1/8/16/32/64 channels).
3. Multi-Mode Triggering & Filtering
   • Three trigger sources (software, external, timer) support synchronized sampling with external events.
   • Selectable low-pass filters eliminate industrial noise (50/60 Hz harmonics) for stable data.
4. VMEbus Compliance & Rugged Design
   • Fully compliant with VMEbus standards for seamless integration into 6U VME chassis.
   • Industrial-grade components and wide temperature range ensure reliability in harsh environments.
5. High-Speed Data Throughput
   • Up to 100 kHz sampling rate per channel, ideal for dynamic signal monitoring (vibration, pressure transients).
   • Autoscan mode continuously digitizes channels and streams data to the VMEbus for real-time processing.

Application Scenarios

• Industrial Data Acquisition
  • Manufacturing: Monitor sensor data (temperature, pressure, vibration) on production lines.
  • Power Generation: Collect analog signals from turbines, generators, and plant sensors in DCS systems.
  • Process Control: High-density monitoring in chemical, petrochemical, and water treatment plants.
• Aerospace & Defense
  • Avionics Testing: Acquire data from flight sensors and actuators in test benches.
  • Radar & Sonar: Capture low-level analog signals from sensors for signal processing.
  • Military Systems: Ruggedized data acquisition for vehicle, aircraft, and naval control systems.
• Test & Measurement
  • Laboratory Research: High-precision data logging for physics, materials science, and engineering experiments.
  • Automated Test Equipment (ATE): Semiconductor and electronics manufacturing test systems.
• Transportation
  • Railway: Monitor track, engine, and environmental sensors in train control systems.
  • Marine: Data acquisition for ship propulsion, navigation, and environmental monitoring systems.
