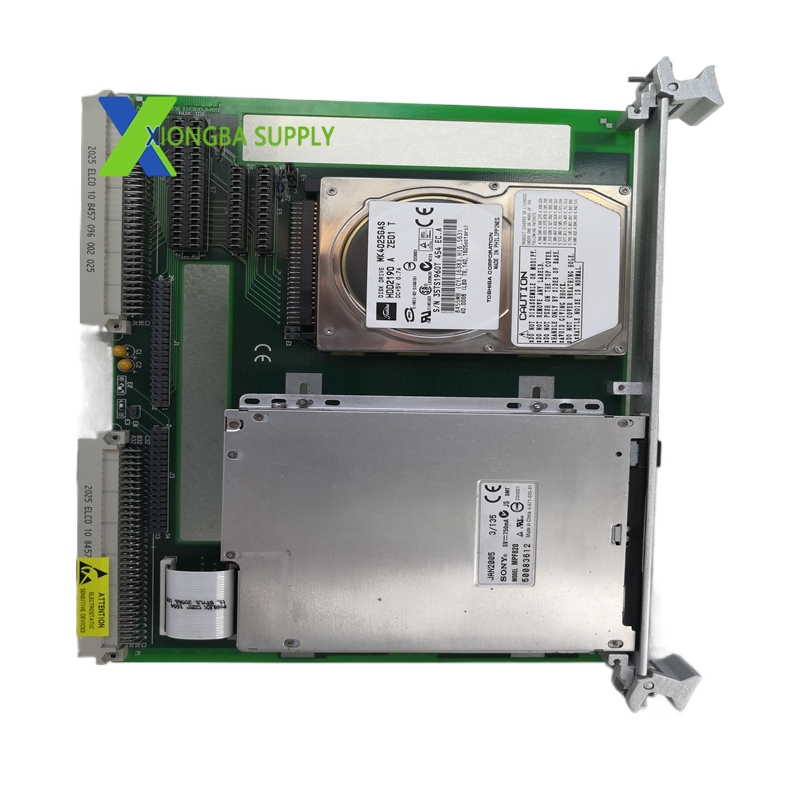

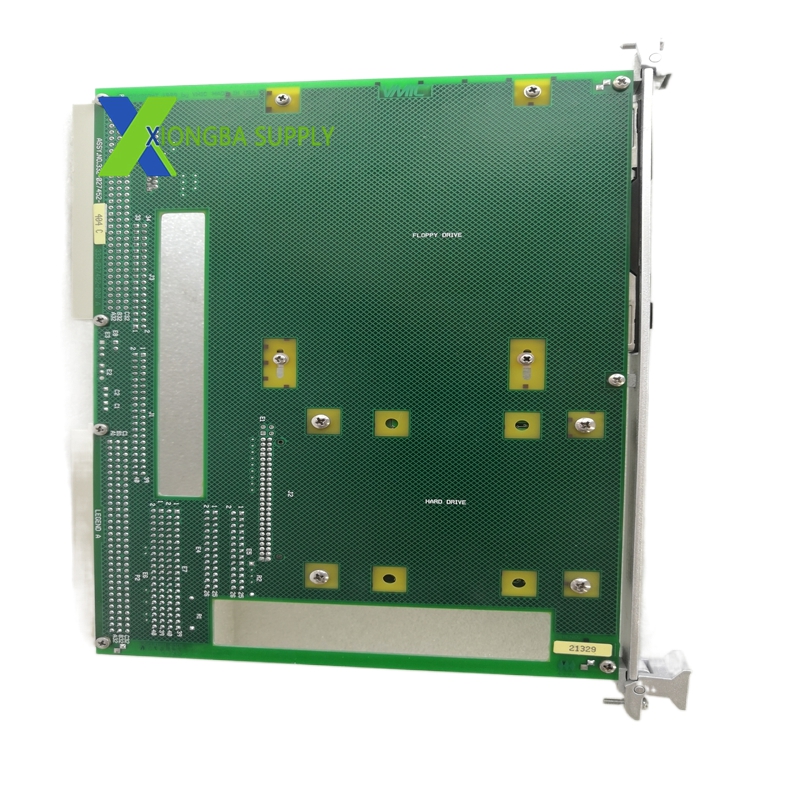

GE VMIVME-7452 – 6U Single-Slot VMEbus Storage Module

Technical Specifications

• Manufacturer: VMIC (Virginia Microelectronics, Inc.) / GE Fanuc (Abaco Systems)
• Model: VMIVME-7452
• Form Factor: 6U VMEbus, single-slot, passive board
• Storage Interfaces:
  • 3.5-inch 1.44 MB floppy disk drive (standard)
  • IDE hard disk interface (supports up to 4 GB)
  • Optional flash memory drive (replaces mechanical storage)
• VMEbus Interface: P2 user-defined pins, power (+5 V, +12 V, -12 V), ground
• Dimensions (L×W×H): 233 mm × 167.6 mm × 23.8 mm
• Weight: 0.8 kg (unit only)
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -55°C to +85°C (-67°F to 185°F)
• Relative Humidity: 0%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)
• Power Consumption: Low power (passive design, no on-board processor)

Key Features

1. Flexible Storage Configuration
   • Combines floppy disk, IDE hard disk, and optional flash drive in one compact 6U slot.
   • Configurable for floppy-only, hard disk-only, or dual-drive operation to match system needs.
2. Passive VMEbus Design
   • Operates as a passive board with no active circuitry, reducing power consumption and failure points.
   • Connects directly to VMEbus P2 pins for power and user-defined I/O, ensuring compatibility with all standard VME chassis.
3. Industrial-Grade Ruggedness
   • Wide operating temperature range (-40°C to +85°C) supports deployment in extreme industrial environments.
   • Ruggedized components and compact form factor ensure resistance to vibration, shock, and electromagnetic interference (EMI).
4. Easy Integration & Maintenance
   • Single-slot 6U VME form factor fits standard industrial control cabinets without modification.
   • Hot-swappable in compatible VME chassis, enabling drive replacement without system shutdown.
   • Simple screw-terminal connections for storage devices, simplifying field maintenance.
5. Legacy & Modern System Support
   • Backward-compatible with legacy GE Fanuc VME processors (e.g., VMIVME-7750, VMIVME-7650).
   • Flash drive option enables migration from mechanical storage to solid-state reliability in modernized systems.

Application Scenarios

• Industrial Automation & Control
  • Manufacturing Execution Systems (MES): Provides local storage for process data, recipes, and firmware updates in factory automation lines.
  • Distributed Control Systems (DCS): Serves as a storage node for GE Fanuc VME-based DCS in chemical, petrochemical, and pharmaceutical plants.
• Aerospace & Defense
  • Flight Control Systems: Offers rugged, high-reliability storage for mission-critical data in military and commercial aerospace applications.
  • Radar & Communication Systems: Stores operational software and sensor data in VME-based defense electronics.
• Power Generation
  • Turbine Control Systems: Supports GE Speedtronic Mark VI/VME turbine controls with local storage for control algorithms and historical data.
  • Grid Monitoring Systems: Provides data logging storage for power plant and substation monitoring systems.
• Test & Measurement
  • High-Speed Data Acquisition: Stores captured data from VME-based test systems in semiconductor, automotive, and research laboratories.
  • Industrial Instrumentation: Serves as a storage expansion unit for VME-based oscilloscopes, spectrum analyzers, and custom test equipment。
