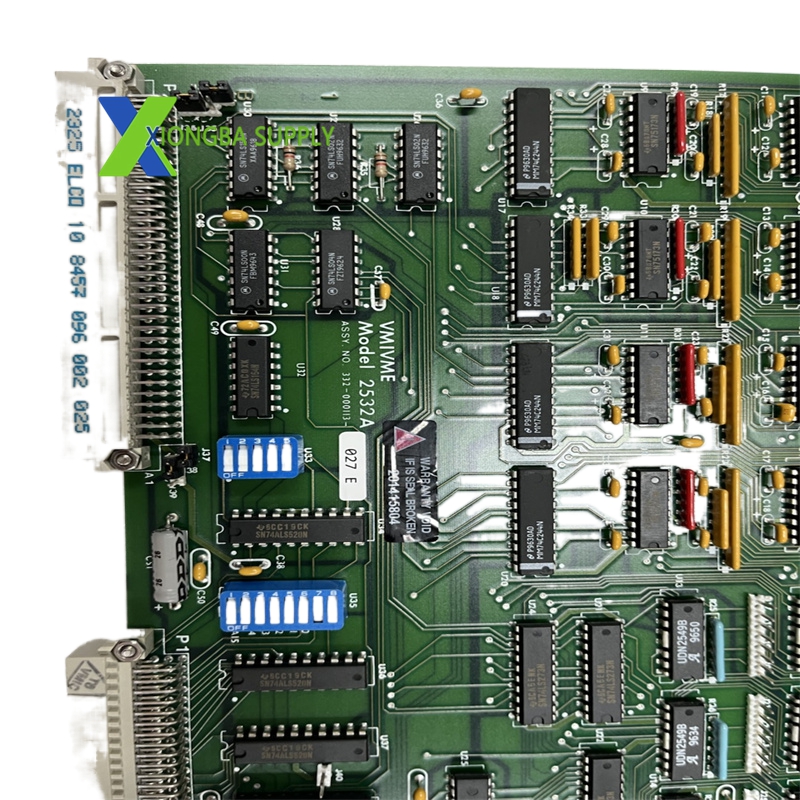

GE VMIVME-2532A - VMEbus 32-Channel Digital I/O Module with Interrupt and Pattern Match

GE VMIVME-2532A – VMEbus 32-Channel Digital I/O Module with Interrupt and Pattern Match

In stock

Product Introduction:
The GE VMIVME-2532A is an advanced 32-channel digital I/O module for VMEbus systems. The key differentiator from the standard 2510B is the “32” designation, which indicates this board includes hardware interrupt capability and pattern match logic. This means the board can detect specific combinations of input states (patterns) and immediately interrupt the CPU, rather than waiting for the next scan cycle. This is critical for high-speed event detection applications like encoder counting, high-speed sequencing, and fault detection where microseconds matter.

Technical Specifications:
Board Type: VMEbus Digital I/O with Interrupt
Revision: A
Channels: 32 channels (16 inputs + 16 outputs)
Interrupt Capability: Hardware interrupt on any input change or pattern match
Pattern Match: 32-bit pattern match register (detects any combination of inputs)
Input Types: 24V DC, 48V DC, 120V AC, 240V AC
Output Types: Relay (Form C) or Transistor (NPN/PNP)
Interrupt Latency: Less than 10 microseconds
Scan Rate: 1ms (faster than standard 2510B)
VMEbus Interface: D32/A32 with interrupt acknowledge (VME IRQ)
Isolation: 500V RMS opto-isolated
Form Factor: 3U VMEbus Eurocard

Functional Features:
Hardware Interrupts: The CPU is interrupted immediately when a critical input changes state, ensuring zero-latency response.
Pattern Match: Detects complex input conditions (e.g., “Input 5 AND Input 12 AND NOT Input 3”) and triggers an interrupt.
Encoder Support: Can count high-speed encoder pulses directly on the board without CPU intervention.
Timestamp Recording: Records the exact time of each interrupt event for forensic analysis.
Fail-Safe Outputs: Configurable to default to a safe state on interrupt or communication loss.
Diagnostic Memory: Stores the last 256 interrupt events locally.

Application Scenarios:
High-Speed Counting: Counts products on a production line at speeds exceeding 10,000 units per minute.
Fault Detection: Detects critical machine faults (e.g., emergency stop + guard open + overspeed) and interrupts the CPU in under 10 microseconds.
Encoder Interface: Reads rotary encoders on servo motors for precise position feedback.
Event Sequencing: Detects complex sequences of events in test and measurement applications.
