Technical Specifications:

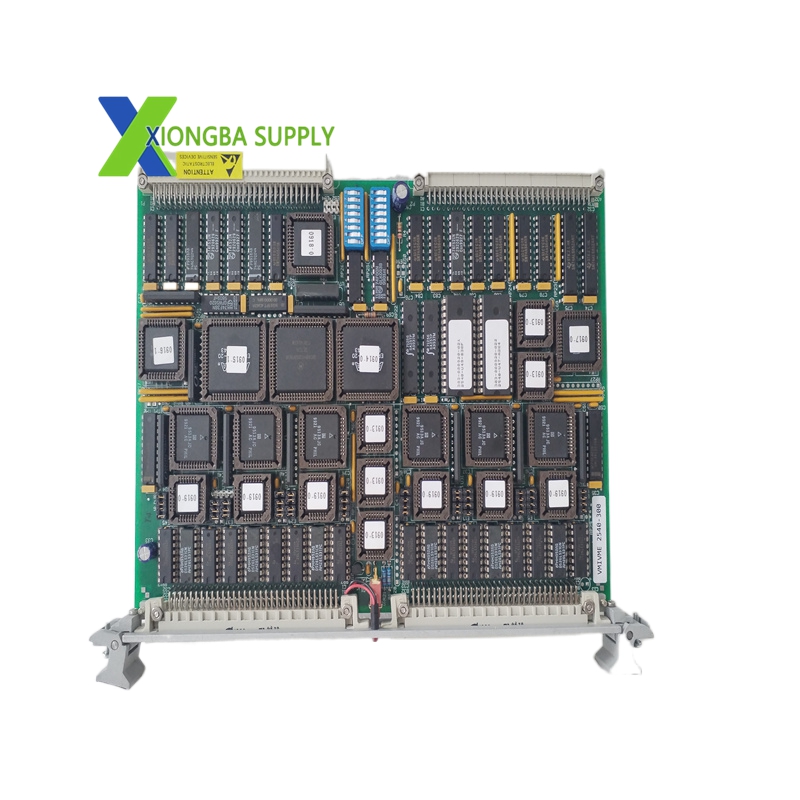

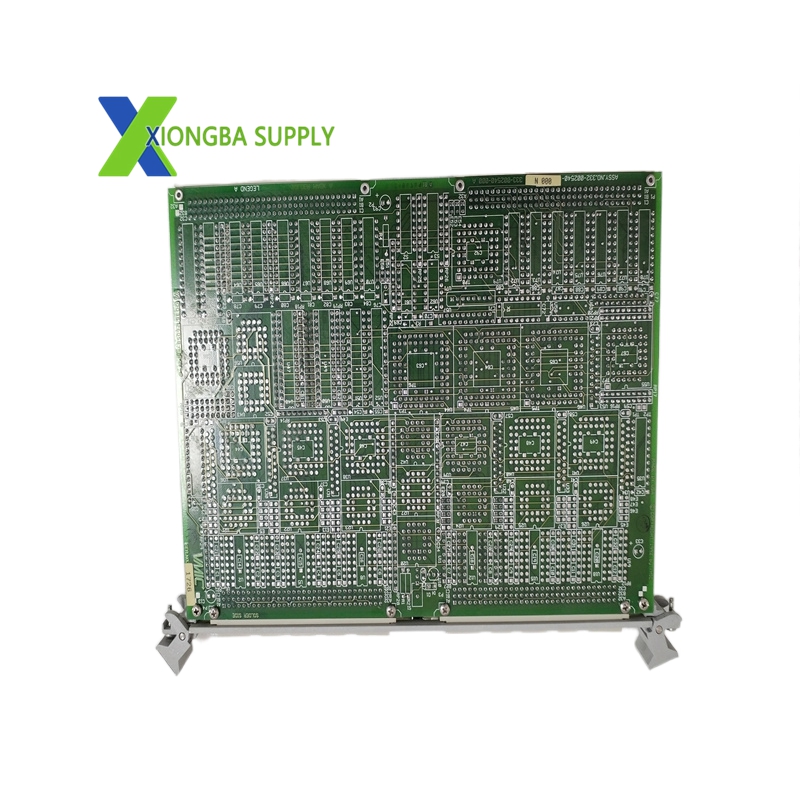

Board Type: VMEbus Analog Output Module
Channels: 16 independent analog output channels
Output Types: 4-20mA or 0-10V (software selectable per channel)
Resolution: 16-bit D/A conversion
Accuracy: +/- 0.05% of full scale
Linearity: +/- 0.01% of full scale
Update Rate: 10ms simultaneous update for all 16 channels
Isolation: 500V RMS channel-to-channel and channel-to-ground
Settling Time: Less than 10 microseconds
VMEbus Interface: D32/A32
Power Consumption: Approximately 4 Watts
Form Factor: 3U VMEbus Eurocard
Functional Features:
Simultaneous Update: All 16 outputs update at the exact same instant, critical for multi-valve control.
Per-Channel Isolation: Each output is electrically isolated from every other output, preventing ground loops.
Current Sourcing and Sinking: Supports both 2-wire (loop-powered) and 4-wire (externally powered) transmitters.
Burnout Detection: Detects open or shorted field wiring and alarms the CPU.
Watchdog Timer: Forces all outputs to a safe state (typically 0mA or 4mA) on communication loss.
LED Indicators: Per-channel LEDs show output status at a glance.
Application Scenarios:
Valve Position Control: Drives the torque motors of fuel control valves and steam control valves in power plants.
Damper Control: Positions air dampers in HVAC systems and combustion control.
Setpoint Distribution: Sends analog setpoints to multiple remote controllers from a single CPU.
Calibration Systems: Provides precise reference voltages for calibrating field transmitters.
