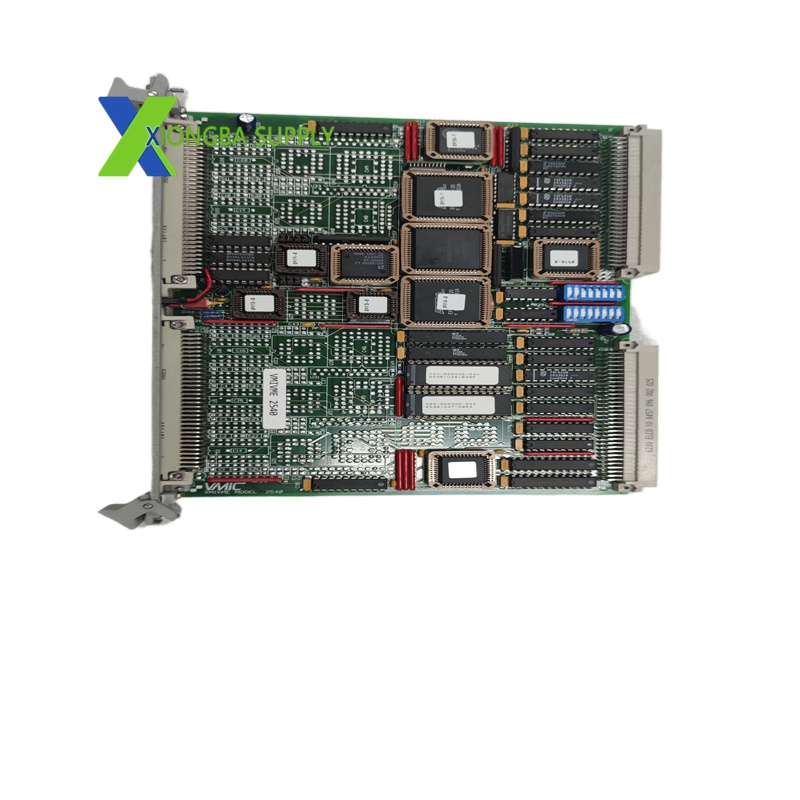

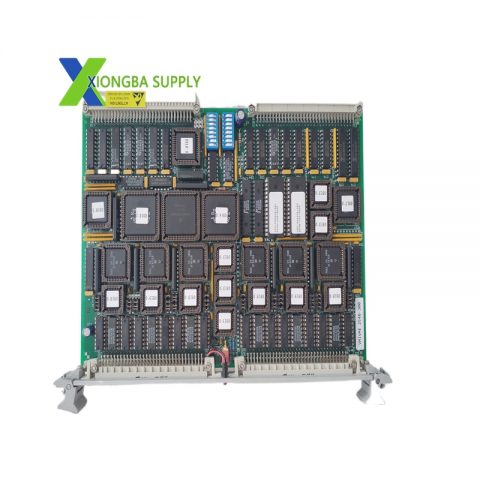

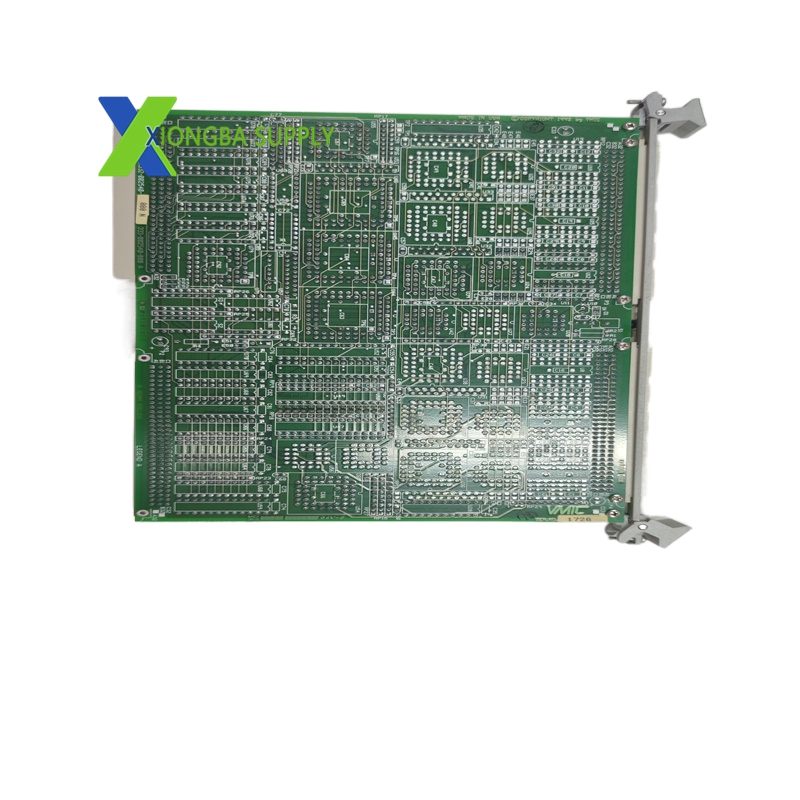

Product Name: GE VMIVME-2540-000 - VMEbus 16-Channel Analog Output Module

Product Name: GE VMIVME-2540-000 – VMEbus 16-Channel Analog Output Module

In stock

Product Introduction:
The GE VMIVME-2540-000 is the base configuration of the VMIVME2540 analog output module. The “000” suffix explicitly denotes the original, unmodified revision of the hardware. This is the most basic version of the 16-channel analog output board, offering all the core functionality of the 2540 family without any of the enhanced features found in later revisions (like A, B, or C). It is commonly found in legacy VME systems that have been in service for decades and require exact replacement parts. The 000 revision is fully compatible with all VMEbus backplanes and CPUs that support the standard 2540.

Technical Specifications:
Board Type: VMEbus Analog Output Module
Revision: 000 (Base/Original)
Channels: 16 independent analog output channels
Output Types: 4-20mA or 0-10V (per channel configurable)
Resolution: 16-bit D/A
Accuracy: +/- 0.1% of full scale (slightly lower than later revisions)
Update Rate: 20ms (slower than later A/B/C revisions which offer 10ms)
Isolation: 500V RMS channel-to-channel
VMEbus: D32/A32 compliant
Power: 5V DC from VMEbus backplane
Form Factor: 3U VMEbus Eurocard

Functional Features:
Proven Reliability: The 000 revision has been in the field for the longest time, with a well-documented track record.
Drop-In Replacement: Exact pin-compatible replacement for any 2540-000 board in existing systems.
Simple Configuration: No complex firmware; configured entirely via VMEbus register writes.
Robust Design: Uses through-hole components for maximum mechanical reliability.
Wide Temperature Range: Rated for 0 to 60 degrees Celsius.

Application Scenarios:
Legacy System Maintenance: Replaces failed 2540-000 boards in power plants and factories that have run the same VME system for 20+ years.
Spare Parts Inventory: Kept in stock by plant engineers as insurance against unexpected board failures.
OEM Equipment: Used in original equipment that was shipped with the 000 revision in the 1990s.
