Technical Specifications
- Manufacturer: Horner Electric (GE Fanuc / GE Intelligent Platforms)

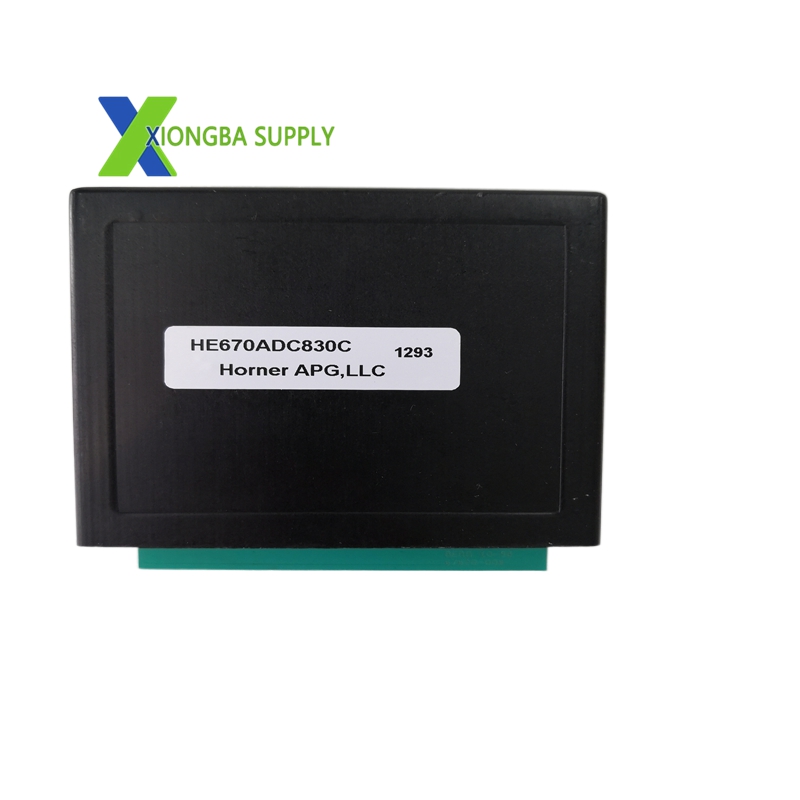

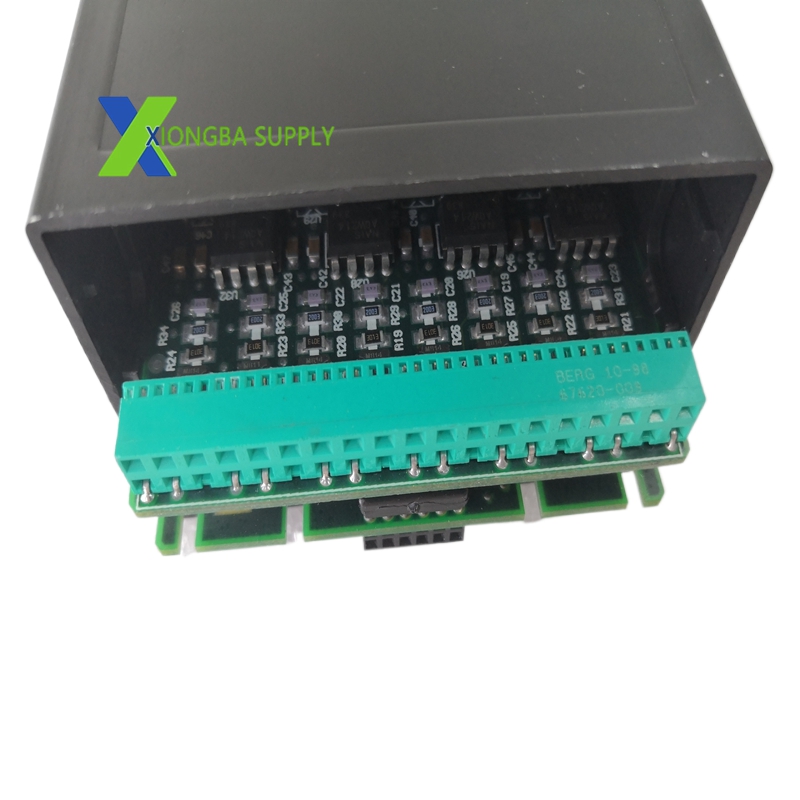

- Model: HE670ADC830
- Series: Field Control, VersaPAC Pro
- Function: Isolated Analog Input Module
- Number of Channels: 8 single-ended analog input channels
- Input Voltage Ranges: Configurable 0–10 V DC or ±10 V DC
- Resolution: 12 bits (11 data bits + 1 sign bit)
- Accuracy: ±0.1% Full Scale at 25°C
- Conversion Time: < 2 ms per channel
- Input Impedance: 1 MΩ
- Isolation Rating:
- Channel-to-Channel: 400 V DC
- Channel-to-Backplane: 1000 V DC
- Common-Mode Rejection Ratio (CMRR): > 60 dB
- Noise Immunity: > 10 V RMS
- Power Supply: 24 V DC (via backplane)
- Power Consumption: 130 mA
- Dimensions (W×H×D): 211 × 159 × 56 mm (8.3 × 6.3 × 2.2 in)
- Weight: 1.13 kg (2.5 lbs)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Rating: IP20
- Component Grade: Industrial-grade, vibration-resistant, EMI-shielded
Key Features
- High-Density 8-Channel Voltage Input
- Provides 8 independent single-ended input channels, supporting simultaneous acquisition of multiple analog signals.
- Offers configurable input ranges (0–10 V DC / ±10 V DC) to accommodate a wide variety of standard voltage output sensors and transducers.
- Precision Conversion & Exceptional Accuracy
- Delivers 12-bit resolution and ±0.1% full-scale accuracy, ensuring the capture of subtle signal variations for precise process monitoring and control.
- Features a fast conversion time of less than 2 ms per channel, enabling real-time data acquisition for dynamic processes.
- Robust Electrical Isolation & Noise Protection
- Incorporates 400 V DC channel-to-channel isolation and 1000 V DC channel-to-backplane isolation, preventing ground loops and protecting the control system from high-voltage transients.
- Boasts a CMRR of over 60 dB and noise immunity greater than 10 V RMS, ensuring stable and accurate measurements in electrically noisy industrial environments.
- Rugged Design for Harsh Industrial Environments
- Constructed with industrial-grade components and a reinforced PCB layout to withstand high vibration, shock, and electromagnetic interference (EMI).
- Supports a wide operating temperature range of -40°C to +70°C, ensuring reliable performance in extreme conditions.
- Seamless System Compatibility & Easy Integration
- Designed for direct integration with GE Fanuc Field Control and VersaPAC Pro systems, ensuring compatibility with standard I/O bases and flexible termination options.
- Converts analog inputs into digital values (typically -10,000 to +10,000 counts) accessible via the system bus interface, enabling straightforward data processing by the controller.
Application Scenarios
- Process Control Industries
- Chemical & Petrochemical Plants: Monitors pressure, temperature, and flow signals from transmitters in reactors, pipelines, and storage tanks.
- Water & Wastewater Treatment: Acquires data from level, pH, and turbidity sensors for monitoring and controlling treatment processes.
- Pharmaceutical & Food Processing: Ensures precise monitoring of temperature, humidity, and pressure in manufacturing and sterilization processes.
- Manufacturing & Machinery
- Automotive Assembly Lines: Monitors analog sensors for position, force, and speed in robotic arms and conveyor systems.
- Metalworking & Machining: Captures vibration, temperature, and pressure data from machine tools for condition monitoring and predictive maintenance.
- Energy & Power Generation
- Thermal Power Plants: Monitors boiler temperature, steam pressure, and fuel flow sensors.
- Renewable Energy: Acquires data from solar panel voltage sensors and wind turbine speed and pitch controllers.
- Building & Infrastructure
- HVAC Systems: Monitors temperature, humidity, and air quality sensors for building climate control.
- Smart Buildings & Facilities: Integrates data from various environmental and equipment sensors for centralized monitoring and management.
