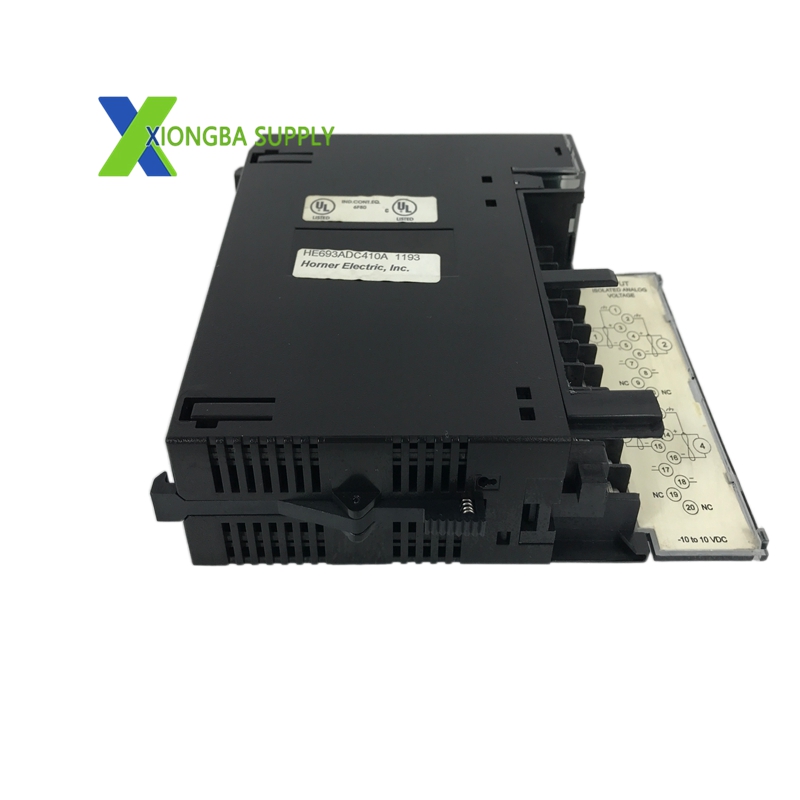

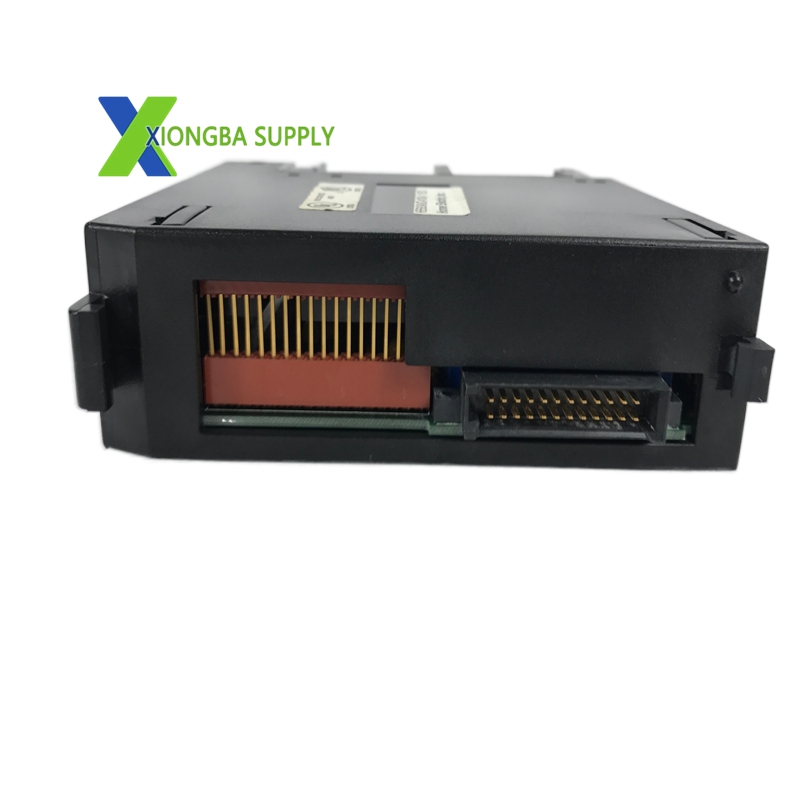

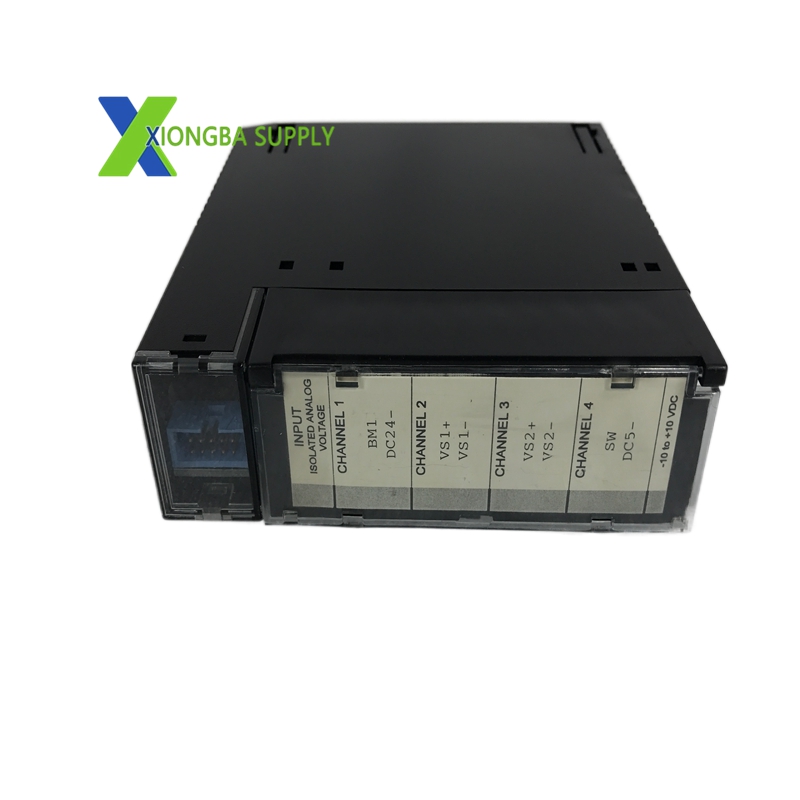

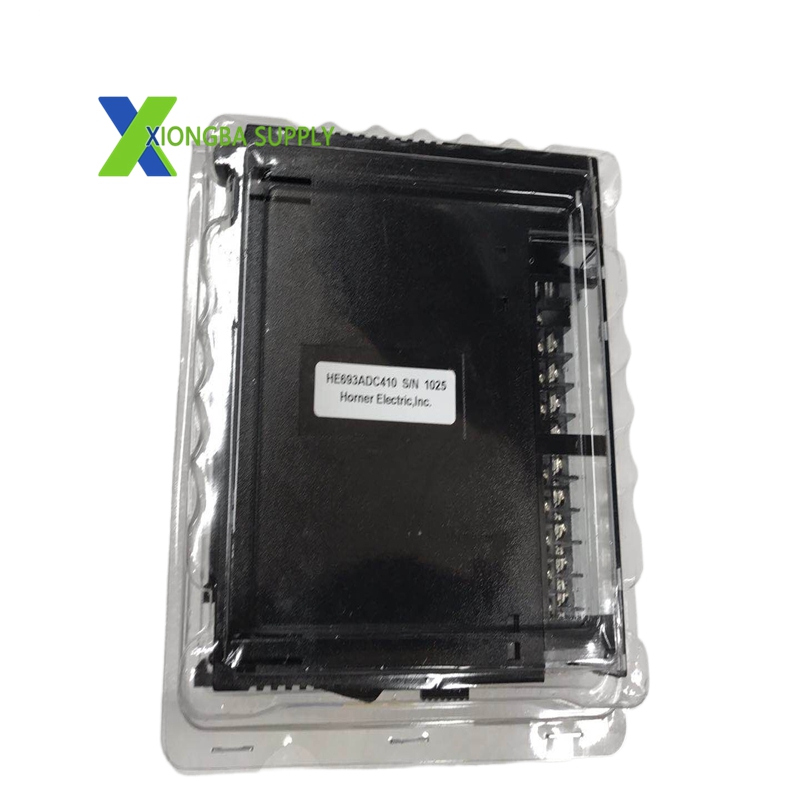

GE HE693ADC410 Isolated Analog Input Module

Technical Specifications

Manufacturer: Horner Electric (GE Fanuc / GE Intelligent Platforms)
Model: HE693ADC410
Series: GE Series 90-30 PLC
Function: Isolated Analog Input Module
Number of Channels: 4 single-ended analog input channels
Input Voltage Range: Configurable ±10 V DC
Resolution: 18-bit integrating ADC (13 bits plus sign usable resolution)
Accuracy: ±0.05% Full Scale at 25°C
Conversion/Update Rate: 45 channels per second
Input Impedance: 1 MΩ
Isolation Rating:
- Channel-to-Channel: 1500 V AC (RMS), ±2000 V DC
- Channel-to-Backplane: 1500 V AC (RMS), ±2000 V DC
Common-Mode Rejection Ratio (CMRR): >100 dB
Filtering:
- Analog: 1 kHz, 3-pole Bessel filter
- Digital: 1–128 samples/update (configurable)
Power Supply: 5 V DC (200 mA), 24 V DC (100 mA)
Dimensions (W×H×D): 76 × 90 × 50 mm
Weight: 0.34 kg (0.75 lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Protection Rating: IP20
MTBF: ≥ 100,000 hours

Key Features

High-Isolation 4-Channel Voltage Input
- Provides 4 independent, fully isolated input channels for simultaneous acquisition of ±10 V DC analog signals.
- Delivers 1500 V AC (RMS) / ±2000 V DC isolation between channels and between channels and the backplane, eliminating ground loops and protecting the system from high-voltage transients.
Ultra-High Precision & Resolution
- Utilizes an 18-bit integrating ADC with 13 bits plus sign usable resolution, capturing subtle signal variations for precise process control.
- Maintains ±0.05% full-scale accuracy and a CMRR of >100 dB, ensuring stable measurements in electrically noisy environments.
Advanced Filtering for Noise Reduction
- Integrates a 1 kHz 3-pole Bessel analog filter and configurable digital filtering (1–128 samples/update) to suppress electrical noise and signal interference.
- Enables stable and accurate data acquisition even in environments with high EMI/RFI interference.
Rugged & Compact Industrial Design
- Constructed with industrial-grade components and a compact, space-saving form factor for reliable operation in harsh conditions.
- Supports a wide operating temperature range of 0°C to +60°C, suitable for factory floors, outdoor cabinets, and extreme industrial settings.
Seamless Series 90-30 PLC Integration
- Designed for direct compatibility with GE Series 90-30 PLCs, enabling plug-and-play installation via the PLC backplane.
- Communicates via the system bus with a fast update rate of 45 channels per second, providing real-time data to the controller.
- Features LED status indicators for power, channel activity, and fault diagnostics, simplifying maintenance.

Application Scenarios

Process Control Industries
- Chemical & Petrochemical Plants: Monitors pressure, temperature, and flow from transmitters in reactors and pipelines.
- Water & Wastewater Treatment: Acquires level, pH, and turbidity sensor data for process monitoring.
- Pharmaceutical Manufacturing: Ensures precise temperature and pressure control in sterilization and production processes.
Manufacturing & Machinery
- Automotive Assembly Lines: Monitors position, force, and speed sensors in robotic arms and conveyors.
- Metalworking & Machining: Captures vibration and temperature data from machine tools for condition monitoring.
- Packaging Machinery: Controls tension, speed, and position for high-speed packaging lines.
Energy & Power Generation
- Thermal Power Plants: Monitors boiler temperature, steam pressure, and fuel flow sensors.
- Renewable Energy: Acquires voltage signals from solar panels and wind turbine controllers.
- Power Substations: Measures voltage and current from transformers and switchgear.
General Industrial Automation
- HVAC Systems: Monitors temperature, humidity, and air quality for building climate control.
- Food & Beverage Processing: Controls temperature, pressure, and flow in mixing, cooking, and packaging.
- Textile & Plastics Manufacturing: Monitors and controls extrusion, molding, and drying processes.
