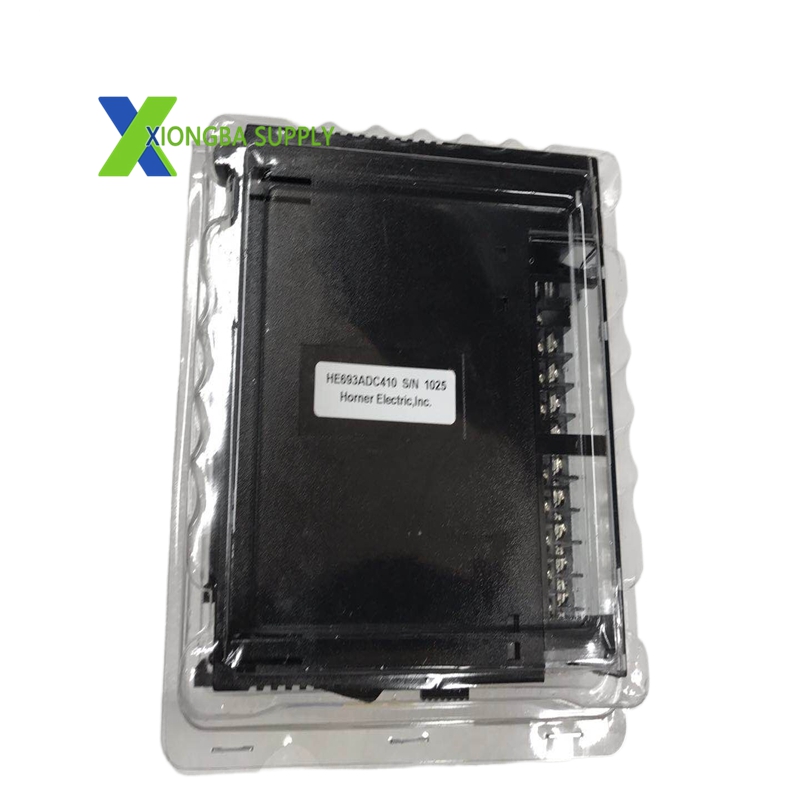

GE HE693ADC410A Isolated Analog Input Module

Technical Specifications

• Manufacturer: Horner Automation (GE Fanuc / GE Intelligent Platforms)
• Model: HE693ADC410A
• Series: Series 90-30 PLC, PACSystems RX3i
• Function: 4-Channel Isolated Analog Voltage Input
• Number of Channels: 4 independent single-ended input channels
• Input Voltage Range: Fixed ±10 V DC
• Resolution: 14 bits (13 data bits + 1 sign bit)
• Effective Resolution: 13 bits plus sign
• Accuracy: ±0.05% Full Scale at 25°C
• Conversion Type: Integrating A/D converter
• Update Rate: 45 channels per second
• Input Impedance: 1 MΩ
• Overvoltage Protection: ±15 V DC (continuous)
• Isolation Rating:
  • Channel-to-Channel: 1500 V AC (RMS), ±2000 V DC
  • Channel-to-Backplane: 1500 V AC (RMS), ±2000 V DC
• Common-Mode Rejection Ratio (CMRR): >100 dB
• Digital Filtering: Selectable 1–128 samples per update
• Analog Filtering: 1 kHz, 3-pole Bessel filter
• Power Supply: 5 V DC (backplane) / 24 V DC (external)
• Power Consumption:
  • 0.7 W / 140 mA @ 5 V DC
  • 1.2 W / 50 mA @ 24 V DC
• Surge Current (Power-Up): 200 mA @ 5 V, 100 mA @ 24 V
• I/O Memory Mapping: 4 %AI (analog input), 4 %AQ (analog output), 16 %I (digital input) registers
• Output Data Format: Digital values ranging from -32,000 to +32,000 (written directly to PLC %AI table)
• Dimensions (W×H×D): 99.06 × 99.06 × 118.03 mm
• Weight: 0.25 kg (0.55 lbs)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20 (dust-protected, no direct touch)
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded
• Mounting: DIN rail mountable

Key Features

1. High-Density 4-Channel Isolated Input
   • Provides 4 independent, galvanically isolated analog input channels for simultaneous acquisition of multiple ±10 V DC signals.
   • Eliminates ground loop interference and protects the control system from high-voltage transients via 1500 V AC / ±2000 V DC channel-to-channel and channel-to-backplane isolation.
2. Ultra-High Precision & Accuracy
   • Delivers 14-bit resolution and ±0.05% full-scale accuracy, capturing subtle signal variations for precise process monitoring and closed-loop control.
   • Features an integrating A/D converter with selectable digital filtering (1–128 samples/update) and a 1 kHz analog filter, ensuring stable readings in electrically noisy environments.
3. Programmable Alarm Setpoints
   • Each of the 4 channels includes a user-programmable alarm setpoint, configured via 4 %AQ output registers in the PLC program.
   • Triggers a corresponding digital input (%I) when the analog input value reaches or exceeds the setpoint, enabling real-time over/under-limit alarm monitoring without additional hardware.
4. Seamless PLC Integration & Hot-Swap Capability
   • Designed for direct compatibility with GE Series 90-30 and PACSystems RX3i PLC systems, with no backplane restrictions.
   • Converts analog inputs to digital values (-32,000 to +32,000) that map directly to the PLC’s %AI table, enabling immediate data access and processing by the CPU.
5. Rugged Industrial Design
   • Constructed with industrial-grade components and a reinforced plastic housing, supporting a wide operating temperature range (0°C to +60°C) and withstanding vibration, shock, and EMI.
   • DIN-rail mountable for easy installation in standard industrial control panels, with a compact footprint saving cabinet space.


Application Scenarios

• Process Control Industries
  • Chemical & Petrochemical Plants: Monitors pressure, temperature, and flow signals from transmitters in reactors, pipelines, and storage tanks.
  • Water & Wastewater Treatment: Acquires data from level, pH, and turbidity sensors for real-time process monitoring and control.
  • Pharmaceutical & Food Processing: Ensures precise monitoring of temperature, humidity, and pressure in manufacturing, sterilization, and packaging processes.
• Manufacturing & Machinery
  • Automotive Assembly Lines: Monitors analog sensors for position, force, and speed in robotic arms, conveyor systems, and welding equipment.
  • Metalworking & Machining: Captures vibration, temperature, and pressure data from machine tools for condition monitoring and predictive maintenance.
  • Packaging Machinery: Tracks tension, torque, and speed signals for precise control of packaging lines.
• Energy & Power Generation
  • Thermal Power Plants: Monitors boiler temperature, steam pressure, fuel flow, and exhaust gas sensors.
  • Renewable Energy: Acquires data from solar panel voltage sensors, wind turbine speed/pitch controllers, and hydroelectric generator sensors.
  • Power Distribution: Monitors voltage and current signals in switchgear and substation equipment.
• Building & Infrastructure
  • HVAC Systems: Monitors temperature, humidity, air quality, and pressure sensors for building climate control and energy management.
  • Smart Buildings & Facilities: Integrates data from environmental and equipment sensors for centralized monitoring, alarm management, and predictive maintenance.
