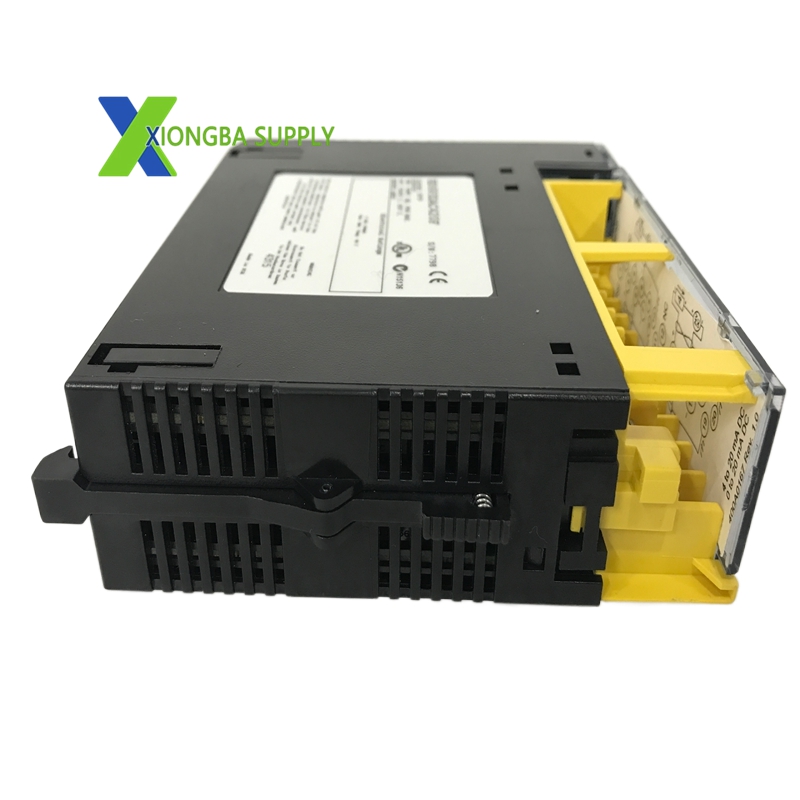

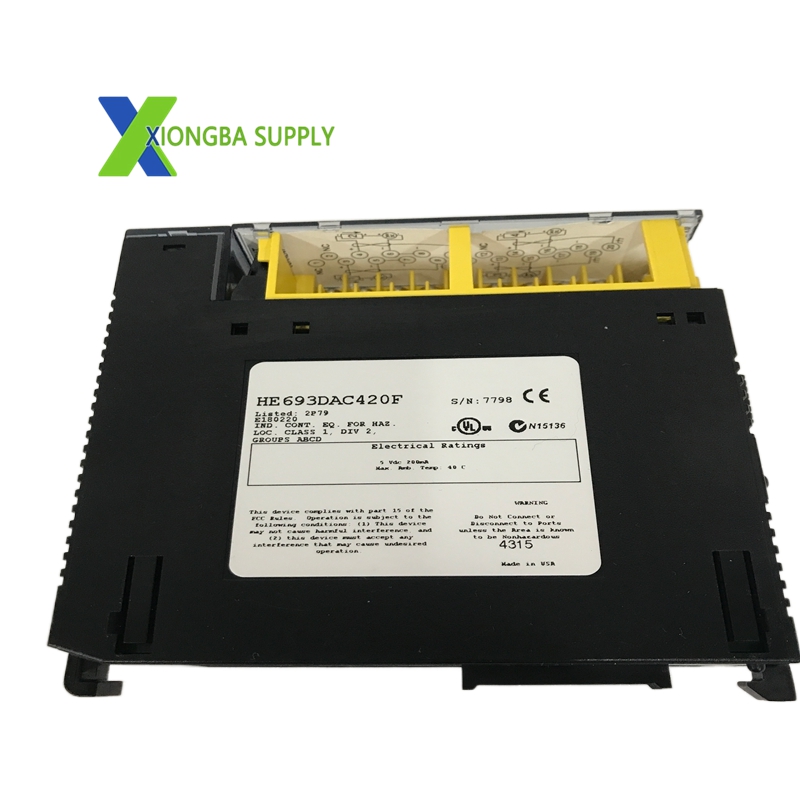

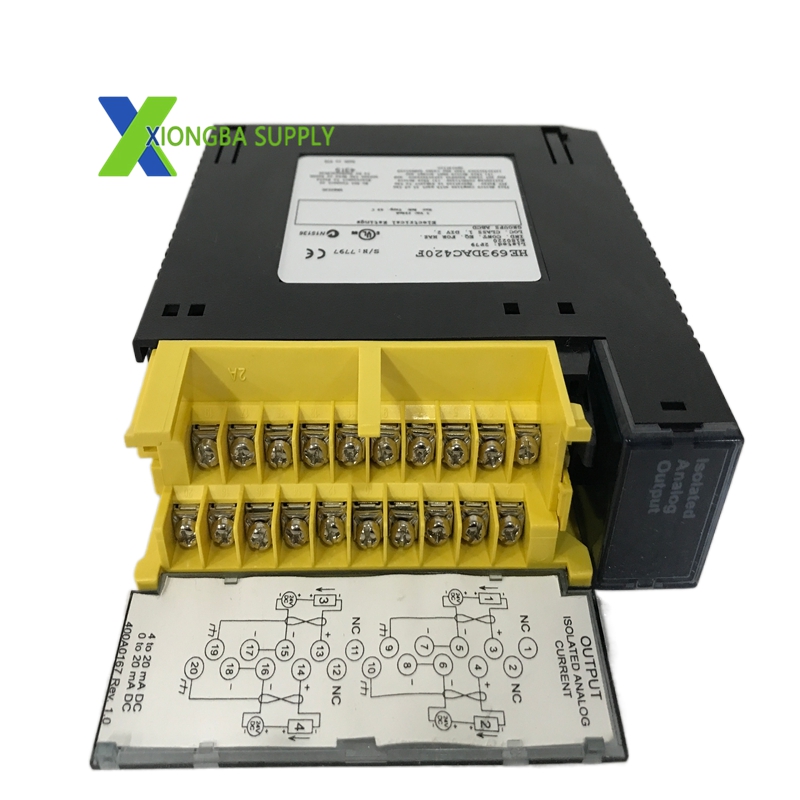

GE HE693DAC420 Isolated Analog Output Module

Technical Specifications

• Manufacturer: Horner Electric (GE Fanuc / GE Intelligent Platforms)
• Model: HE693DAC420
• Series: GE Fanuc Series 90-30 PLC
• Function: Isolated Analog Current Output
• Number of Channels: 4 isolated current output channels
• Output Ranges: Configurable 0–20 mA or 4–20 mA (industry standard)
• Resolution: 13 bits + sign (14 bits total)
• Resolution per Step: 2.0 μA (4–20 mA); 2.5 μA (0–20 mA)
• Accuracy: ±0.1% full scale (4–20 mA); ±0.15% full scale (0–20 mA)
• Load Impedance: ≤ 1.1 kΩ @ 24 VDC loop supply
• Isolation: 500 VAC RMS / ±2000 VDC channel-to-backplane
• Common-Mode Rejection: >60 dB
• Power Supply: 5 VDC (backplane) / 24 VDC (field loop)
• Power Consumption: 90 mA @ 5 VDC; 120 mA @ 24 VDC
• Dimensions (W×H×D): 90 × 30 × 25 mm (3.5 × 1.2 × 1.0 in)
• Weight: Approx. 100 g (0.22 lbs)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non-condensing)
• Protection Rating: IP20
• MTBF: ≥100,000 hours

Key Features

1. Four Isolated Current Output Channels
   • Provides 4 fully isolated channels to eliminate ground loops and crosstalk, ensuring stable, accurate outputs in electrically noisy environments.
   • Each channel is independently configurable for 0–20 mA or 4–20 mA, supporting a wide range of field devices.
2. 14-Bit High-Resolution & High Accuracy
   • Delivers 14-bit resolution (13 bits + sign) for precise, fine-grained control of analog parameters.
   • Maintains ±0.1% full-scale accuracy (4–20 mA) for consistent performance in closed-loop control systems.
3. 2000 VDC Isolation & Noise Immunity
   • Reinforced 2000 VDC isolation between channels and backplane protects the PLC from high-voltage transients and improves system safety.
   • High CMRR (>60 dB) and noise immunity (>10 V RMS) ensure stable operation in harsh industrial environments.
4. Compact, Rugged Industrial Design
   • Ultra-compact 90 × 30 × 25 mm form factor saves panel space and simplifies installation in standard PLC racks.
   • Industrial-grade components and vibration-resistant construction withstand shock, EMI, and extended temperature ranges (0°C to +60°C).
5. Seamless Integration with GE Fanuc 90-30 PLC
   • Designed for direct plug-in compatibility with GE Fanuc Series 90-30 PLC systems, requiring no additional adapters.
   • Communicates via the PLC backplane bus with simple configuration, enabling direct control of analog devices from the PLC program.

Application Scenarios

• Process Control Industries
  • Chemical & Petrochemical: Controls control valves, flow transmitters, and temperature regulators in reactors and pipelines.
  • Water & Wastewater: Drives modulating valves, pump speed controllers, and chemical dosing systems for treatment processes.
  • Pharmaceutical & Food & Beverage: Regulates temperature, pressure, and flow in sterilization, mixing, and packaging lines.
• Manufacturing & Machinery
  • Variable-Frequency Drive (VFD) Control: Provides 4–20 mA speed reference signals to VFDs for precise motor speed control in conveyors, mixers, and machine tools.
  • Robotics & Motion Control: Controls proportional valves and actuators for positioning and force control in automated assembly systems.
• Energy & Power
  • Power Generation: Controls boiler feedwater valves, steam turbine governors, and fan speed drives in thermal power plants.
  • HVAC & Building Automation: Regulates chilled water valves, air handling unit dampers, and fan speed for energy-efficient climate control.
• Oil & Gas
  • Pipeline & Compressor Stations: Controls pressure control valves and compressor capacity via 4–20 mA signals.
  • Refineries: Regulates process heaters, distillation column valves, and pump speed for precise process control.
