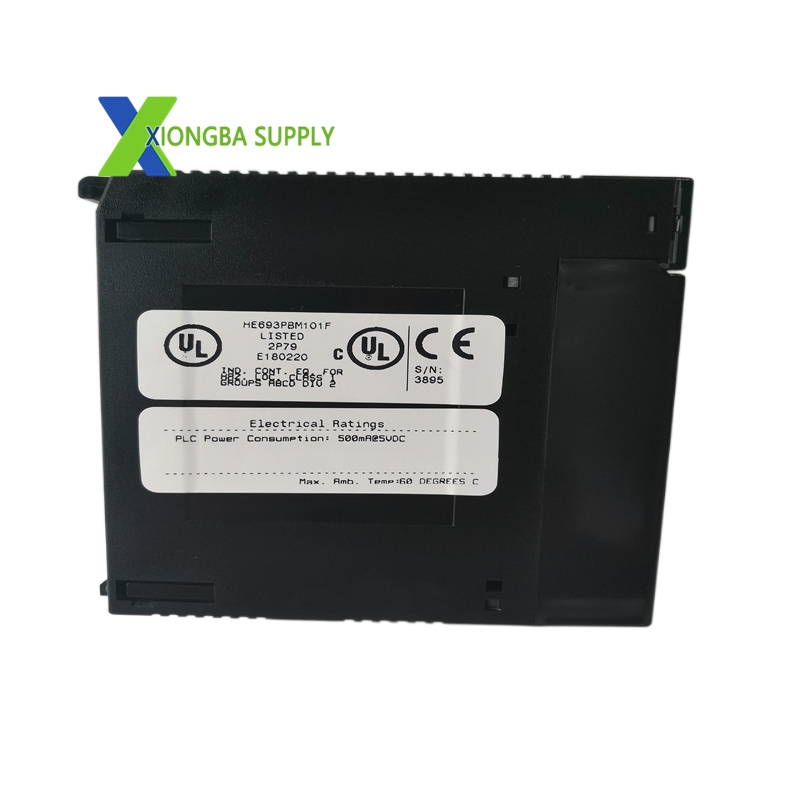

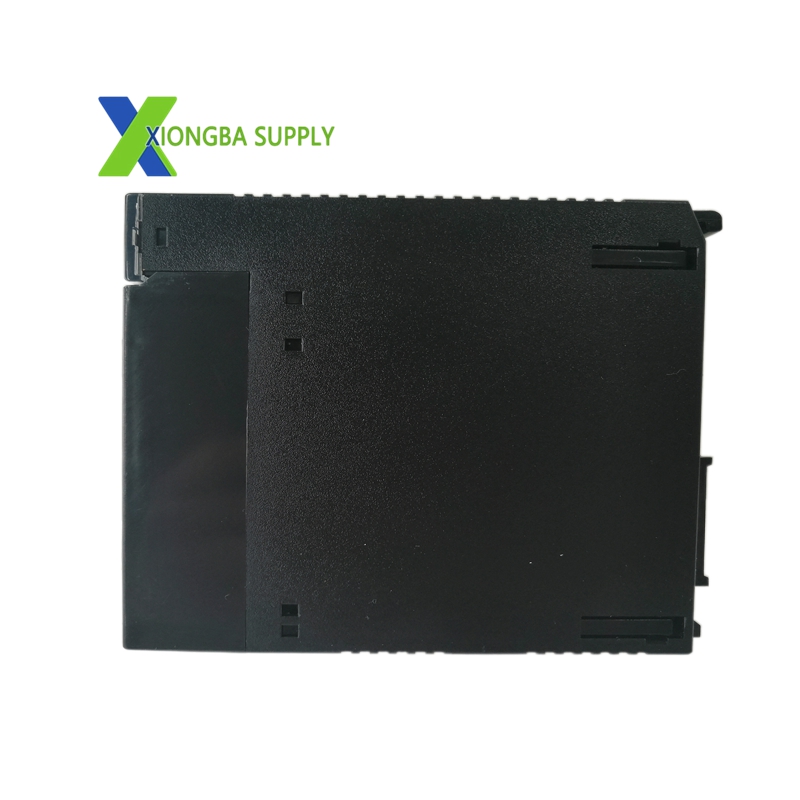

GE HE693PBM101 PROFIBUS DP Master Module

Technical Specifications

• Manufacturer: General Electric (GE) / Horner Electric
• Model: HE693PBM101
• Series: GE Fanuc Series 90-30 PLC System
• Function: PROFIBUS DP Network Master Module
• Supported Protocol: PROFIBUS DP (RS485)
• Max Slave Devices: 64 nodes per segment (without repeater)
• Communication Speed: 1.2 Mbps to 12 Mbps (configurable)
• Data Exchange: Up to 16 words input / 16 words output per slave
• Power Supply: 5 V DC from PLC backplane
• Current Consumption: 250 mA
• Dimensions (W×H×D): 76 × 100 × 14 mm (3.0 × 3.9 × 0.55 in)
• Weight: Approximately 0.3 kg (9.6 oz)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Isolation: 2500 V DC (channel-to-backplane)
• Connector: 9-pin D-sub (PROFIBUS interface)
• LED Indicators: Power, Run, Fault, Network Activity
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded

Key Features

1. High-Speed PROFIBUS DP Master Communication
   • Operates as a PROFIBUS DP master, controlling and polling slave devices at baud rates up to 12 Mbps for fast, deterministic data transfer.
   • Supports standard PROFIBUS DP communication frames for seamless interoperability with third-party DP slaves.
2. Extensive Network Scalability
   • Connects and manages up to 64 slave devices per segment, expanding the automation system’s I/O and control reach.
   • Allows integration of remote I/O, drives, and field instruments into a single, unified network.
3. Robust Electrical Isolation & Noise Immunity
   • Provides 2500 V DC isolation between the PROFIBUS network and the PLC backplane, protecting the controller from electrical transients and ground loops.
   • Designed with EMI shielding and industrial-grade components for reliable operation in electrically noisy environments.
4. Compact & Rugged Form Factor
   • Features a low-profile, space-saving design that fits into standard GE 90-30 PLC racks.
   • Withstands vibration, shock, and wide temperature fluctuations (-20°C to +70°C) for deployment in harsh industrial settings.
5. Diagnostic LEDs & Easy Maintenance
   • Equipped with dedicated LED indicators for power, module status, network activity, and fault conditions, enabling quick on-site diagnostics.
   • Supports standard GE programming software for configuration, network setup, and fault troubleshooting.
6. Seamless GE 90-30 PLC Integration
   • Plugs directly into any available slot of the GE Fanuc Series 90-30 PLC rack, requiring no additional adapters.
   • Communicates with the PLC CPU via the backplane bus, exchanging I/O data and status information transparently to the user program.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Automotive Assembly Lines: Connects PLC to robotic controllers, conveyor drives, and distributed I/O for synchronized assembly operations.
  • Packaging & Material Handling: Links to variable frequency drives (VFDs), encoders, and sensors for precise speed and position control.
• Process Control Industries
  • Chemical & Petrochemical Plants: Interfaces with remote I/O racks, flow transmitters, and control valves for distributed process monitoring and regulation.
  • Water & Wastewater Treatment: Connects to level sensors, pumps, and dosing units across treatment facilities.
• Energy & Power Generation
  • Thermal Power Plants: Integrates boiler controls, turbine auxiliaries, and environmental monitoring systems via PROFIBUS DP.
  • Renewable Energy: Manages data exchange between wind turbine controllers and remote monitoring stations.
• Industrial Machinery & Heavy Equipment
  • Metalworking & Machine Tools: Connects CNC machines, servo drives, and cooling system controllers for coordinated motion control.
  • Mining & Construction: Operates in rugged environments to control conveyors, crushers, and drilling equipment.
