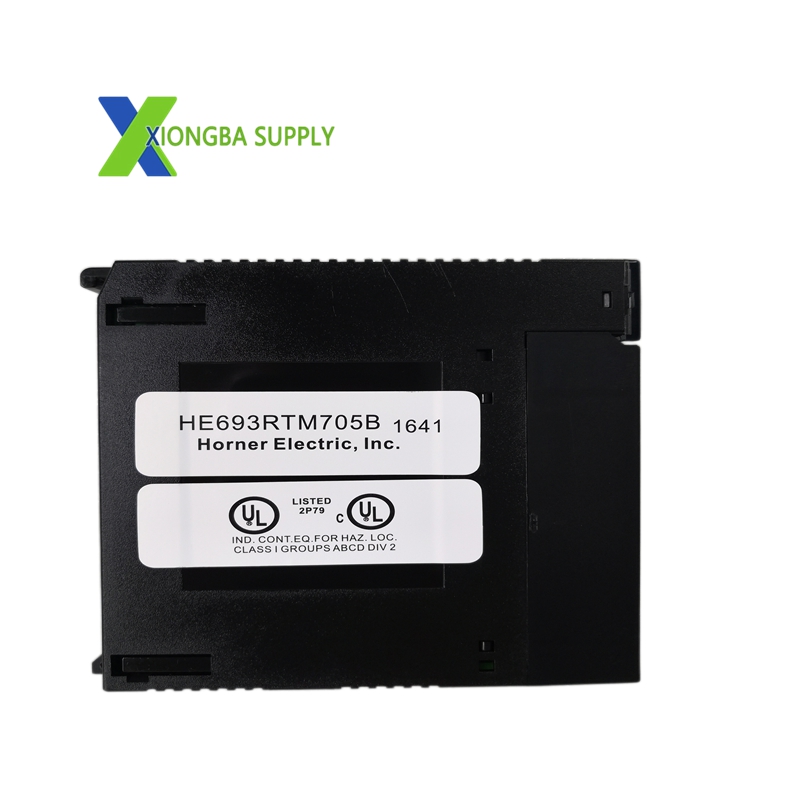

GE HE693RTM705 Modbus RTU Master Communication Module

Technical Specifications

• Manufacturer: General Electric (GE) / Horner Electric
• Model: HE693RTM705
• Series: GE Fanuc Series 90-30 PLC System
• Function: Modbus RTU Master Communication Module
• Number of Channels: 2 independent Modbus/RTU master channels
• Supported Protocols: Modbus RTU, ASCII
• Communication Interfaces: RS-232, RS-422, RS-485
• Baud Rate: 9600 bps to 115200 bps (configurable)
• Max Slave Devices: Up to 32 slaves per channel
• Max Data Length: 250 bytes per command
• Power Supply: 5 V DC from PLC backplane
• Current Consumption: 300 mA
• Dimensions (W×H×D): 76 × 100 × 14 mm (3.0 × 3.9 × 0.55 in)
• Weight: Approximately 0.45 kg (1.0 lb)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• LED Indicators: Power (OK), Port 1 (P1), Port 2 (P2)
• Mounting: Vertical mounting in PLC rack

Key Features

1. Dual Independent Modbus RTU Master Channels
   • Operates as a Modbus RTU master with two separate channels, allowing simultaneous management of two distinct slave networks.
   • Each channel is fully programmable and can be configured for different communication modes and parameters.
2. Versatile Communication Interfaces
   • Supports RS-232 for short-distance direct connections, RS-422/RS-485 for multi-drop networks up to 2000 meters, and dial-up/radio modem for long-distance or wireless applications.
   • Compatible with a wide range of Modbus RTU slave devices, including remote I/O, sensors, meters, and controllers.
3. High-Speed & Flexible Data Exchange
   • Supports baud rates up to 115200 bps for fast, efficient data transfer.
   • Each channel can send/receive analog or discrete data using standard Modbus commands (e.g., Read Coils, Read Registers), with up to 250 bytes per command.
4. Robust Industrial Design
   • Features a compact, vertical-mount form factor that fits standard GE 90-30 PLC racks.
   • Built with industrial-grade components to withstand vibration, shock, and wide temperature fluctuations for reliable operation in harsh environments.
5. Diagnostic LEDs & Easy Configuration
   • Equipped with dedicated LED indicators for power status and channel activity, enabling quick on-site troubleshooting.
   • Configured via standard GE programming software, with data mapped directly to the PLC’s reference tables for seamless integration.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Assembly Lines: Connects PLC to remote I/O modules, barcode scanners, and quality sensors for real-time production monitoring.
  • Material Handling: Links to motor drives, conveyors, and weight scales for synchronized control and data logging.
• Process Control Industries
  • Water & Wastewater Treatment: Interfaces with flow meters, level sensors, and pump controllers across treatment facilities.
  • Oil & Gas: Connects to pressure transmitters, temperature sensors, and valve actuators in remote well sites and pipelines.
• Energy & Power Generation
  • Power Plants: Integrates boiler controls, turbine auxiliaries, and environmental monitoring systems via Modbus RTU.
  • Renewable Energy: Manages data exchange between solar inverters, wind turbine controllers, and remote monitoring stations.
• Building & Infrastructure
  • HVAC Systems: Connects to temperature controllers, humidity sensors, and air handling units for building climate control.
  • Smart Buildings: Links to lighting controls, access systems, and energy meters for centralized facility management.
