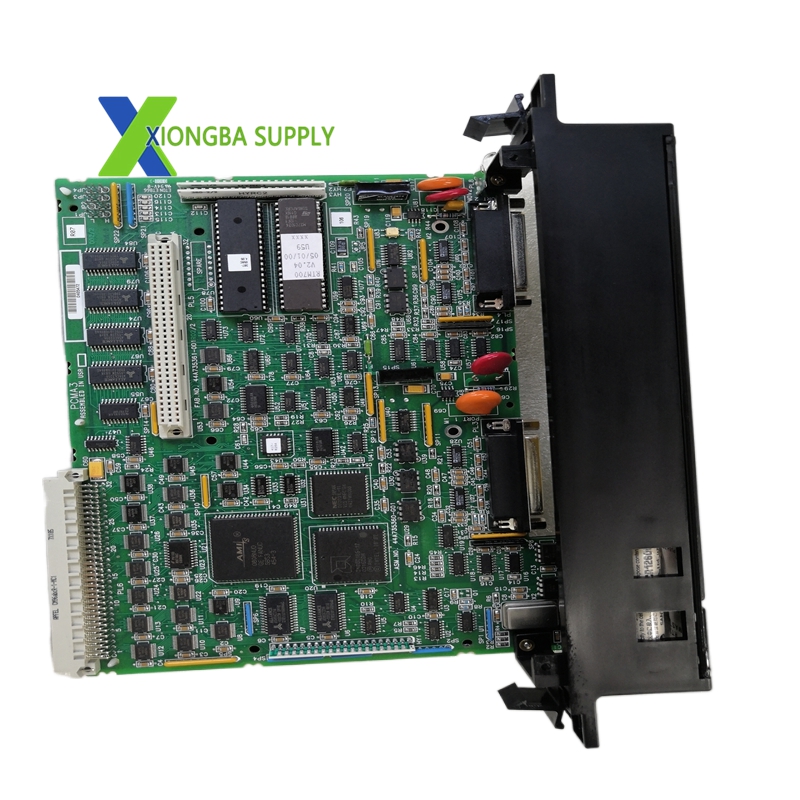

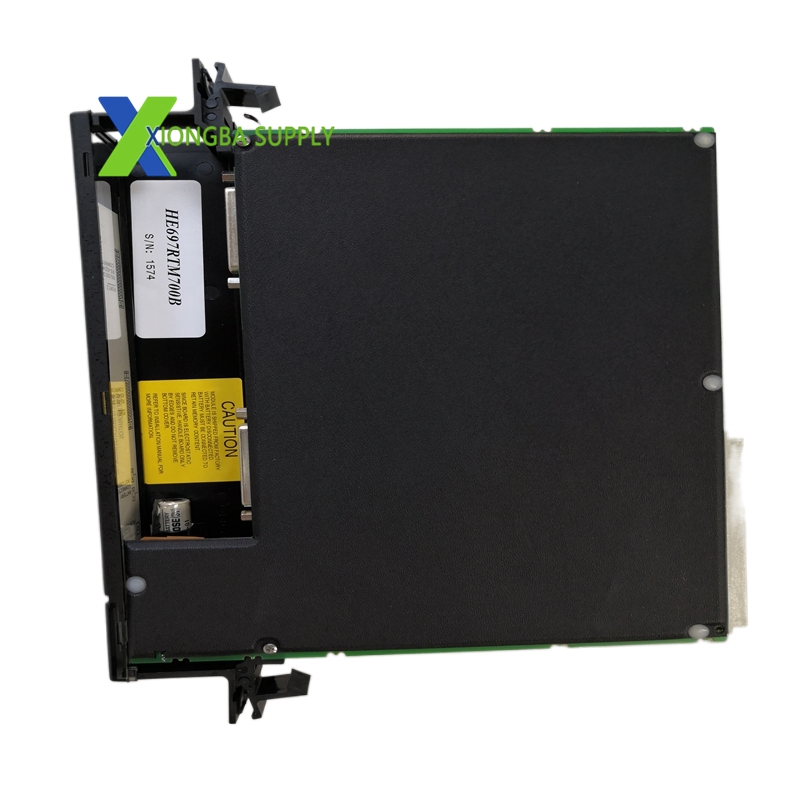

GE HE697RTM700B Modbus RTU Master Communication Module

Technical Specifications

• Manufacturer: General Electric (GE) / Horner Electric
• Model: HE697RTM700B
• Compatible PLC Series: GE Fanuc Series 90-30, Series 90-70
• Function: Dual-Channel Modbus RTU Master Module
• Supported Protocol: Modbus RTU (RS-232, RS-422, RS-485)
• Communication Channels: 2 independent master channels
• Network Topologies: Multi-drop (RS-422/RS-485), direct connection (RS-232), dial-in/dial-out, radio modem
• Data Types: Analog (16-bit), Discrete (binary)
• Max Data Length per Command: 250 bytes
• Power Supply: 5 V DC from PLC backplane
• Current Consumption: 425 mA @ 5 V DC
• Dimensions (W×H×D): 76 × 100 × 14 mm (3.0 × 3.9 × 0.55 in)
• Weight: Approximately 0.3 kg (9.6 oz)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Isolation: 2500 V DC (channel-to-backplane)
• Connectors: 9-pin D-sub (×2, for Modbus channels)
• LED Indicators: Power, Run, Fault, Channel Activity
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded

Key Features

1. Dual Independent Modbus RTU Master Channels
   • Equipped with two fully independent master channels, allowing simultaneous communication with two separate Modbus RTU networks.
   • Each channel is individually configurable for baud rate, parity, data bits, and stop bits, supporting speeds up to 115.2 kbps.
2. Multi-Protocol & Multi-Topology Support
   • Supports RS-232, RS-422, and RS-485 physical layers, enabling compatibility with diverse slave device interfaces.
   • Configurable for multi-drop networks, direct point-to-point connections, dial-up modems, and radio modem links for long-range communication.
3. Comprehensive Data Exchange Capabilities
   • Transmits and receives analog (16-bit) and discrete (binary) data using standard Modbus RTU commands (e.g., Read Coils, Read Holding Registers).
   • Each channel can issue multiple commands to slaves, with each command handling up to 250 bytes of contiguous data.
4. Robust Industrial Design & Isolation
   • Provides 2500 V DC isolation between communication channels and the PLC backplane, protecting against electrical transients and ground loops.
   • Built with EMI shielding and industrial-grade components for reliable operation in electrically noisy and vibration-prone environments.
5. Seamless PLC Integration & Diagnostics
   • Plugs directly into standard GE 90-30/90-70 PLC racks, requiring no additional adapters.
   • Equipped with dedicated LEDs for power, module status, and channel activity, enabling quick on-site troubleshooting.
   • Configured via standard GE programming software for network setup, slave mapping, and fault diagnostics.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Assembly Lines: Connects PLC to remote I/O, sensors, and drives for synchronized production control.
  • Packaging Machinery: Links to counters, encoders, and actuators for precise speed and position monitoring.
• Process Control Industries
  • Water & Wastewater Treatment: Interfaces with flow meters, level sensors, and pump controllers across treatment plants.
  • Chemical & Petrochemical: Connects to pressure transmitters, temperature sensors, and control valves for distributed process regulation.
• Energy & Power Generation
  • Power Plants: Integrates boiler auxiliaries, environmental monitors, and generator controls via Modbus RTU networks.
  • Renewable Energy: Manages data exchange between solar/wind controllers and remote monitoring stations.
• Building & Infrastructure Automation
  • HVAC Systems: Connects to temperature controllers, humidity sensors, and damper actuators for building climate control.
  • Smart Facilities: Links to lighting controls, access systems, and energy meters for centralized facility management.
