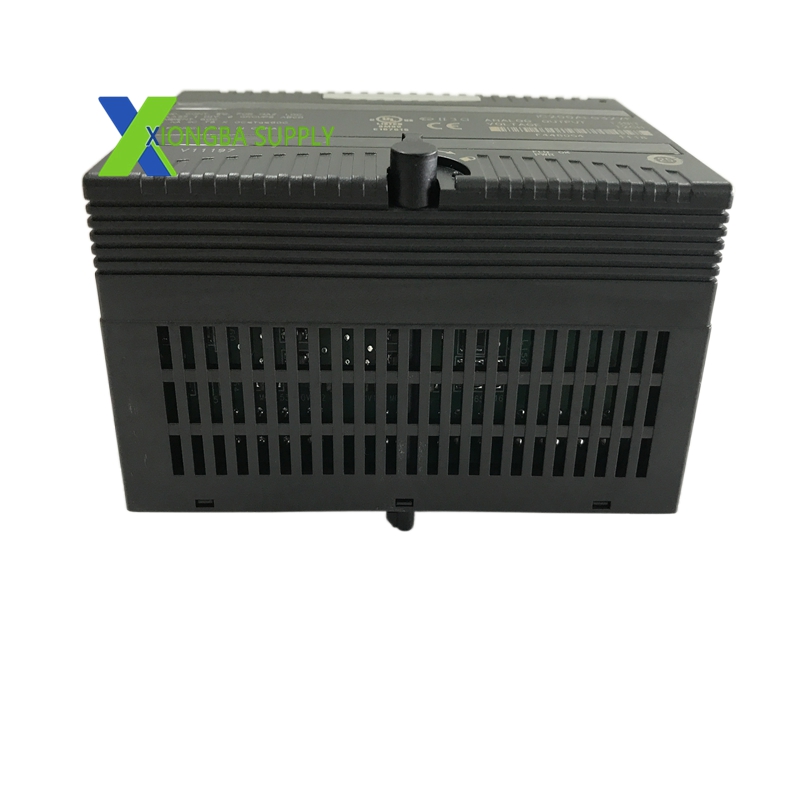

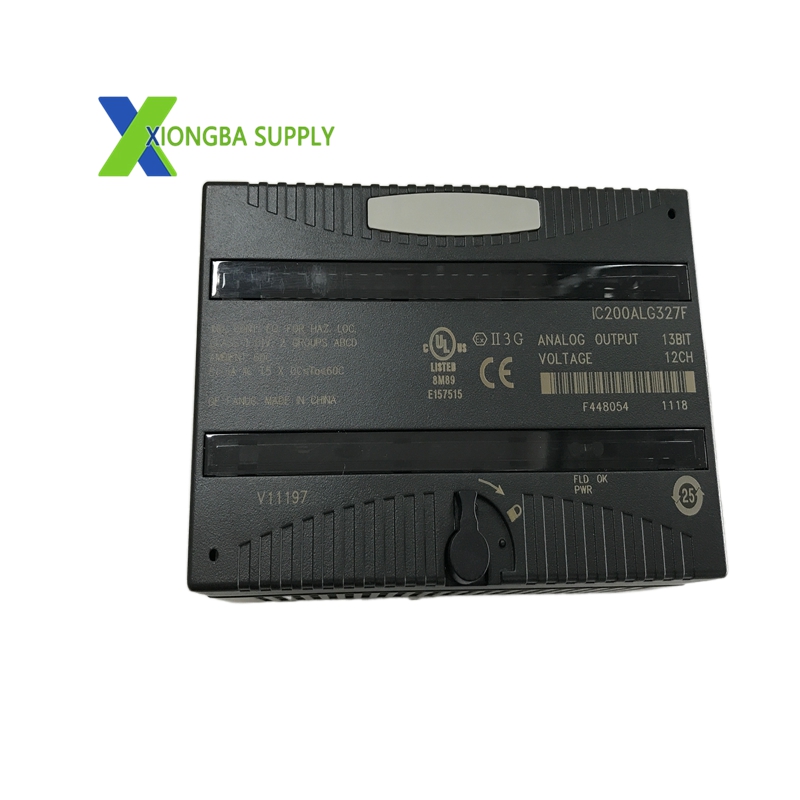

GE IC200ALG327H Analog Output Module

Technical Specifications

• Manufacturer: General Electric (GE) / Emerson
• Model: IC200ALG327H
• Series: GE VersaMax I/O Series
• Module Type: High-Density Analog Output Module
• Number of Channels: 12 single-ended voltage outputs
• Resolution: 13-bit
• Output Ranges:
  • Bipolar: -10 VDC to +10 VDC
  • Unipolar: 0 VDC to +10 VDC (configurable via jumper)
• Update Rate: 15 ms maximum
• Electrical Isolation: 250 VAC continuous; 1500 VAC for 1 minute (channel-to-backplane)
• Backplane Power Consumption: 50 mA @ 5 VDC
• Field Power Requirement: External 24 VDC (for output circuitry)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Dimensions (W×H×D): 110 × 66.8 × 50 mm (4.3 × 2.63 × 1.96 in) (excludes carrier)
• Weight: Approximately 0.45 kg (0.99 lb)
• LED Indicators:
  • OK: Backplane power status
  • FLD PWR: External field power status
• Certifications: CE, UL, RoHS compliant

Key Features

1. High-Density 12-Channel Output
   • Provides 12 single-ended analog voltage outputs in a compact form factor, reducing rack space and system cost for multi-loop control.
   • Each channel operates independently, supporting simultaneous control of multiple analog devices.
2. Dual Voltage Ranges & Jumper Configuration
   • Supports bipolar (-10V to +10V) and unipolar (0V to +10V) output ranges, configurable via on-board jumpers.
   • Default range is 0–10V; easily switched to ±10V for bidirectional control applications.
3. 13-Bit High Precision & Fast Response
   • Delivers 13-bit resolution (8192 steps) for accurate, smooth analog output with minimal signal error.
   • Features a 15 ms maximum update rate, ensuring fast response to PLC control commands for dynamic process adjustment.
4. Robust Electrical Isolation & Noise Protection
   • Provides 1500 VAC isolation between the analog field side and PLC backplane, preventing ground loops and electrical transient damage.
   • Designed with EMI shielding and industrial-grade components for stable operation in electrically noisy environments.
5. Flexible Fail-Safe Output Modes
   • Configurable via jumper: outputs hold last state or default to 0V if backplane power, communication, or PLC operation is interrupted.
   • External field power (24 VDC) must remain active to maintain output state during faults.
6. Hot-Swappable & Easy Integration
   • Supports hot insertion/removal (with proper procedures), allowing module replacement without system shutdown.
   • Plugs directly into standard VersaMax carriers (IC200CHSxxx), communicating via the VersaMax backplane bus with no additional adapters.
7. Clear LED Diagnostics
   • Equipped with two dedicated LEDs for instant status monitoring: OK (backplane power) and FLD PWR (field power).
   • Enables quick on-site troubleshooting without additional software.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Conveyor & Material Handling: Controls VFD speed for precise belt/motor speed regulation.
  • Packaging Machinery: Drives proportional valves and actuators for accurate pressure/position control.
  • Automotive Assembly: Manages analog actuators in robotic arms and assembly stations.
• Process Control Industries
  • Chemical & Petrochemical Plants: Regulates control valves for flow, pressure, and temperature loops.
  • Water & Wastewater Treatment: Controls dosing pumps and motorized valves for water quality regulation.
  • Food & Beverage: Adjusts mixer speed, heater power, and valve positions for consistent product quality.
• Energy & Power Generation
  • Thermal Power Plants: Controls boiler feedwater valves, fan speed, and steam pressure loops.
  • HVAC Systems: Regulates dampers, valves, and VFDs for building climate control.
• Industrial Machinery & Heavy Equipment
  • Metalworking & Machine Tools: Drives servo amplifiers and spindle speed controllers.
  • Plastics Processing: Controls extruder screw speed and temperature via analog outputs.
