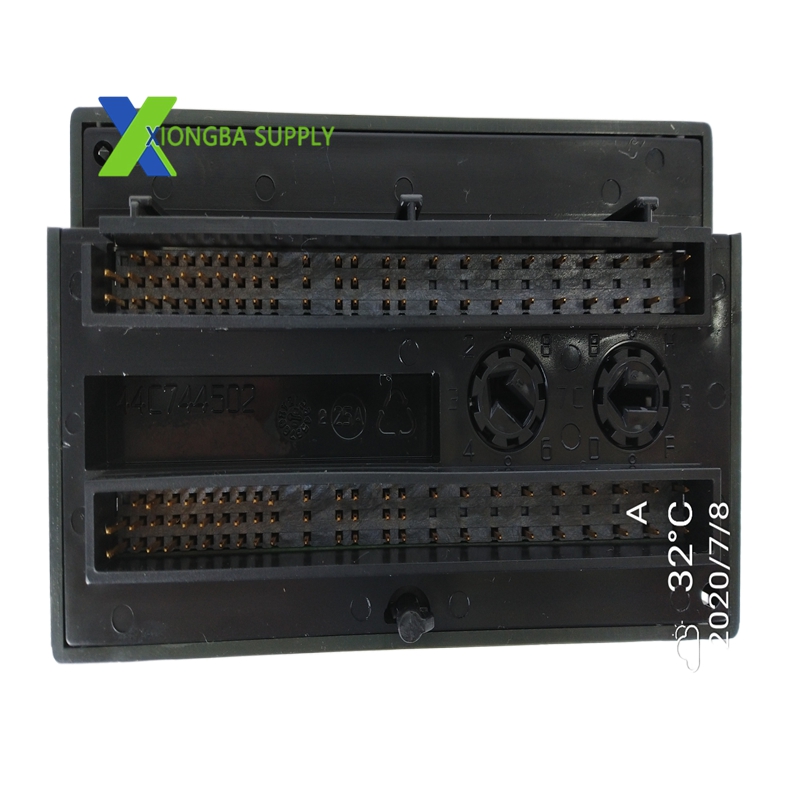

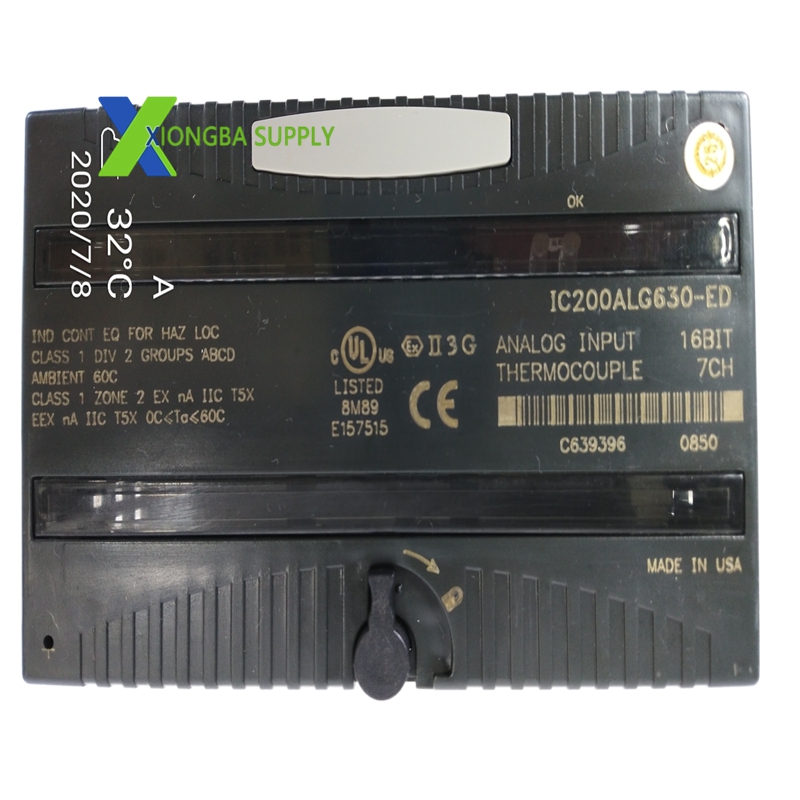

GE IC200ALG630 VersaMax 16-Bit 7-Channel Thermocouple Analog Input Module

Technical Specifications

• Manufacturer: General Electric (GE) / GE Fanuc
• Model: IC200ALG630
• Series: VersaMax PLC System
• Module Type: Analog Input Module (Thermocouple / mV)
• Number of Channels: 7 differential input channels
• Resolution: 15 bits + sign (16-bit effective)
• Supported Thermocouple Types: J, K, T, S, R (plus mV input mode)
• Millivolt Input Ranges: ±19.5 mV to ±625 mV (configurable)
• Update Rate:
  • 60 Hz: 60 ms per channel
  • 50 Hz: 70 ms per channel
• Accuracy (at 25°C):
  • Voltage: ±0.2% of full scale
  • Temperature: ±0.15% of reading
• Power Supply: 5 V DC and 3.3 V DC from PLC backplane
• Current Consumption:
  • 5 V: 125 mA (max)
  • 3.3 V: 125 mA (max)
• Operating Temperature: 0°C to +60°C
• Dimensions (W×H×D): 49.5 × 66.8 × 109.2 mm (1.95 × 2.63 × 4.3 in)
• Weight: Approximately 0.4 kg (14.1 oz)
• LED Indicators:
  • Green OK: Backplane power present
  • Amber Fault: Module or channel error

Key Features

1. Multi-Channel Precision Temperature Measurement
   • Accepts 7 thermocouple inputs (J, K, T, S, R) or linear mV signals for versatile data acquisition.
   • Delivers 16-bit resolution and high accuracy for critical process temperature monitoring.
2. Integrated Cold Junction Compensation (CJC)
   • Automatically compensates for ambient temperature changes at the module terminals, ensuring stable and precise temperature readings without external circuitry.
3. Backplane-Powered, No External PSU Needed
   • Draws all operating power from the VersaMax PLC backplane, reducing wiring complexity and eliminating external power supply requirements.
4. Per-Channel Configuration & Diagnostics
   • Each channel can be independently set to thermocouple or mV mode.
   • Detects open/short circuits, sensor faults, and out-of-range conditions, reporting alarms to the PLC for proactive maintenance.
5. Rugged & Compact Industrial Design
   • Built for 0°C to +60°C operation, with resistance to vibration and electrical noise.
   • Compact form factor saves rack space in VersaMax PLC systems.

Application Scenarios

• Process Manufacturing
  • Chemical & Petrochemical Plants: Monitors reactor, furnace, and pipeline temperatures.
  • Glass & Ceramics: Tracks kiln and melt temperatures for quality control.
• Energy & Utilities
  • Power Generation: Measures boiler, turbine, and exhaust gas temperatures.
  • Water Treatment: Monitors temperature in digesters and heat exchangers.
• Factory Automation
  • Food & Beverage: Controls oven, sterilizer, and refrigeration unit temperatures.
  • HVAC & Building Automation: Logs temperatures in large facilities and cleanrooms.
• Metals & Heavy Industry
  • Steel Mills: Monitors continuous caster and reheat furnace temperatures.
  • Heat Treatment: Controls tempering, annealing, and quenching processes。
