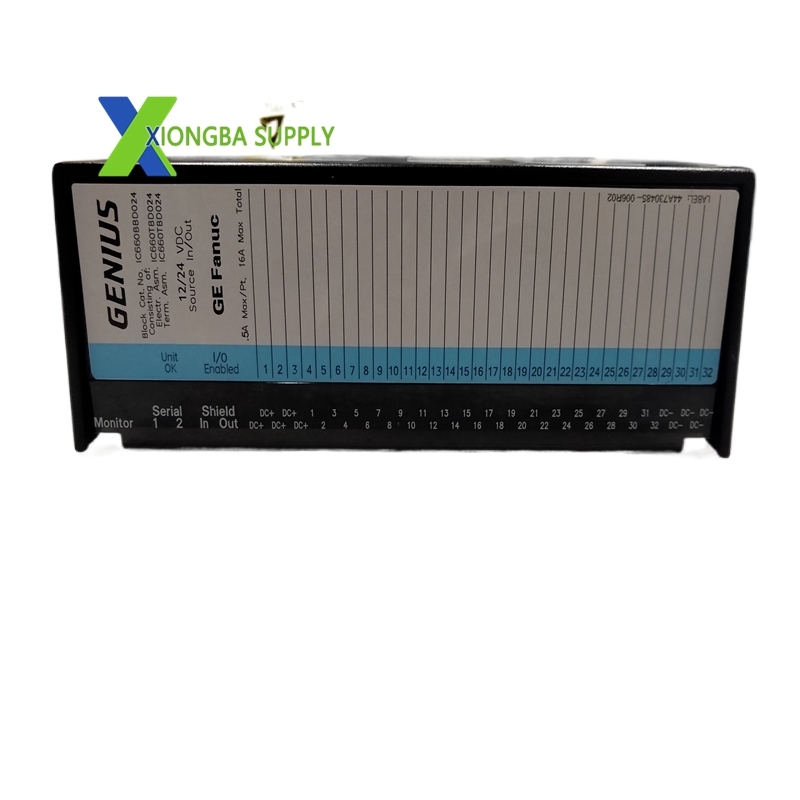

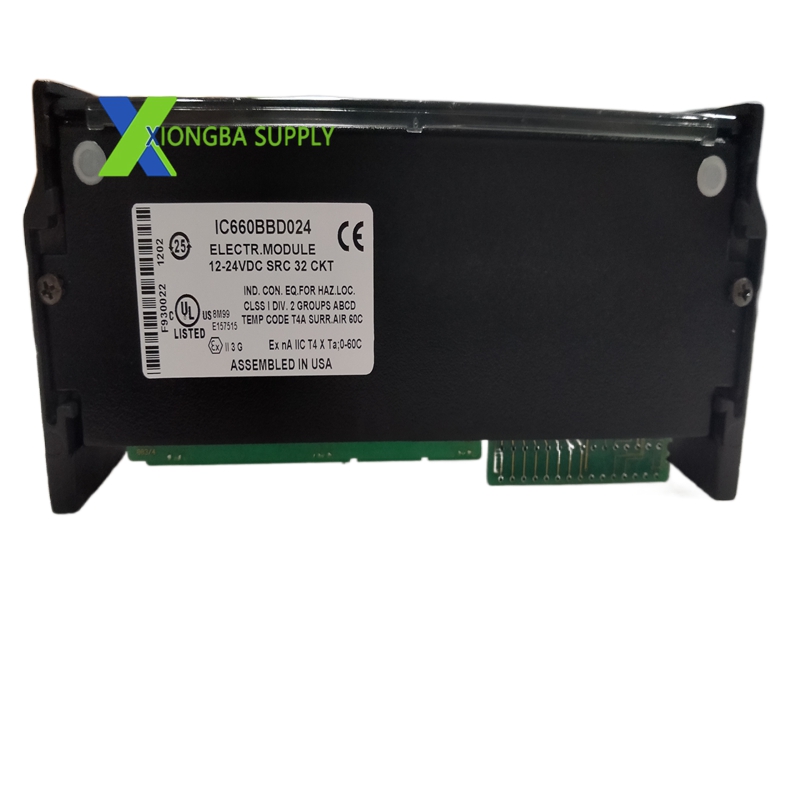

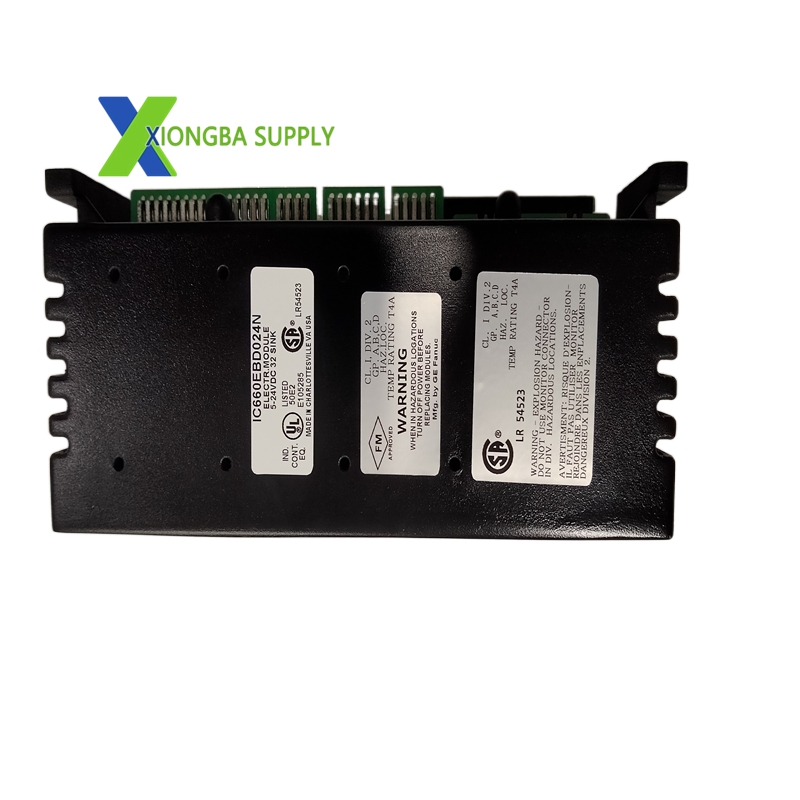

GE IC660BBD024 Genius 32‑Point Discrete Source I/O Block

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC660BBD024
• Series: Genius I/O System / GE Fanuc Series 90‑30/90‑70 PLC
• I/O Configuration: 32 individually configurable circuits (input, output, or output with feedback)
• Input Voltage: 12 VDC (8–12 VDC ON) / 24 VDC (18–24 VDC ON); 10–30 VDC operating range
• Input Impedance: 3.3 kΩ
• Input Processing Time: 1.4 ms typical + selectable filter delay (1–100 ms)
• Output Rating: 0.5 A per channel steady‑state; 4 A inrush (10 ms max)
• Total Output Current: 16 A maximum
• Output Turn‑On Delay: 0.5 ms maximum
• Output OFF Leakage Current: ≤10 µA
• Isolation: Channel‑to‑channel, group‑to‑group, block‑to‑bus isolation
• Power Supply: 12/24 VDC ±10%
• Power Consumption: 150 mA typical; 300 mA maximum
• Dimensions (H×W×D): 224 × 89 × 100 mm (8.8 × 3.5 × 3.9 in)
• Weight: 1.47 kg (3.25 lbs)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non‑condensing)
• Communication: Genius Bus (compatible with Genius network protocols)
• Configuration Tools: Handheld Monitor (v3.7+), Logicmaster 6 Software (v4.02+)
• Approvals: UL, CE, ATEX, IECEx

Key Features

1. 32‑Channel Flexible Configuration
   • Each of the 32 circuits can be independently set as discrete input, tri‑state input, output, or output with feedback, eliminating the need for separate input and output modules.
   • Supports both 2‑wire and 3‑wire proximity sensors and dry‑contact devices for maximum field compatibility.
2. High‑Speed & Precision Performance
   • Fast 1.4 ms input response with selectable noise filtering (1–100 ms) for accurate detection of rapid binary signals.
   • Outputs deliver 0.5 A per channel with 0.5 ms turn‑on delay, ensuring fast, reliable control of solenoids, relays, and contactors.
3. Advanced Self‑Protection & Diagnostics
   • Resettable self‑protecting circuits guard against short circuits, overloads, and over‑temperature conditions, preventing module damage from wiring faults.
   • Comprehensive diagnostics detect open wire, short circuit, overload, no load, and switch failure, reporting status to the PLC for predictive maintenance.
   • LED indicators provide real‑time visual status for power, communication, and channel activity, simplifying on‑site troubleshooting.
4. Rugged Industrial‑Grade Design
   • Operates reliably in 0°C to +60°C temperatures and high humidity, suitable for harsh factory and process environments.
   • Compact, lightweight construction (1.47 kg) allows flexible mounting (right‑side up or upside down) to save cabinet space.
   • No user calibration required; factory‑calibrated for consistent performance over its lifecycle.
5. Seamless Genius Network Integration
   • Connects to the Genius distributed I/O bus, enabling expansion of discrete I/O points across remote locations without long PLC wiring runs.
   • Functions as a Bus Switching Module (BSM) controller when needed, supporting network redundancy and fault tolerance.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Automotive Assembly: Monitors limit switches, proximity sensors, and safety interlocks; controls solenoids, pneumatic valves, and motor starters on production lines.
  • Electronics Manufacturing: Interfaces with photoeyes, proximity sensors, and pushbuttons; drives relays and indicators for conveyor systems and assembly stations.
  • Packaging Machinery: Detects product presence and machine status; controls actuators, motors, and alarms for high‑speed packaging lines.
• Process Control Industries
  • Oil & Gas: Monitors pressure switches, level switches, and valve position indicators; controls solenoid valves and emergency shutdown (ESD) circuits.
  • Water & Wastewater Treatment: Interfaces with flow switches, level floats, and pump status contacts; controls motorized valves, blowers, and chemical feed pumps.
  • Chemical Processing: Monitors safety switches, temperature alarms, and door interlocks; drives relays for mixer motors, transfer pumps, and safety barriers.
• Energy & Power Generation
  • Thermal Power Plants: Monitors boiler limit switches, fan status, and burner interlocks; controls dampers, fuel valves, and auxiliary motors.
  • Renewable Energy: Interfaces with wind turbine safety switches, solar panel array disconnects, and grid interlock relays.
• Infrastructure & Building Automation
  • HVAC Systems: Monitors air flow switches, filter pressure switches, and damper end switches; controls fan motors, chillers, and boiler relays.
  • Smart Buildings: Interfaces with door contacts, motion sensors, and fire alarm devices; controls lighting circuits, access gates, and elevator interlocks.
