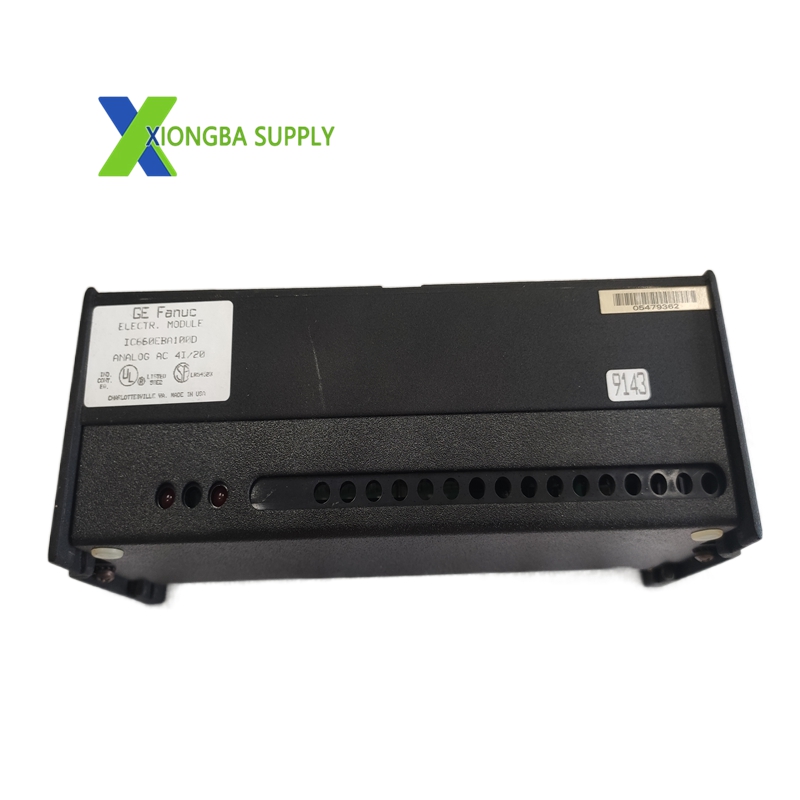

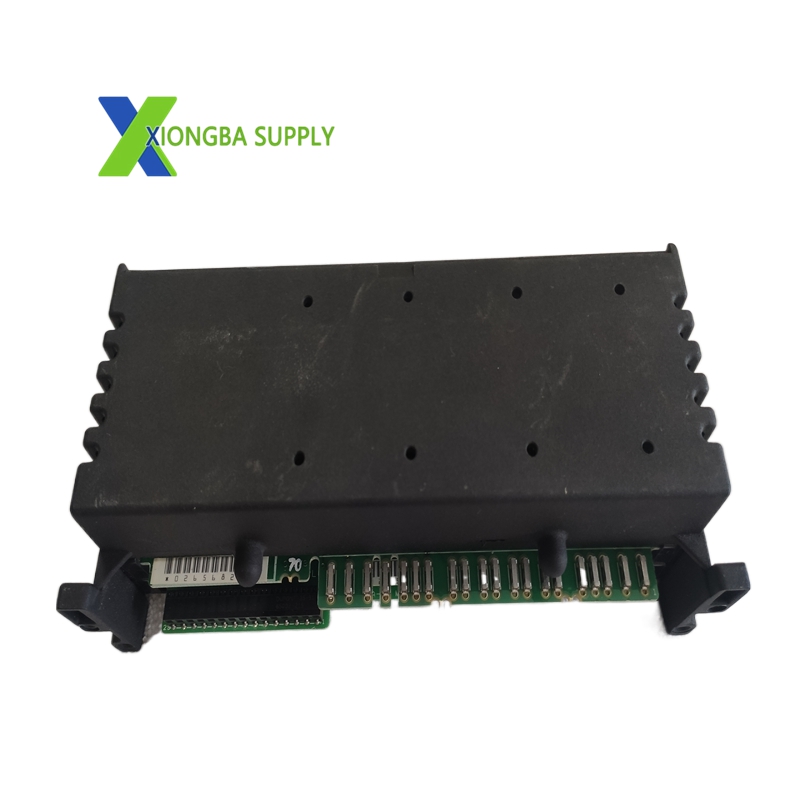

GE IC660BBA104K Genius Analog Current-Source I/O Block

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC660BBA104K
• Series: Genius I/O System / GE Fanuc Series 90-30 PLC
• I/O Configuration: 4 × Analog Inputs (4–20 mA), 2 × Analog Outputs (4–20 mA)
• Input Signal Range: 4–20 mA (overrange: 0–25 mA)
• Output Signal Range: 4–20 mA (overrange: 0–24 mA)
• Input Resolution: 1 µA
• Output Resolution: 6 µA
• Input Accuracy: ±0.1% full scale at 25°C
• Output Accuracy: ±0.15% full scale at 25°C
• Input Conversion Time: 16.6 ms to 400 ms (user-selectable)
• Output Update Time: 6–8 ms (typical)
• Isolation: 1500 V RMS (channel-to-channel, group-to-group, block-to-block)
• Power Supply: 115 VAC (93–132 VAC) ±15% or 125 VDC (105–145 VDC) ±10%
• Power Consumption: 600 mA max
• Dimensions (H×W×D): 224.4 × 84.8 × 99.3 mm (8.83 × 3.34 × 3.91 in)
• Weight: 1.8 kg (4 lbs)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non-condensing)
• Communication Interface: Genius Bus (compatible with IC660BSM21 Bus Switching Module)
• Configuration Tool: Handheld Monitor (v3.7+), Logicmaster 6 Software (v4.02+)

Key Features

1. Integrated 4-In/2-Out Analog Current-Source Design
   • Combines four 4–20 mA current inputs and two 4–20 mA current outputs in one compact block, reducing hardware complexity and cabinet space.
   • Each input provides 24 VDC loop power for direct connection to 2-wire transmitters (e.g., pressure, temperature, flow sensors) without external power supplies.
2. High Precision & Signal Integrity
   • Delivers ±0.1% input accuracy and ±0.15% output accuracy with 12-bit resolution, ensuring reliable, repeatable measurements and control.
   • Features 1500 V RMS isolation between channels, groups, and the Genius bus, eliminating ground loops and protecting against electrical transients in harsh industrial environments.
3. Software-Configurable & Scalable
   • Supports user-defined linear scaling to convert raw analog values into engineering units (e.g., °C, bar, m³/h) via configuration software.
   • Connects seamlessly to the Genius distributed I/O network, allowing expansion of analog I/O points across large plants without rewiring the main PLC panel.
4. Comprehensive On-Board Diagnostics
   • Detects input open wire, overrange/underrange, and high/low alarm conditions.
   • Monitors output feedback errors and internal faults, reporting status to the PLC for predictive maintenance and quick troubleshooting.
5. Rugged Industrial-Grade Construction
   • Operates reliably in extreme temperatures (-40°C to +70°C) and high humidity, suitable for outdoor and harsh process environments.
   • Requires no user calibration during installation or maintenance, reducing downtime and service costs.

Application Scenarios

• Process Control Industries
  • Oil & Gas: Interfaces with pressure, level, and flow transmitters; controls control valves and variable frequency drives (VFDs) for pipeline and refinery automation.
  • Chemical & Petrochemical: Monitors reactor temperatures, tank levels, and pH sensors; regulates dosing pumps and mixing valves in batch processes.
  • Water & Wastewater Treatment: Connects to turbidity, dissolved oxygen, and level sensors; controls pumps, blowers, and chemical feeders for plant-wide monitoring.
• Factory Automation & Discrete Manufacturing
  • Food & Beverage: Monitors temperature, pressure, and viscosity in processing lines; controls conveyor speeds and packaging machine actuators.
  • Pharmaceuticals: Ensures precise control of temperature and humidity in clean rooms; interfaces with analytical instruments for quality monitoring.
• Energy & Power Generation
  • Thermal Power Plants: Monitors boiler pressure, steam temperature, and fuel flow; controls feedwater pumps and dampers for efficient combustion.
  • Renewable Energy: Integrates wind turbine sensor data and solar plant environmental monitors via long-distance 4–20 mA signal transmission.
• Infrastructure & Building Automation
  • HVAC Systems: Regulates chiller/boiler temperatures, air flow, and pressure in large commercial buildings and data centers.
  • Smart Buildings: Monitors energy consumption, water flow, and air quality; controls lighting and ventilation systems for energy efficiency。
