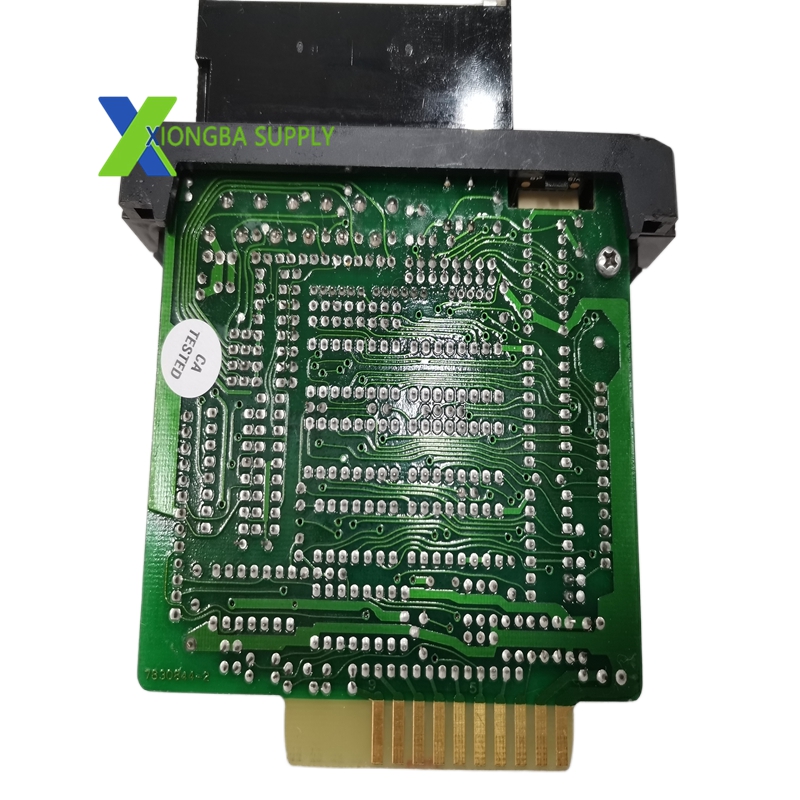

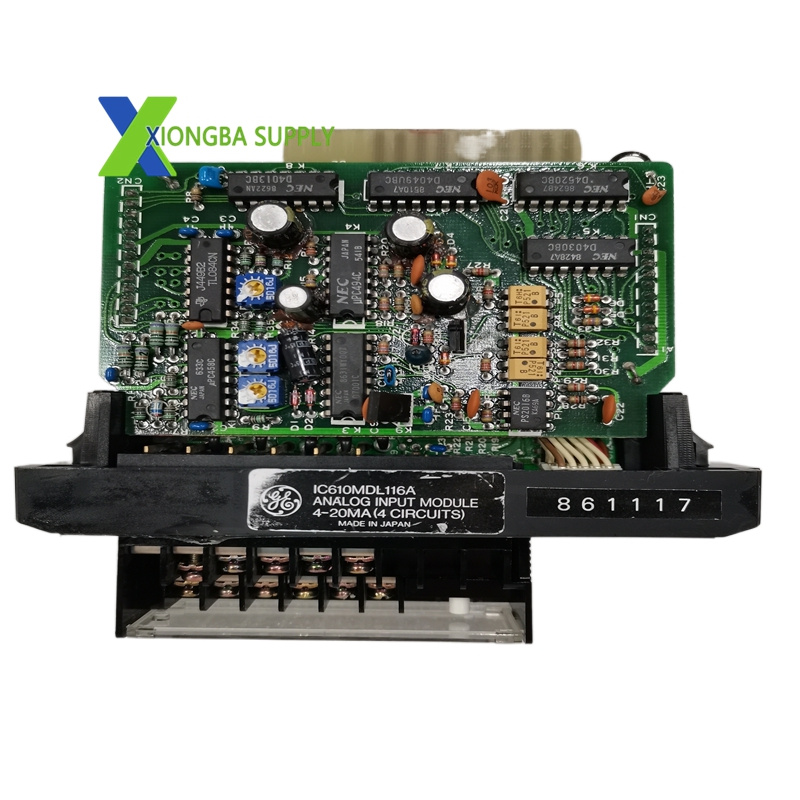

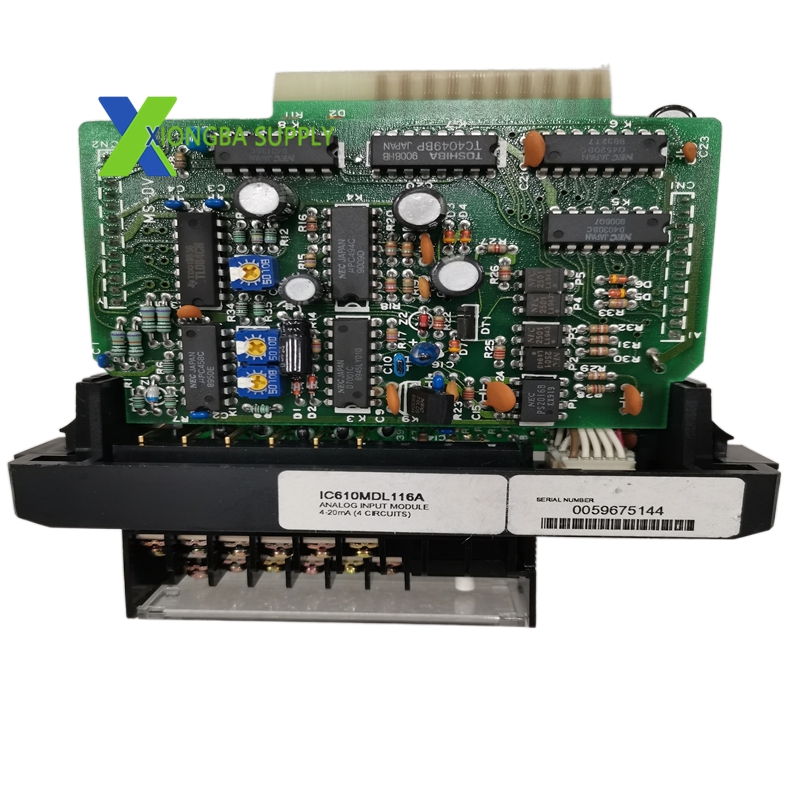

GE IC610MDL116A Analog Input Module

Technical Specifications

• Manufacturer: General Electric (GE) Fanuc / Emerson Automation Solutions
• Model: IC610MDL116A
• Series: GE Series One PLC System
• Type: 4-Channel Analog Input Module
• Input Channels: 4 independent, differential channels
• Input Ranges: Jumper-selectable per channel: 4–20 mA or 1–5 V DC
• Resolution: 8-bit binary
• Conversion Method: Successive approximation
• Max Conversion Time: 2 ms per channel
• Input Impedance: Voltage: >1 MΩ; Current: 250 Ω
• Isolation: 1500 V RMS (input-to-backplane); 500 V RMS (channel-to-channel)
• Power Supply: 5 V DC from PLC backplane; 25 V DC external (65 mA)
• Current Consumption: 55 mA (9 V DC)
• Dimensions (W×H×D): 127 × 51 × 127 mm (5.0 × 2.0 × 5.0 in)
• Weight: 0.2 kg (7.1 oz)
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non-condensing)
• LED Indicators: Module Power, Channel Status, Fault
• Component Grade: Industrial-grade, vibration-resistant, EMI-shielded

Key Features

1. Multi-Range Analog Signal Acquisition
   • Offers 4 independent differential channels with jumper-selectable 4–20 mA / 1–5 V DC ranges, compatible with standard industrial sensors and transmitters.
   • Converts analog signals to 8-bit digital values with ±0.8% linearity error (25°C) for precise measurement.
2. High-Speed & Accurate Conversion
   • Uses successive approximation for fast (2 ms max) and reliable analog-to-digital conversion, supporting real-time process control.
   • Provides 8-bit binary resolution and 4-bit channel status data for diagnostic visibility.
3. Robust Electrical Isolation & Noise Immunity
   • Delivers 1500 V RMS input-to-backplane isolation and 500 V RMS channel-to-channel isolation, protecting the PLC from electrical transients and ground loops.
   • EMI-shielded design and industrial components ensure stable operation in noisy environments.
4. Compact & Rugged Form Factor
   • Low-profile, space-saving design fits standard GE Series One PLC racks.
   • Withstands vibration, shock, and wide temperature fluctuations (0°C to +55°C) for harsh industrial use.
5. Mechanical Keying & Easy Installation
   • Features mechanical keying to prevent incorrect module insertion, enhancing system reliability.
   • Plugs directly into Series One racks, with latch-on design for secure mounting and easy replacement.
6. Diagnostic LEDs & System Integration
   • Equipped with dedicated LEDs for power, channel status, and faults, enabling quick on-site troubleshooting.
   • Seamlessly integrates with GE Series One PLCs via the backplane bus, exchanging data transparently with the user program.

Application Scenarios

• Process Control Industries
  • Chemical & Petrochemical Plants: Monitors pressure, temperature, and flow via 4–20 mA sensors for reactor and pipeline control.
  • Water & Wastewater Treatment: Measures tank levels, pH, and turbidity for pump and valve regulation.
• Factory Automation & Discrete Manufacturing
  • Food & Beverage: Tracks temperature, humidity, and conveyor speed for production line control.
  • Packaging Machinery: Integrates with pressure and position sensors for precise packaging control.
• Energy & Power Generation
  • Thermal Power Plants: Acquires boiler temperature, steam pressure, and fuel flow data for combustion control.
  • HVAC Systems: Monitors building temperature, humidity, and air flow for energy-efficient climate control.
• Industrial Machinery & Heavy Equipment
  • Metalworking: Measures hydraulic pressure and spindle temperature for machine tool monitoring.
  • Pharmaceutical: Controls reactor temperature and pressure for batch process consistency。
