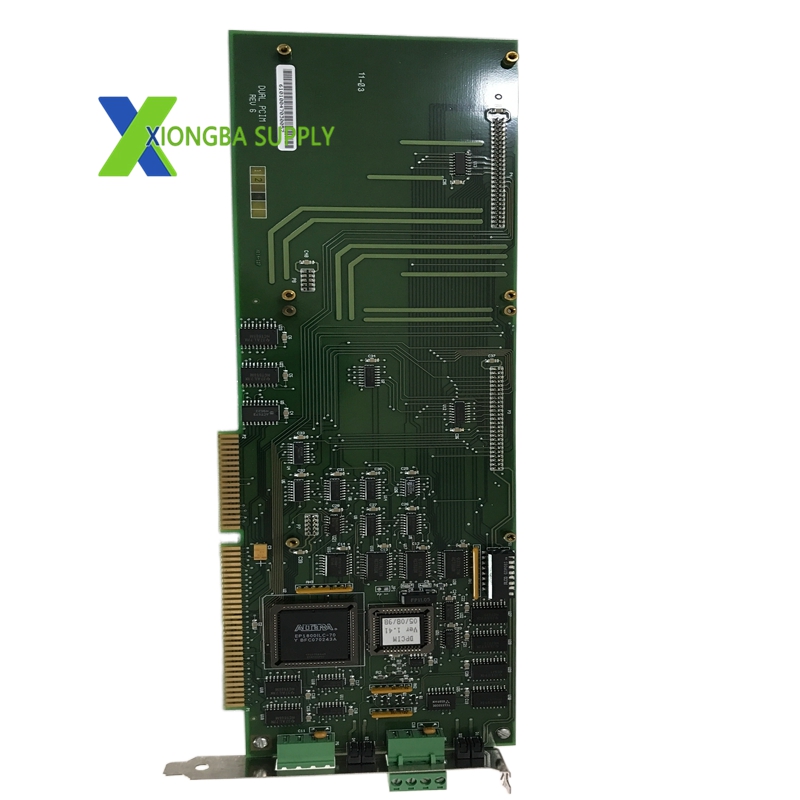

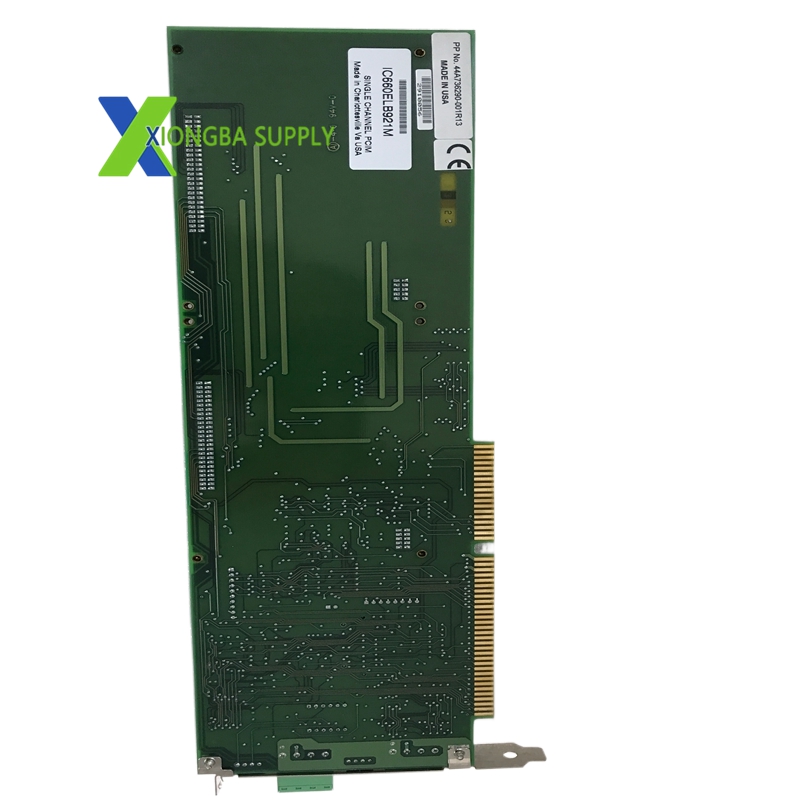

GE IC660ELB921H Single‑Channel Genius I/O PC Interface Module (PCIM)

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC660ELB921H
• Series: Genius I/O System / PCIM Series
• Form Factor: Single‑slot AT‑style ISA board
• Channel Configuration: Single‑channel (one daughterboard)
• Host Compatibility: IBM PC/AT/XT and compatible industrial PCs
• Logic Power: 5 VDC ±5%, 400 mA typical
• Field Power: 24 VDC, 0.5 A; power consumption: 3.5 W
• I/O Data Capacity: 8,000 input points, 8,000 output points
• Bus Loading/Drive: 1 LS TTL per input line; 10 LS TTL per output line
• Communication Protocol: Genius Bus (proprietary GE Fanuc protocol)
• Operating Temperature: –40°C to +70°C
• Storage Temperature: –40°C to +85°C
• Relative Humidity: 5%–95% (non‑condensing)
• Dimensions (H×W×D): 175 × 107 × 30 mm (6.9 × 4.2 × 1.2 in)
• Weight: 0.45 kg (1.0 lb)
• Configuration: DIP switch for I/O port address; EEPROM for setup data
• Software Support: Compatible with Handheld Monitor, Logicmaster 6, Proficy Machine Edition

Key Features

1. Single‑Channel Genius Bus Connectivity
   • Equipped with one independent daughterboard to interface with a single Genius bus, supporting communication with up to 30 bus devices.
   • Enables the host PC to function as a primary or secondary bus controller, with full access to remote I/O blocks, sensors, and actuators.
2. High‑Density Data Handling
   • Processes up to 8,000 input and 8,000 output points, accommodating large‑scale distributed I/O networks without additional hardware.
   • Supports input‑only or output‑only operating modes for flexible system configuration.
3. Robust Industrial Design
   • Operates reliably in extreme temperatures (–40°C to +70°C) and high humidity, suitable for factory floor and outdoor automation environments.
   • Built‑in surge protection safeguards against power surges and voltage spikes, ensuring long‑term durability.
4. Simplified Configuration & Diagnostics
   • Features a single DIP switch for I/O control port address setup and EEPROM for storing Genius network configuration data.
   • Provides advanced on‑board diagnostics for fault detection, including bus communication errors and device status alerts, enabling rapid troubleshooting.
5. Seamless Software Integration
   • Fully compatible with GE Fanuc configuration tools, allowing independent setup of the daughterboard via supplied software.
   • Works with standard industrial communication software, facilitating data exchange between the Genius network and PC‑based HMI, SCADA, or MES systems.

Application Scenarios

• Industrial Automation System Integration
  • Connects PC‑based control systems to Genius distributed I/O networks in manufacturing plants, enabling centralized monitoring and control of production lines.
  • Serves as a data acquisition interface for collecting real‑time process data from remote sensors and actuators for analysis and reporting.
• Process Control & Monitoring
  • Used in oil and gas, chemical, and water treatment industries to link host PCs with Genius I/O blocks monitoring pressure, temperature, flow, and level sensors.
  • Enables PC‑based SCADA systems to supervise and control valves, pumps, and variable frequency drives (VFDs) across large process facilities.
• Legacy System Modernization
  • Integrates older IBM PC/XT/AT‑based industrial computers with modern Genius I/O networks, extending the lifespan of legacy control systems.
  • Facilitates migration from dedicated PLCs to PC‑based control architectures while preserving existing Genius field I/O infrastructure.
• Research & Development
  • Utilized in industrial R&D labs for prototyping and testing distributed control systems with Genius bus communication.
  • Provides a flexible platform for developing custom monitoring and control applications requiring high‑density I/O data handling.
