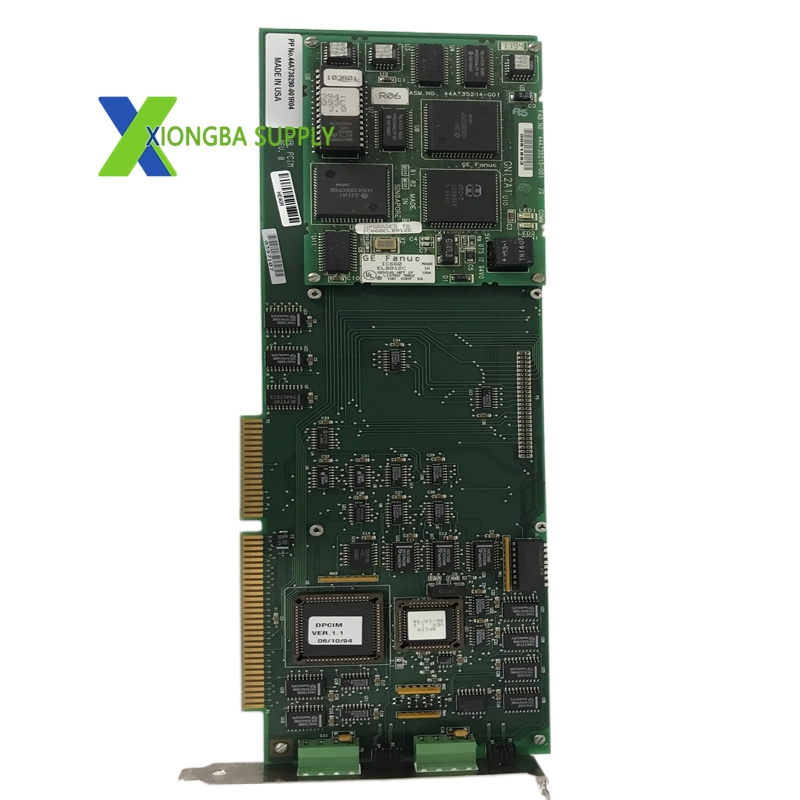

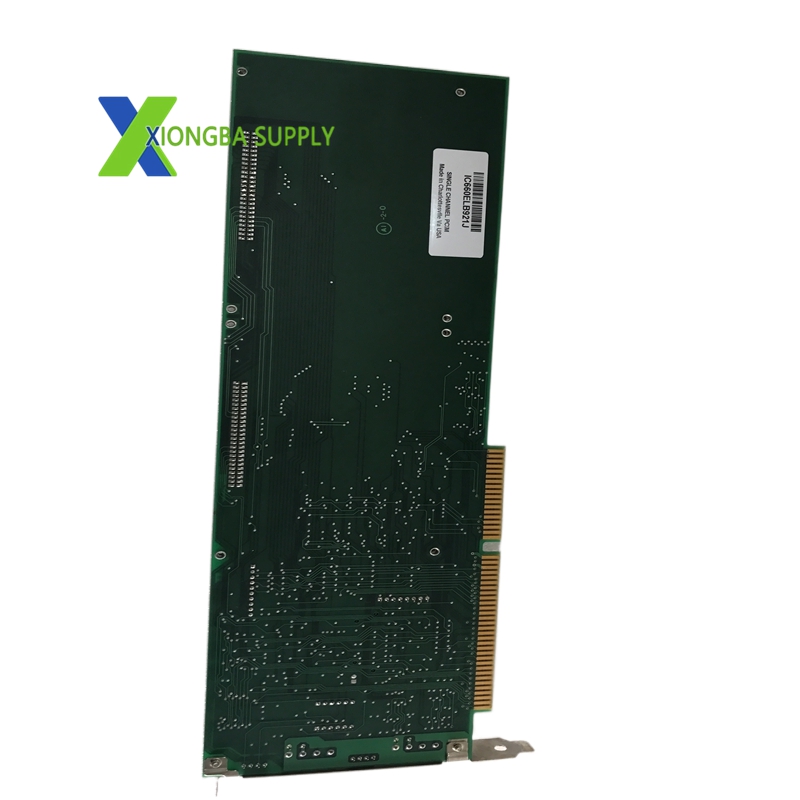

GE IC660ELB921J Genius PC Interface Module (PCIM)

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC660ELB921J
• Series: Genius I/O System
• Board Type: Single‑slot AT‑style ISA board
• Compatible Computers: IBM PC/AT/XT and compatible industrial PCs
• Daughterboard Support: Works with IC660ELB912 daughterboard (single)
• Memory Requirements: 4 bytes host memory + 16 KB for daughterboard
• Power Supply: 5 VDC ±10%, 400 mA max (from ISA backplane)
• Communication Rate: 38.4 Kbps, 76.8 Kbps, 153.6 Kbps (standard/extended)
• I/O Mapping: 8,000 input points + 8,000 output points
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% (non‑condensing)
• Status Indicators: LEDs for daughterboard OK, communication OK, and power status
• Isolation: 1500 V RMS between PC and Genius bus

Key Features

1. Seamless PC‑to‑Genius Bus Connectivity
   • Provides a direct ISA‑bus interface for industrial PCs to access the Genius I/O network, eliminating the need for a separate PLC as a bus master.
   • Supports peer‑to‑peer communication with all Genius I/O blocks, including analog, digital, and specialty modules.
2. Enhanced Performance & Reliability
   • Delivers faster data transfer speeds and stronger processing power compared to the IC660ELB921H, ensuring low‑latency data exchange in real‑time applications.
   • Features hardware‑based electrical isolation (1500 V RMS) that protects the PC from industrial noise, voltage spikes, and ground loops.
3. Flexible Configuration & Operation
   • Software‑configurable as input‑only, output‑only, or bidirectional to match specific application needs.
   • Comes with dedicated configuration software for independent setup of the daughterboard and seamless integration with existing Genius networks.
4. Comprehensive Diagnostics & Monitoring
   • Onboard LEDs provide real‑time status feedback for power, communication, and daughterboard health, enabling quick troubleshooting.

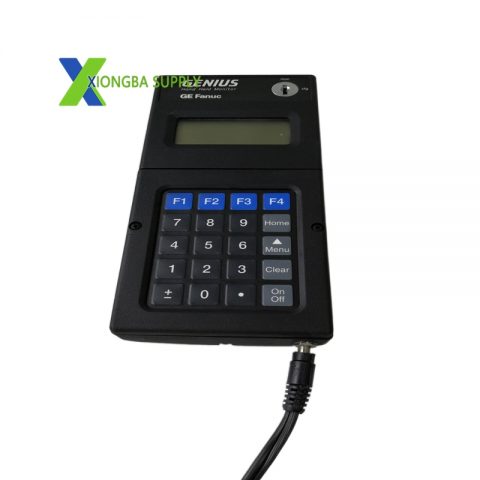

   • Supports handheld monitor (HHM) connection for on‑site network diagnostics and module status checks.
5. Robust Industrial Design
   • Built as a single‑slot, compact AT‑style board for easy installation in standard industrial PC chassis.
   • Operates reliably in 0°C to +70°C temperatures, suitable for factory floors, process plants, and other harsh industrial environments.

Application Scenarios

• Industrial PC‑Based Control Systems
  • Factory Automation: Connects industrial PCs to Genius I/O networks for machine control, assembly line monitoring, and data logging without a dedicated PLC.
  • Process Monitoring: Enables PC‑based SCADA systems to interface with Genius analog/digital I/O blocks for real‑time temperature, pressure, and flow data acquisition.
• Genius Network Configuration & Maintenance
  • System Setup: Used by engineers to configure, test, and commission Genius I/O networks during system deployment.
  • Diagnostics & Troubleshooting: Serves as a maintenance tool to monitor network health, identify faulty modules, and perform remote I/O device resets.
• Custom Industrial Control Solutions
  • Research & Development: Integrates with user‑developed PC‑based control systems for prototyping and testing new automation algorithms.
  • Legacy System Upgrades: Connects modern industrial PCs to existing Genius I/O networks, extending the lifespan of legacy automation infrastructure。
