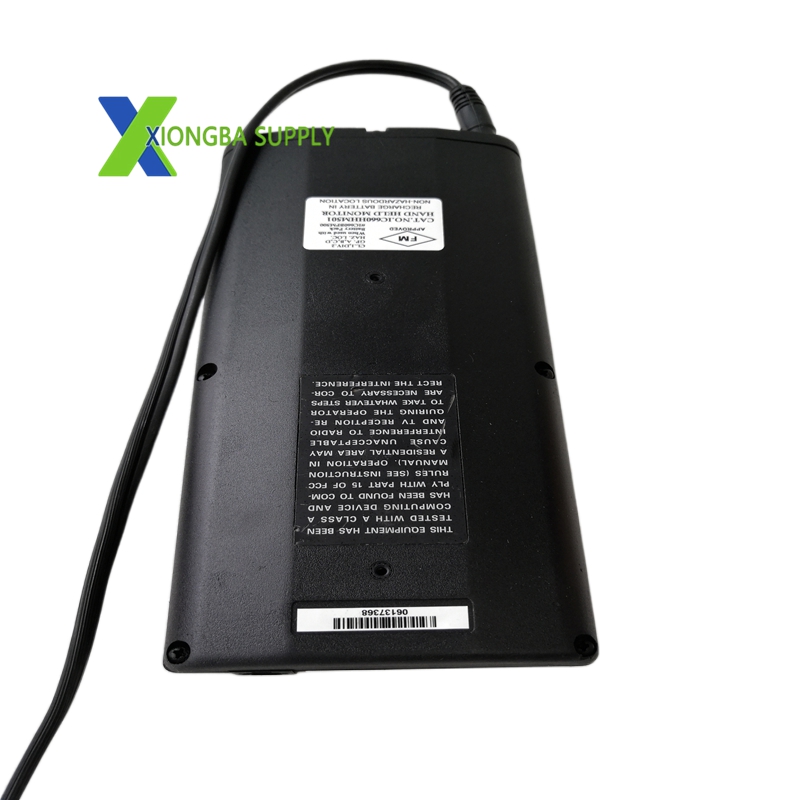

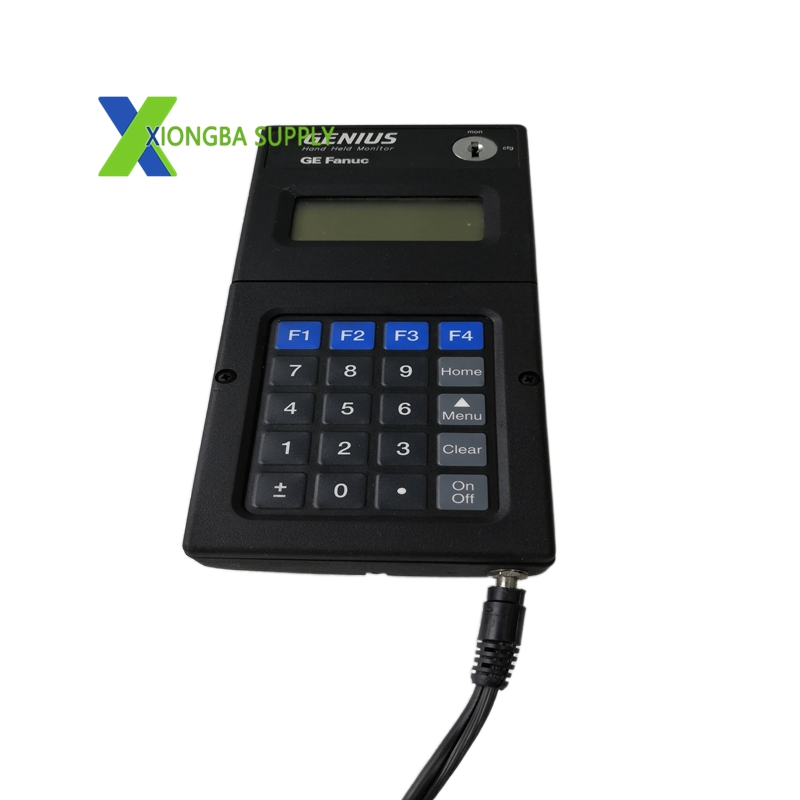

GE IC660HHM501N Genius Handheld Monitor (HHM)

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC660HHM501N
• Series: Genius I/O System
• Display: 4-line × 16-character backlit LCD
• Keypad: 20-key sealed membrane keypad (industrial-grade, dust/water-resistant)
• Languages: English, German, French, Italian
• Power Options:
  • Built-in rechargeable battery pack (portable operation)
  • External 115 VAC / 230 VAC (47–63 Hz) for charging/primary power
• Power Consumption: <15 W
• Dimensions (H×W×D): 275.6 × 109.2 × 57.2 mm (10.85 × 4.30 × 2.25 in)
• Weight: 0.73 kg (1.6 lbs) (unit only); 0.82 kg (1.8 lbs) (with protective case)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Communication: Direct Genius bus connection (compatible with all Genius I/O modules)
• Security: Keyswitch to restrict access to sensitive functions (e.g., configuration, I/O forcing)
• Certifications: CE, UL (industrial safety compliance)

Key Features

1. Portable & Standalone Operation
   • Operates via rechargeable battery for full mobility in the field, independent of PLCs, HMIs, or external power sources.
   • Lightweight, compact design with a rugged protective case for harsh industrial use (dust, moisture, vibration resistance).
2. Full Genius Network Access & Control
   • Connects to any Genius bus node to view real-time discrete/analog I/O values, network status, and device diagnostics.
   • Performs on-site configuration of Genius I/O blocks (e.g., scaling, fault thresholds, communication parameters) without a programming terminal.
   • Supports I/O forcing (manual override of discrete/analog points) for testing, commissioning, and troubleshooting.
3. Comprehensive Diagnostics & Troubleshooting
   • Detects and displays bus errors, node faults, open wires, overrange/underrange signals, and module health status.
   • Monitors bus scan time, global data addresses, CPU memory data, and device descriptions for full network visibility.
   • Clears fault codes and resets devices directly from the handheld unit to minimize downtime.
4. Multi-Language & User-Friendly Interface
   • Menu-driven navigation with a backlit LCD for clear viewing in low-light or bright industrial environments.
   • Four selectable languages (English, German, French, Italian) to support global operation teams.
   • Sealed membrane keypad for reliable operation with gloved hands and resistance to dust, oil, and moisture.
5. Enhanced Security & Reliability
   • Keyswitch restricts unauthorized access to critical functions (e.g., configuration changes, I/O forcing), protecting process integrity.
   • Industrial-grade construction with wide temperature/humidity tolerance for consistent performance in extreme conditions.
   • No user calibration required; plug-and-play connectivity to Genius bus for quick deployment.

Application Scenarios

• Industrial Automation & Manufacturing
  • Automotive Assembly: Tests and troubleshoots Genius I/O modules controlling robotic arms, conveyors, and assembly line sensors; forces I/O points for line commissioning.
  • Food & Beverage: Monitors and configures analog I/O blocks for temperature, pressure, and flow control in processing lines; diagnoses sensor faults on-site.
• Process Control Industries
  • Oil & Gas: Configures and monitors remote Genius I/O modules for pipeline pressure, level, and flow measurements; troubleshoots communication faults in distributed networks.
  • Chemical & Petrochemical: Calibrates analog I/O blocks for reactor temperature/pressure control; diagnoses and clears bus errors during batch processes.
  • Water & Wastewater Treatment: Monitors turbidity, dissolved oxygen, and level sensors via Genius I/O; configures pump and valve control parameters without a central HMI.
• Power & Energy Generation
  • Thermal Power Plants: Diagnoses Genius I/O modules for boiler pressure, steam temperature, and fuel flow monitoring; forces I/O points for system testing during shutdowns.
  • Renewable Energy: Configures and monitors wind turbine and solar farm Genius I/O networks; troubleshoots sensor and communication faults in remote locations.
• System Commissioning & Maintenance
  • Site Installation: Validates Genius network connectivity, configures I/O blocks, and tests signal integrity during initial system setup—no PLC or HMI required.
  • Preventive Maintenance: Performs routine network diagnostics, checks module health, and verifies I/O accuracy to avoid unplanned downtime.
  • Emergency Troubleshooting: Rapidly locates and resolves Genius bus faults, I/O module errors, and signal issues in the field, minimizing production disruption。
