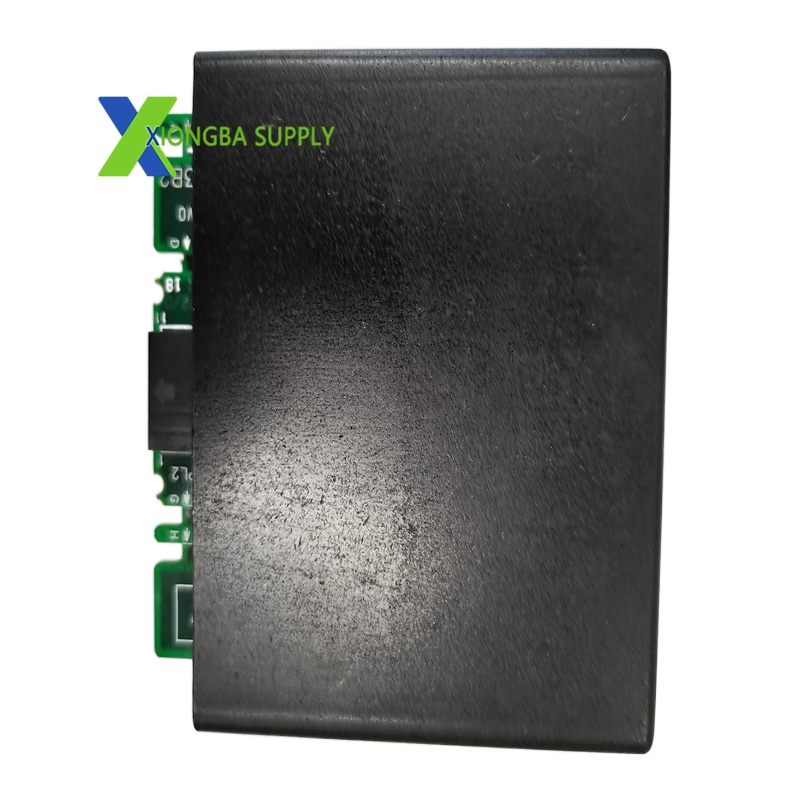

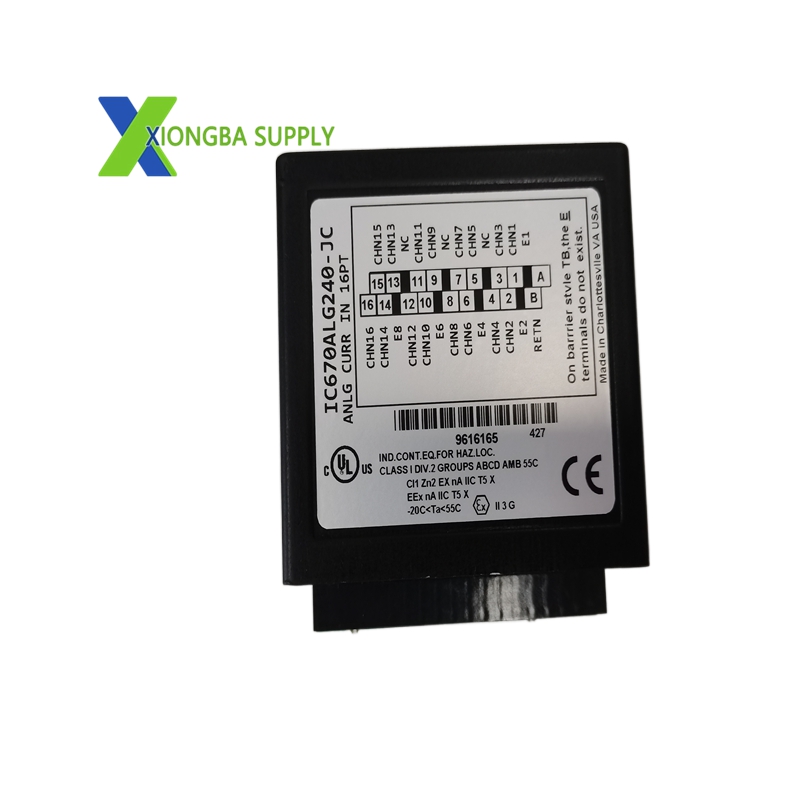

GE IC670ALG240-JC 16-Channel Analog Current Input Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC670ALG240-JC
• Series: Field Control (IC670) / Genius Distributed I/O System
• Channel Configuration: 16 single-ended current input channels (grouped)
• Input Signal Ranges: 4–20 mA (standard), 0–20 mA (optional)
• Resolution: 16-bit analog-to-digital converter (ADC)
• Accuracy: ±0.1% full-scale (FS) at 25°C
• Input Impedance: 20–28 kΩ
• Conversion Rate: 10 ms per channel (50 Hz/60 Hz filtering selectable)
• Power Supply: +24 VDC (backplane-powered)
• Current Consumption: ≤251 mA
• Isolation: 250 VAC continuous (input-to-logic/ground); 1500 VAC for 1 minute (channel-to-channel)
• Dimensions (H×W×D): Half-height, standard Field Control module size
• Weight: Approx. 0.2 kg (0.44 lbs)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL (industrial safety compliance)
• Wiring Support: ANSI Type 2 2-wire and 3-wire current transmitters

Key Features

1. High-Density 16-Channel Design
   • Integrates 16 independent single-ended current input channels in a compact half-height form factor, optimizing cabinet space and reducing system costs.
   • Supports simultaneous sampling of multiple field signals, ideal for large-scale process monitoring applications.
2. High Precision & Reliability
   • 16-bit ADC resolution ensures accurate capture of subtle signal changes, critical for precise process control.
   • ±0.1% FS accuracy and excellent linearity minimize measurement errors in industrial environments.
   • Rugged industrial-grade construction with wide temperature tolerance (-40°C to +70°C) delivers stable performance in extreme conditions (dust, moisture, vibration).
3. Flexible Signal Compatibility
   • Accepts industry-standard 4–20 mA and 0–20 mA current signals, compatible with most industrial sensors (temperature, pressure, flow, level) and transmitters.
   • Supports both 2-wire and 3-wire transmitter wiring, adapting to diverse field installation requirements.
4. Advanced Diagnostics & Protection
   • Built-in diagnostic functions detect overrange, underrange, open-circuit, and short-circuit conditions, enabling real-time fault alerts and quick troubleshooting.
   • High isolation (250 VAC continuous) protects the PLC backplane and other modules from electrical noise, voltage spikes, and ground loops, enhancing system safety.
5. Easy Integration & Maintenance
   • Seamless compatibility with GE Fanuc Genius I/O networks and Series 90-30/90-70 PLCs, enabling plug-and-play installation via the Field Control backplane.
   • Modular design simplifies system expansion and replacement, reducing maintenance time and downtime.
   • No user calibration required; factory-calibrated for immediate deployment.

Application Scenarios

• Process Control Industries
  • Oil & Gas: Monitors pipeline pressure, flow rates, and tank levels via 4–20 mA transmitters; supports remote wellhead and refinery process monitoring.
  • Chemical & Petrochemical: Captures reactor temperature, pressure, and pH values; ensures precise control of batch processes and hazardous material handling.
  • Water & Wastewater Treatment: Measures turbidity, dissolved oxygen, and flow in treatment tanks; monitors pump and valve status for efficient plant operation.
• Manufacturing & Industrial Automation
  • Automotive Assembly: Monitors sensor data for robotic arm positioning, conveyor speed, and assembly line quality control.
  • Food & Beverage: Tracks temperature, pressure, and flow in processing lines (e.g., pasteurization, filling); ensures compliance with hygiene and safety standards.
  • Pharmaceuticals: Provides accurate monitoring of environmental conditions (temperature, humidity) and production parameters in cleanroom facilities.
• Power & Energy Generation
  • Thermal Power Plants: Monitors boiler steam temperature, pressure, and fuel flow; supports turbine performance monitoring and load control.
  • Renewable Energy: Collects data from wind turbine sensors (speed, vibration) and solar farm irradiance/temperature sensors for performance optimization.
• Building & Infrastructure
  • HVAC Systems: Monitors temperature, humidity, and air flow in large commercial buildings and data centers for energy efficiency.
  • Smart Grids: Captures electrical load data and power quality parameters for grid monitoring and demand response management.
