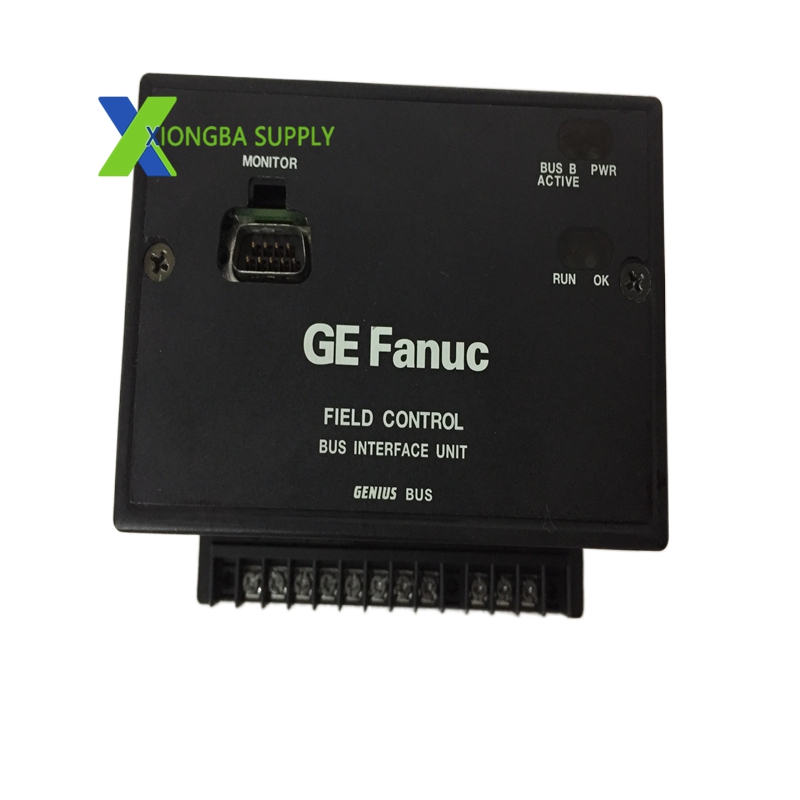

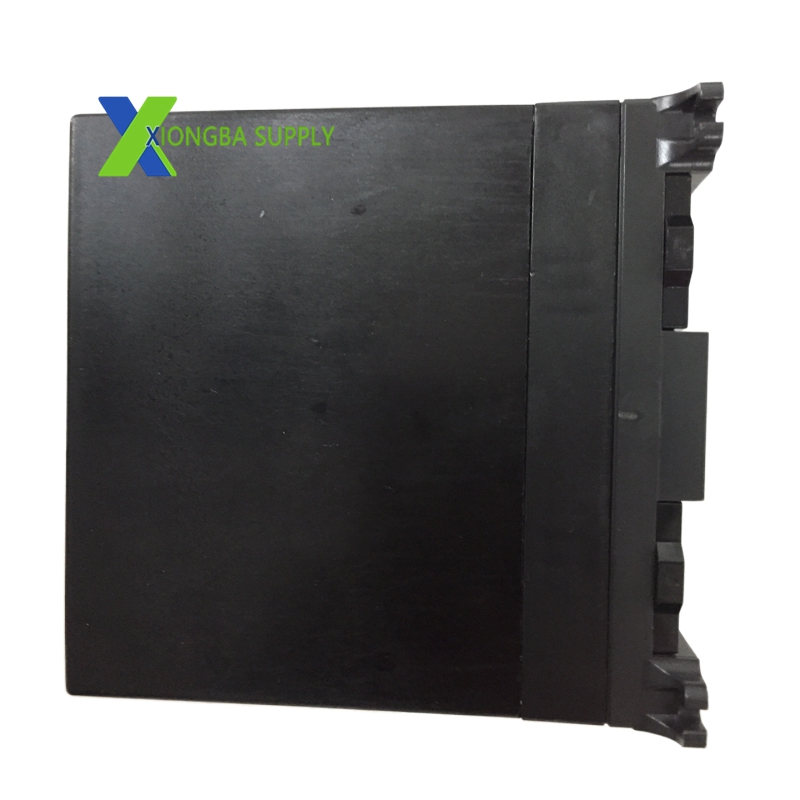

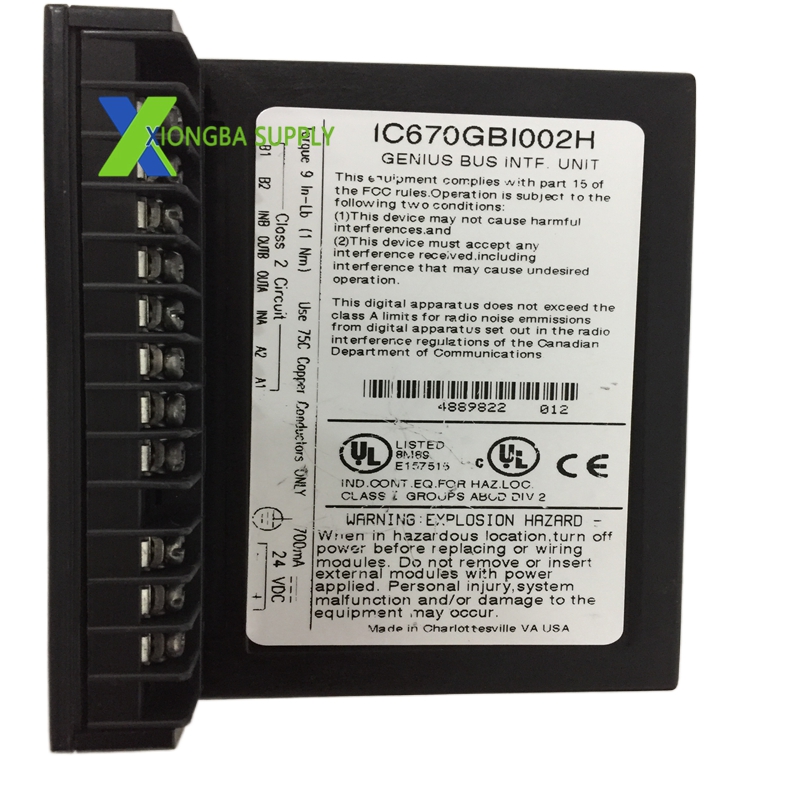

GE IC670GBI002 Field Control Bus Interface Unit (BIU)

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC670GBI002
• Series: Field Control / Genius I/O System
• Communication Protocol: Genius Bus
• I/O Module Capacity: Supports up to 8 Field Control I/O modules
• Data Exchange: 128 bytes input / 128 bytes output per scan
• Power Supply: 18–30 VDC (nominal 24 VDC)
• Power Consumption: 16.8 W (full load)
• Current Output to Modules: 1.4 A
• Dimensions (H×W×D): 24 × 101 × 94 mm (0.94 × 3.98 × 3.70 in)
• Weight: 0.68 kg (1.50 lbs)
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Protection Rating: IP55 (dust and moisture-resistant)
• Mounting: Standard DIN rail
• Certifications: CE, UL (industrial safety compliance)
• MTBF: 183,000 hours (minimum mean time before failure)

Key Features

1. Centralized Distributed I/O Management
   • Functions as the master interface for remote I/O networks, connecting up to 8 Field Control modules to a host PLC.
   • Exchanges 128 bytes of input and 128 bytes of output data per scan, ensuring high-speed, real-time communication.
2. Robust & Reliable Communication
   • Native Genius Bus protocol support for seamless integration with GE Fanuc PLCs and distributed I/O devices.
   • Electrical isolation protects against industrial noise and voltage spikes, ensuring stable data transmission in harsh environments.
   • Supports hot standby CPU configuration for redundant systems, eliminating single points of failure.
3. Advanced Diagnostics & Monitoring
   • Built-in self-diagnostic functions for the unit and connected I/O modules, detecting faults like communication errors, module failures, and power issues.
   • Front-panel LED indicators (RUN, COMM, FAULT) provide instant visual status for on-site troubleshooting.
   • Transmits diagnostic data to host PLC or handheld monitors (e.g., IC660HHM501N) for remote monitoring.
4. Flexible & User-Friendly Design
   • Hot-swappable modules allow online replacement without shutting down the system, reducing maintenance downtime.
   • Compact, DIN-rail mountable design saves cabinet space and simplifies installation.
   • Wide operating temperature range (-40°C to +85°C) and IP55 rating ensure reliable performance in extreme industrial conditions.

Application Scenarios

• Industrial Process Control
  • Chemical & Petrochemical: Connects remote I/O modules for reactor temperature, pressure, and flow control; supports redundant systems for continuous batch processing.
  • Oil & Gas: Manages distributed I/O for pipeline monitoring, wellhead control, and compressor station automation in remote locations.
  • Water & Wastewater Treatment: Interfaces with I/O modules for pump control, level sensing, and water quality monitoring across treatment plants.
• Manufacturing & Automotive
  • Automotive Assembly: Links I/O modules controlling conveyors, robotic arms, and assembly line sensors to the main PLC.
  • Food & Beverage: Connects analog/digital I/O for temperature control, packaging machinery, and ingredient dosing systems.
• Power & Energy
  • Thermal Power Plants: Interfaces with I/O modules for boiler control, steam turbine monitoring, and generator protection systems.
  • Renewable Energy: Manages distributed I/O for wind turbine and solar farm monitoring, integrating field data into central control systems.
• Material Handling & Logistics
  • Warehouse Automation: Connects I/O modules for conveyor systems, automated guided vehicles (AGVs), and inventory tracking.
  • Mining & Metals: Manages remote I/O for ore processing equipment, conveyor belts, and crushing machinery in harsh mining environments.
