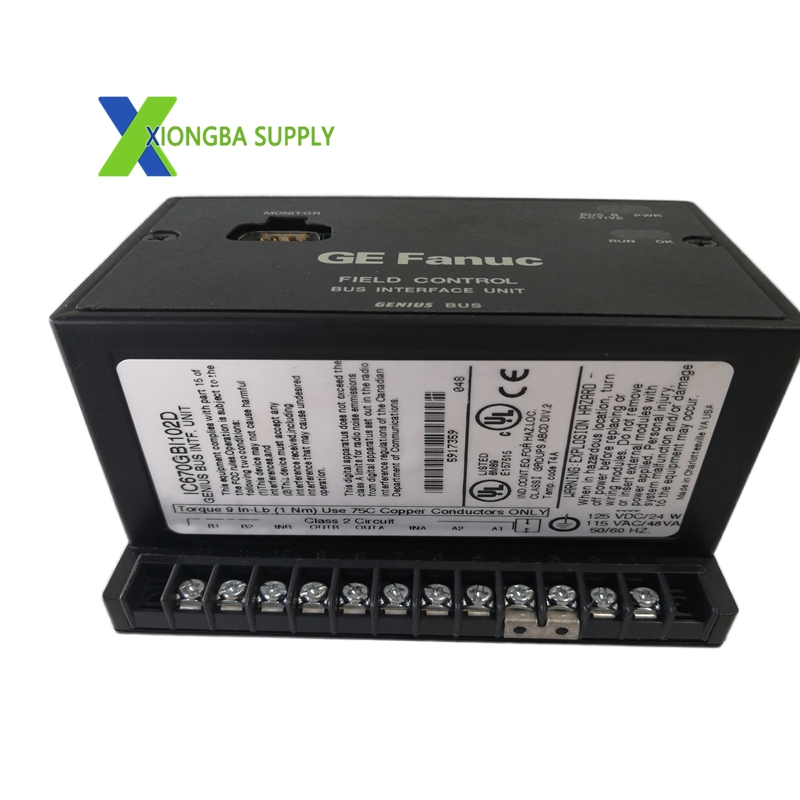

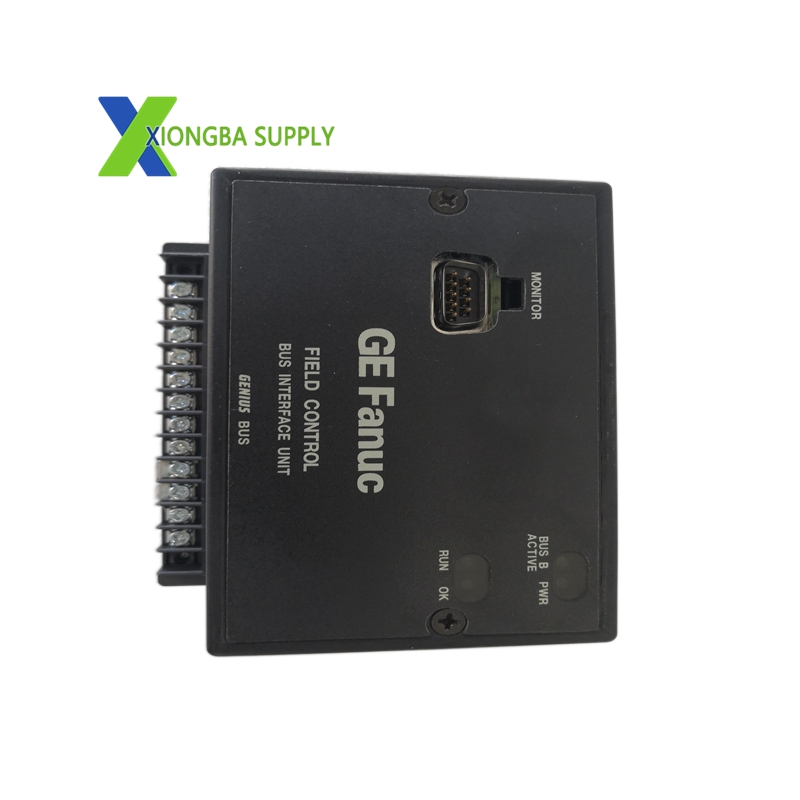

GE IC670GBI102D Genius Bus Interface Unit

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation Solutions)
Model: IC670GBI102D
Series: Field Control
Communication Protocol: Genius Bus
Supported I/O Modules: Up to 8 Genius I/O modules
Baud Rates: 38.4 Kbaud, 76.8 Kbaud, 153.6 Kbaud (standard/extended)
Nominal Supply Voltage: 115 VAC / 125 VDC
Supply Voltage Range: 90–135 VAC, 105–150 VDC; 18–30 VDC (auxiliary)
Power Consumption: 48 VA max @ 115 VAC; 24 W max @ 125 VDC; 16.8 W (24 VDC)
Current Output to I/O Modules: 1.4 A
Data Exchange Capacity: 128 bytes input / 128 bytes output per bus scan
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Mounting: DIN rail or panel-mounted
Dimensions (H×W×D): 101.6 × 152.4 × 76.2 mm (4.0 × 6.0 × 3.0 in)
Weight: 1.2 kg (2.6 lbs)
Certifications: CE, cULus (industrial safety compliance)

Key Features

High-Speed Genius Bus Communication
- Delivers high-speed data exchange (up to 153.6 Kbaud) between the host controller and distributed I/O modules, ensuring real-time performance for time-critical applications.
- Supports up to 8 I/O modules, consolidating discrete/analog I/O signals into a single bus interface for efficient system integration.
Flexible & Reliable Power Supply
- Accepts dual nominal voltages (115 VAC / 125 VDC) with wide tolerance ranges, adapting to diverse industrial power infrastructures.
- Low power consumption (16.8 W at 24 VDC) reduces energy costs, while 1.4 A output current powers connected I/O modules without additional supplies.
Robust Industrial Design
- Rugged metal housing with a grounding strip ensures durability and electrical noise immunity in harsh environments (dust, vibration, temperature fluctuations).
- LED indicators for Power and Bus Active status enable quick visual diagnostics, simplifying on-site troubleshooting.
Seamless System Integration
- Fully compatible with GE Fanuc Series 90-30/90-70 PLCs and all Genius bus I/O modules, enabling plug-and-play deployment in existing systems.
- Exchanges up to 128 bytes of input/output data per scan, supporting comprehensive I/O data mapping and process control applications.
Easy Installation & Maintenance
- DIN rail or panel-mounted design offers flexible installation options, reducing setup time.
- Hot-swappable functionality (with compatible Genius I/O blocks) allows module replacement without system shutdown, minimizing downtime.

Application Scenarios

Industrial Automation & Manufacturing
- Automotive Assembly: Connects PLCs to distributed I/O modules controlling robotic arms, conveyors, and assembly line sensors; ensures real-time data exchange for precise motion control.
- Packaging Machinery: Interfaces with analog/digital I/O blocks for speed, position, and temperature monitoring in high-speed packaging lines.
Process Control Industries
- Oil & Gas: Links remote I/O modules (pressure, level, flow sensors) to central PLCs for pipeline monitoring and control in hazardous environments.
- Chemical & Petrochemical: Integrates temperature, pressure, and pH sensors via Genius I/O for reactor and batch process control; ensures reliable data communication in corrosive atmospheres.
- Water & Wastewater Treatment: Connects level, turbidity, and flow sensors to PLCs for pump, valve, and filtration system control.
Power & Energy Generation
- Thermal Power Plants: Interfaces with I/O modules monitoring boiler pressure, steam temperature, and fuel flow; supports real-time data acquisition for plant efficiency optimization.
- Renewable Energy: Connects wind turbine and solar farm sensors to central controllers for performance monitoring and grid integration.
Building & Infrastructure
- HVAC Systems: Integrates temperature, humidity, and pressure sensors for commercial building climate control; enables centralized monitoring and energy management.
- Smart Warehousing: Connects barcode scanners, conveyor sensors, and material handling equipment to PLCs for automated inventory management.
