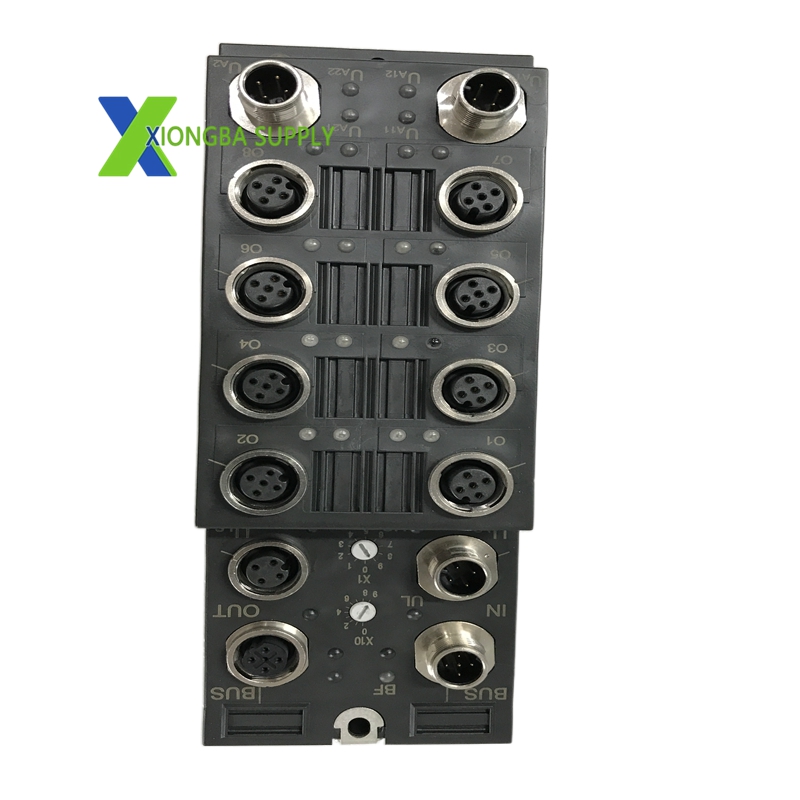

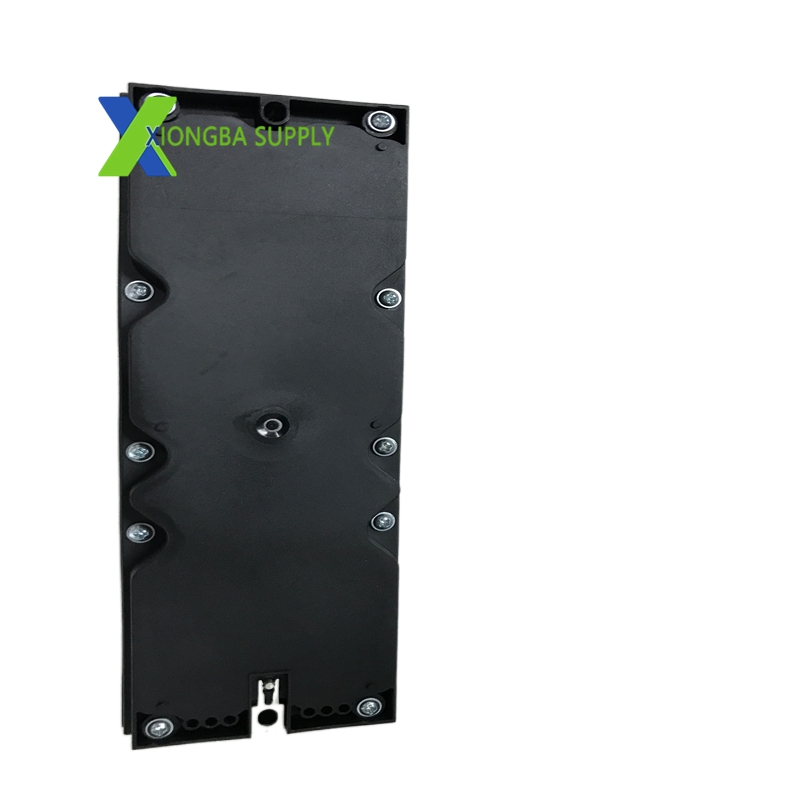

GE IC676PBO082 VersaMax IP PROFIBUS DP Digital Output Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC676PBO082
• Series: PACSystems VersaMax IP
• Communication Protocol: PROFIBUS DP
• Communication Rate: Up to 12 Mbit/s
• Number of Channels: 8 (digital output)
• Output Type: 24 VDC positive logic (sinking)
• Current Rating: 2 A per channel; total 16 A
• Voltage Range: 21.5–28 VDC (nominal 24 VDC)
• Protection Rating: IP67 (dust-tight, waterproof)
• Mounting: DIN rail or direct panel mounting
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Relative Humidity: 5%–95% (non-condensing)
• Dimensions (W×H×D): 145 × 90 × 40 mm (5.7 × 3.5 × 1.6 in)
• Weight: 0.15 kg (0.33 lbs)
• Certifications: CE, UL/cUL

Key Features

1. High-Speed PROFIBUS DP Communication
   • Supports 12 Mbit/s PROFIBUS DP connectivity for real-time, deterministic data exchange with PLCs/PACs.
   • Operates as a PROFIBUS DP slave node, compatible with all standard PROFIBUS DP master devices.
2. Rugged IP67 Field-Mount Design
   • IP67-rated enclosure resists dust, water, vibration, and extreme temperatures, enabling direct installation on machinery or in wet industrial areas.
   • Eliminates costly control cabinets and reduces wiring complexity with field-deployable I/O.
3. 8-Channel 24 VDC Output with Positive Logic
   • Provides 8 independent 2 A digital outputs for controlling solenoids, relays, contactors, and small motors.
   • Positive logic (sinking) outputs match standard 24 VDC field devices, ensuring seamless integration.
4. Software-Configurable & Diagnosable
   • Output parameters (e.g., fail-safe state, pulse width) are software-configurable via PROFIBUS, no hardware switches needed.
   • Offers comprehensive diagnostics: short-circuit protection, overcurrent detection, and open-load reporting for each channel.
   • Supports remote monitoring of module health and network status via the controller.
5. Compact & Cost-Effective Installation
   • Lightweight, compact form factor enables DIN rail or direct panel mounting in space-constrained areas.
   • Reduces installation time and costs with plug-and-play PROFIBUS connectivity and M12 circular connectors for field wiring.

Application Scenarios

• Factory Automation & Assembly Lines
  • Controls solenoid valves, pneumatic actuators, and conveyor relays in automotive, electronics, and food/beverage assembly lines.
  • Mounts directly on production machinery for decentralized I/O control, minimizing cable runs.
• Process Industries
  • Manages on/off valves, pump starters, and alarm beacons in water/wastewater treatment, chemical, and pharmaceutical plants.
  • Withstands humid, corrosive environments thanks to IP67 protection.
• Packaging & Material Handling
  • Drives sorting gates, ejectors, and motorized rollers in packaging machines and warehouse logistics systems.
  • Delivers high-speed on/off control for precise material routing.
• Energy & Power
  • Controls switchgear, contactors, and auxiliary relays in power distribution panels and renewable energy installations.
  • Operates reliably in wide temperature ranges for outdoor and indoor power applications.
