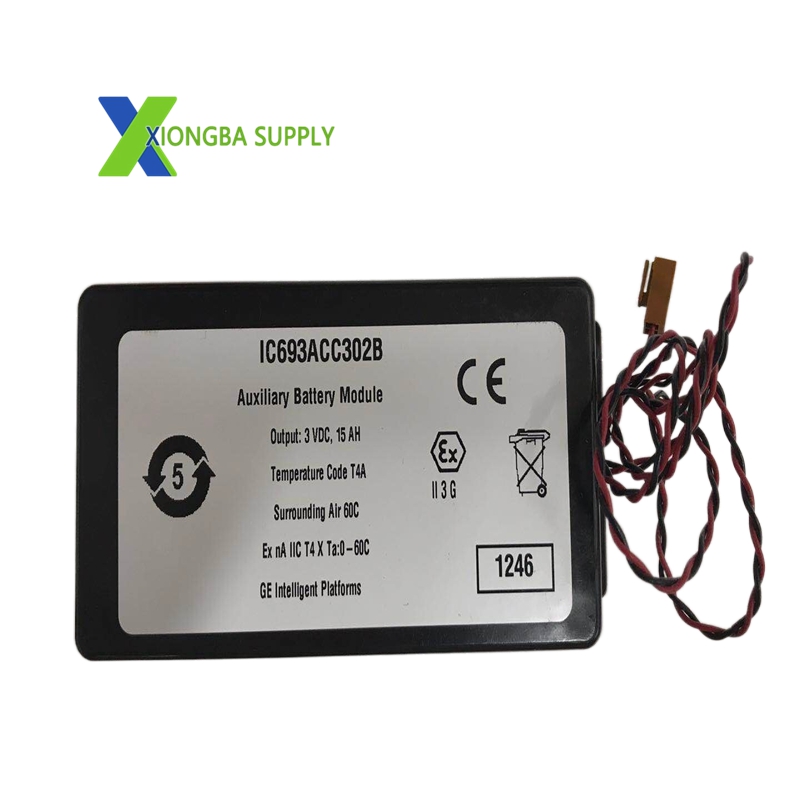

GE IC693ACC302 Auxiliary Smart Battery Module

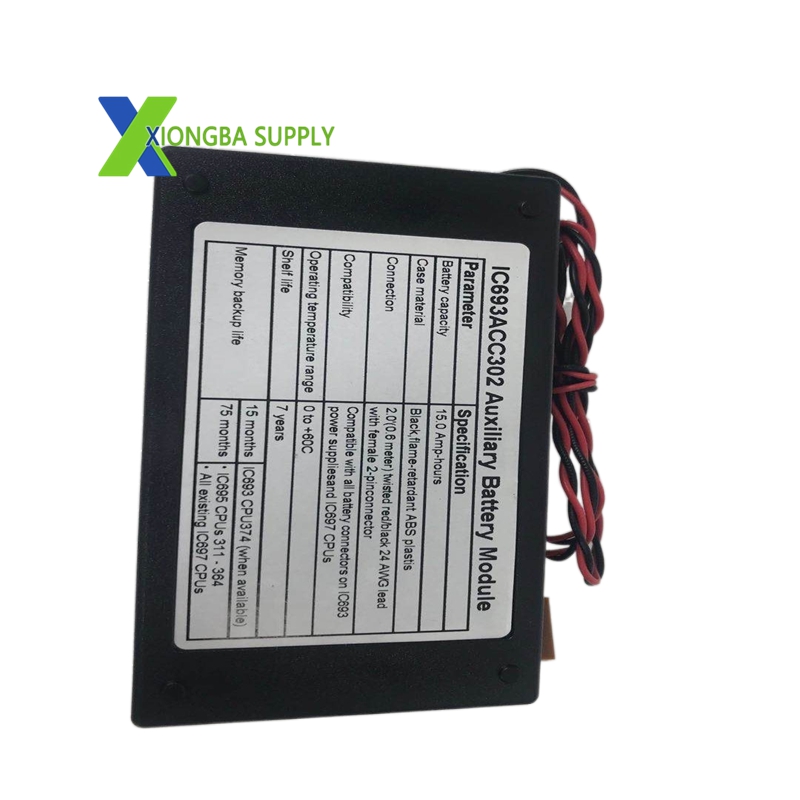

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ACC302
• Type: Auxiliary Smart Battery Module
• Capacity: 15 Ah (ampere‑hour)
• Voltage: 3 VDC
• Backup Time:
  • Up to 75 months (90‑30 CPU311–364, 90‑70 CPUs)
  • Up to 15 months (90‑30 CPU374)
• Shelf Life: 10 years
• Dimensions (L×W×H): 145.1 × 65 × 39.9 mm (5.71 × 2.55 × 1.57 in)
• Weight: 0.29 kg (0.64 lbs)
• Housing: Black flame‑retardant ABS plastic

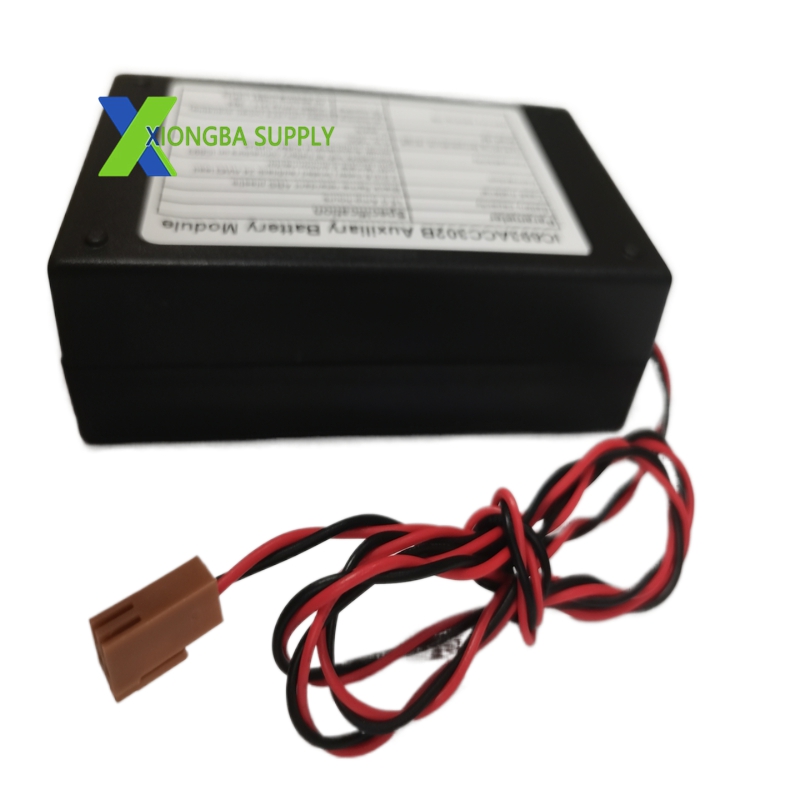

• Cable: 0.6 m (2.0 ft) twisted red/black 24 AWG wire, 2‑pin female connector
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: ‑40°C to +70°C (‑40°F to 158°F)
• Humidity: 5%–95% (non‑condensing)
• Certifications: UL, CE, CSA

Key Features

1. Extended Memory Retention
   • Delivers 15 Ah capacity for ultra‑long backup, far exceeding standard PLC batteries.
   • Preserves RAM, user programs, and process data through power cycles and extended shutdowns.
2. Wide Compatibility
   • Works with GE Fanuc Series 90‑30, 90‑70, and PACSystems controllers.
   • Connects to all IC693 power supply battery connectors for easy retrofitting.
3. Rugged & Reliable Design
   • Industrial‑grade ABS housing resists vibration, dust, and moisture.
   • Broad temperature tolerance ensures stable performance in harsh environments.
4. Simple Installation & Maintenance

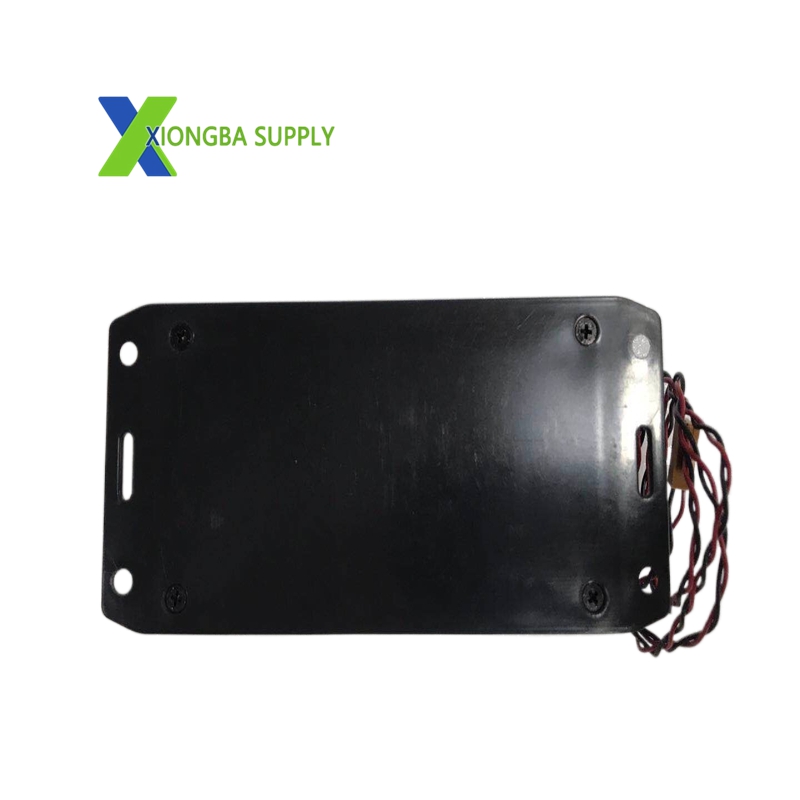

   • Panel‑mountable and easily replaces standard CPU batteries.
   • No user calibration required; plug‑and‑play connection via 2‑pin connector.
   • 10‑year shelf life reduces replacement frequency and maintenance costs.

Application Scenarios

• Industrial Automation & Manufacturing
  • Protects PLC programs and production data in automotive, food & beverage, and packaging lines during unplanned outages.
  • Maintains configuration data for robotic cells, conveyors, and assembly stations through extended maintenance shutdowns.
• Process Control Industries
  • Ensures data integrity in oil & gas, chemical, and water treatment plants where process continuity is critical.
  • Preserves critical control parameters for pumps, valves, and sensors in remote or unmanned facilities.
• Power & Energy
  • Safeguards PLC logic and operational data in thermal power, renewable energy, and utility substations.
  • Prevents loss of generator and grid control data during blackouts or scheduled maintenance.
• Critical Infrastructure
  • Maintains system integrity in building automation, airport, and railway control systems.
  • Ideal for remote and unmanned sites where battery replacement is costly or difficult.
