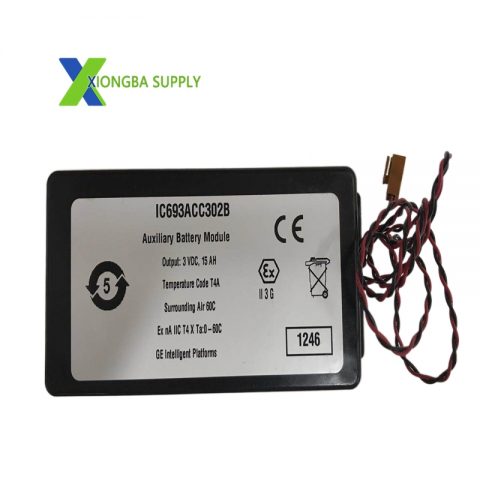

GE IC693ACC302B Auxiliary Battery Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ACC302B
• Module Type: Auxiliary Smart Battery Module (Memory Backup)
• Compatibility: GE Fanuc Series 90-30 PLC, Series 90-70 PLC, PACSystems RX3i CPUs
• Battery Chemistry: Lithium (Li-MnO₂)
• Rated Voltage: 3 VDC
• Rated Capacity: 15 Ah (Ampere-hour)
• RAM Backup Time: Up to 75 months (6.25 years)
• Shelf Life: 10 years (stored at 25°C)

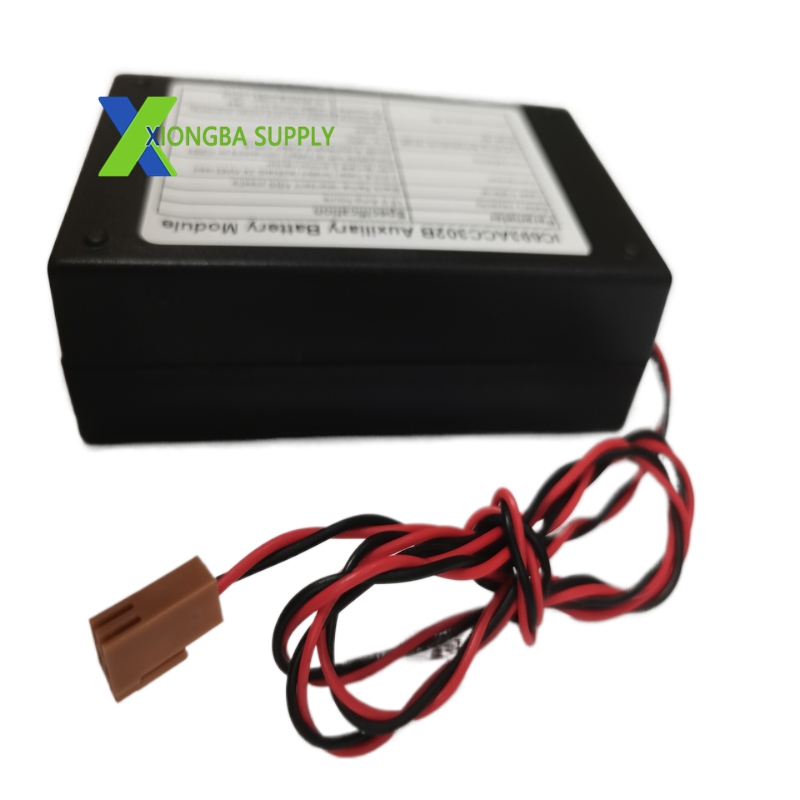

• Connection: 2-inch twisted red/black 24 AWG leads with 2-pin female connector
• Housing Material: Flame-retardant ABS plastic (black)
• Dimensions (L×W×H): 145 × 65 × 40 mm (5.71 × 2.55 × 1.57 in)
• Weight: 0.29 kg (0.64 lbs)
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL (Industrial Safety Compliance)

Key Features

1. Extended Memory Backup
   • Delivers 75 months of RAM retention (over 6 years) to safeguard PLC programs, data, and configurations during power outages, eliminating frequent battery replacements.
   • High 15 Ah capacity ensures reliable long-term backup for critical automation systems.
2. Industrial-Grade Reliability
   • Flame-retardant ABS housing provides resistance to dust, moisture, vibration, and extreme temperatures for consistent performance in harsh environments.
   • Stable lithium chemistry offers low self-discharge and a 10-year shelf life, reducing maintenance costs.
3. Seamless Integration
   • Directly compatible with all GE Fanuc Series 90-30/90-70 PLC power supplies and PACSystems RX3i CPUs for plug-and-play installation.
   • 2-pin connector with color-coded leads enables quick, error-free wiring and replacement.
4. Compact & Space-Saving
   • Lightweight, low-profile design fits easily in control panels and DIN rail setups, optimizing space utilization in industrial cabinets.

Application Scenarios

• Industrial Manufacturing
  • Automotive Assembly: Protects PLC programs for robotic arms, conveyor systems, and assembly line controls during unplanned shutdowns.
  • Food & Beverage: Preserves recipe data and process logic for mixing, packaging, and sterilization equipment in batch production.
• Process Control Industries
  • Oil & Gas: Maintains critical control logic for pipeline monitoring, pump stations, and refinery processes in remote or harsh environments.
  • Chemical & Petrochemical: Safeguards PLC configurations for reactor control, temperature/pressure monitoring, and safety interlock systems.
  • Water & Wastewater Treatment: Ensures continuous operation of pump controls, filtration systems, and water quality monitoring after power failures.
• Power & Energy
  • Thermal Power Plants: Protects control logic for boiler systems, turbine controls, and power distribution networks.
  • Renewable Energy: Preserves data for wind turbine control systems and solar farm automation in off-grid or unstable power areas.
• Critical Infrastructure
  • Building Automation: Maintains HVAC, lighting, and security system logic in commercial buildings and data centers.
  • Material Handling: Ensures uninterrupted operation of warehouse automation, cranes, and automated guided vehicles (AGVs).
