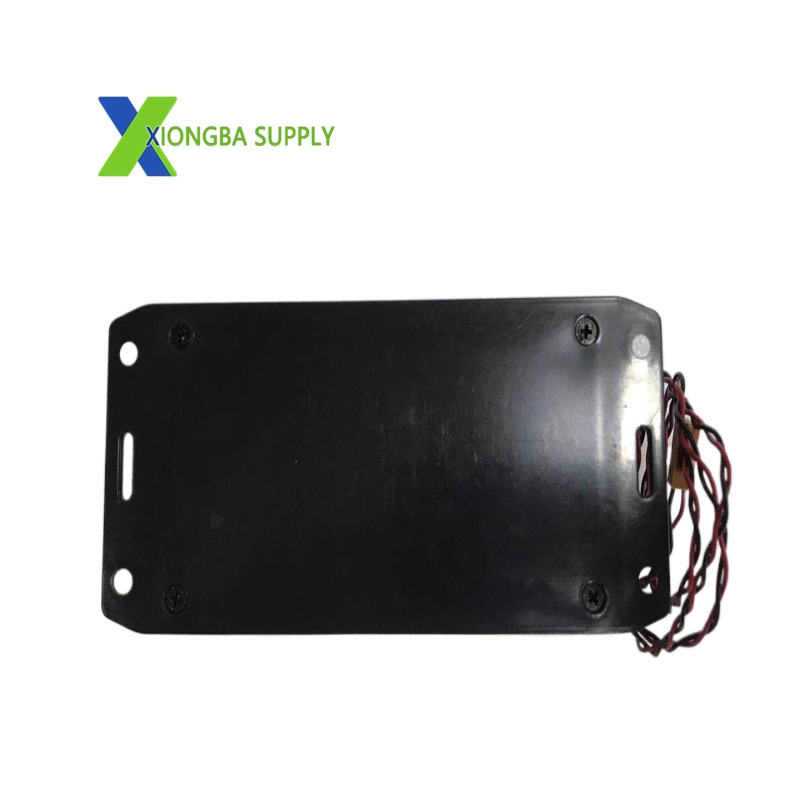

GE IC693ACC302A Auxiliary Battery Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ACC302A
• Battery Capacity: 15.0 Amp‑hours (Ah)
• Memory Backup Life:
  • 15 months for IC693 CPU374
  • 75 months for IC693 CPUs 311–364 and all IC697 CPUs
• Shelf Life: 7 years (uninstalled)
• Dimensions (H×W×D): 145.1 × 65.0 × 39.9 mm (5.71 × 2.56 × 1.57 in)
• Casing: Black flame‑retardant ABS plastic
• Connection: 0.6 m (2.0 ft) twisted red/black 24 AWG cable with 2‑pin female connector
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non‑condensing)
• Compatibility: All IC693 power supplies and IC697 CPUs
• Certifications: CE, UL (industrial safety compliance)

Key Features

1. Extended Memory Retention
   • Delivers up to 75 months of backup for most Series 90‑30/90‑70 CPUs, drastically reducing data loss risk.
   • Maintains volatile RAM content without external power, safeguarding production logic and process data.
2. High Reliability & Long Service Life
   • Industrial‑grade lithium‑based chemistry provides stable voltage and long shelf life.
   • Flame‑retardant ABS housing offers resistance to dust, vibration, and temperature fluctuations.
3. Easy Integration & Maintenance
   • Plug‑and‑play connectivity with no configuration required; connects directly to PLC power supply or CPU.
   • Compact, lightweight design enables flexible mounting in control cabinets.
   • Clear labeling ensures quick installation and replacement by maintenance personnel.
4. Cost‑Effective Downtime Prevention
   • Eliminates the need for reprogramming after power failures, minimizing production downtime and labor costs.
   • Reduces reliance on external UPS systems for short‑to‑medium term backup needs.

Application Scenarios

• Industrial Manufacturing
  • Automotive Lines: Preserves PLC programs for robotic assembly, conveyor control, and safety interlocks during unplanned shutdowns.
  • Packaging & Material Handling: Maintains batch recipes and motion control logic for uninterrupted production.
• Process Industries
  • Oil & Gas: Protects critical control logic for pipeline monitoring, wellhead automation, and safety systems.
  • Chemical & Petrochemical: Ensures continuous operation of reactor control, temperature/pressure regulation, and batch processing.
  • Water/Wastewater: Preserves pump, valve, and treatment process logic during power interruptions.
• Power & Energy
  • Thermal Power Plants: Maintains boiler, turbine, and auxiliary system control logic during maintenance or grid fluctuations.
  • Renewable Energy: Safeguards wind turbine and solar farm automation data in remote, harsh environments.
• Critical Infrastructure
  • Building Automation: Preserves HVAC, lighting, and security system logic in commercial and industrial facilities.
  • Data Centers: Supports auxiliary PLC systems for environmental monitoring and emergency power control.
