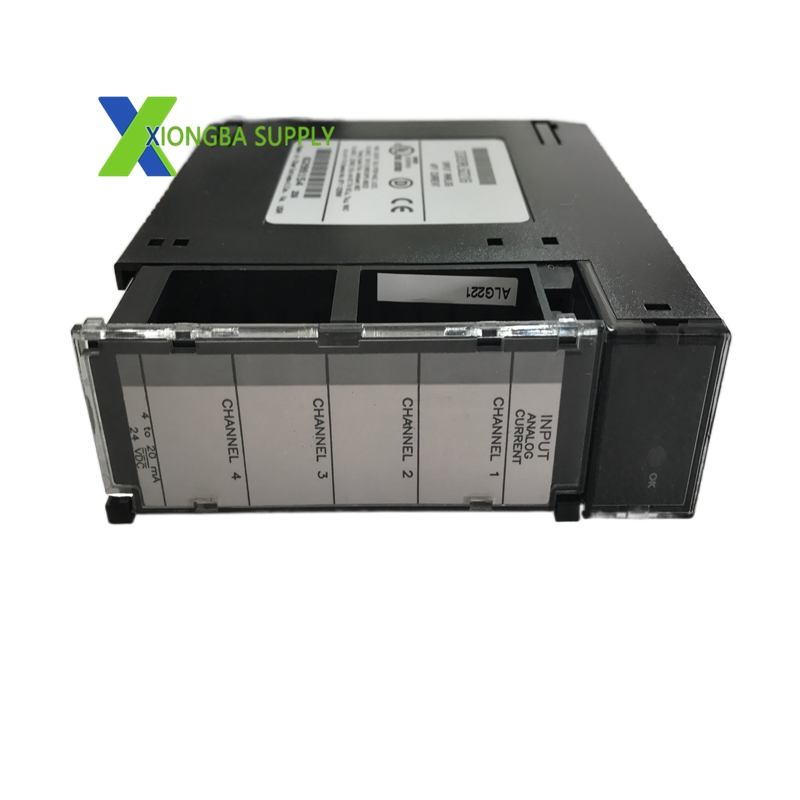

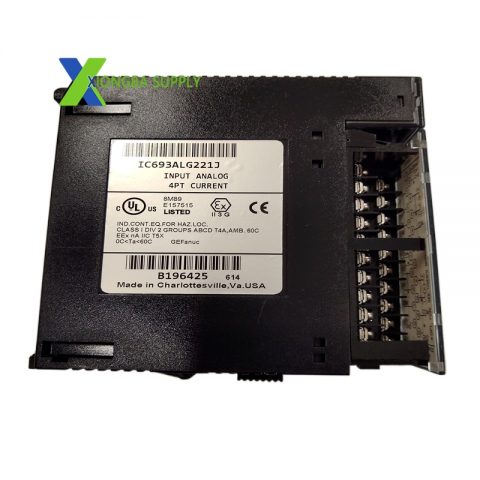

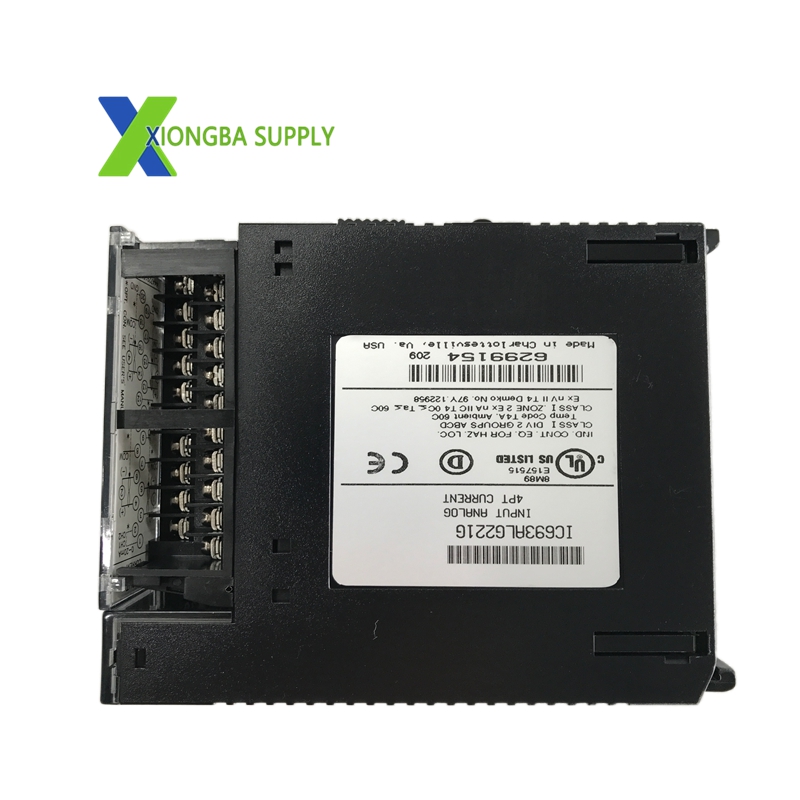

GEIC693ALG221 4-Channel Analog Current Input Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ALG221
• Series: GE Fanuc Series 90-30 PLC System
• Number of Channels: 4 single-ended analog input channels
• Input Signal Ranges: 4–20 mA (default), 0–20 mA (selectable)
• Resolution: 12-bit (4 µA per count for 4–20 mA; 5 µA per count for 0–20 mA)
• Accuracy: ±0.1% full scale + ±0.1% reading (at 25°C)
• Update Rate: 2 ms for all 4 channels (0.5 ms per channel)
• Input Filter Response: 325 Hz
• Input Impedance: 250 Ω (current mode)
• Isolation: 1500 VDC between field side and logic side
• Common Mode Rejection: >70 dB at DC and 60 Hz
• Power Consumption: 25 mA from +5 VDC bus; 100 mA from +24 VDC bus
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Dimensions (H×W×D): 65 × 60 × 60 mm (2.56 × 2.36 × 2.36 in)
• Weight: 0.14 kg (0.31 lbs)
• Certifications: CE, UL (industrial safety compliance)

Key Features

1. High-Accuracy Signal Conversion
   • Factory-calibrated 12-bit resolution ensures precise conversion of analog current signals to digital data, with linearity <1 LSB for consistent measurement integrity.
   • Supports two industry-standard current ranges (4–20 mA and 0–20 mA) to accommodate diverse field devices, with the 4–20 mA range as the default for fail-safe operation.
2. Fast & Efficient Data Acquisition
   • Delivers a 2 ms update rate for all four channels, enabling real-time monitoring of dynamic process variables such as pressure, flow, and temperature.
   • 325 Hz input filter minimizes electrical noise interference, ensuring stable and reliable data transmission in industrial environments with high electromagnetic interference (EMI).
3. Robust Electrical Isolation & Noise Immunity
   • Provides 1500 VDC isolation between the field side and PLC logic side, protecting the PLC from voltage spikes, surges, and common-mode noise.
   • High common-mode rejection (>70 dB) and cross-channel rejection (>80 dB) eliminate crosstalk and external interference, maintaining data accuracy even in electrically noisy environments.
4. Compact & Rugged Industrial Design
   • Compact form factor (65 × 60 × 60 mm) allows for high-density installation in standard PLC racks, optimizing cabinet space.
   • Industrial-grade construction with a wide operating temperature range (0°C to +60°C) ensures reliable performance in extreme manufacturing conditions, including factories, processing plants, and outdoor installations.
5. Easy Integration & Diagnostics
   • Seamless plug-and-play integration with GE Fanuc Series 90-30 PLCs, requiring no additional configuration software for basic operation.
   • LED power indicator provides immediate visual status of module operation, simplifying troubleshooting and maintenance.
   • Supports twisted, shielded instrumentation cable for field connections, further reducing noise and ensuring signal integrity.

Application Scenarios

• Process Control Industries
  • Oil & Gas: Monitors pressure, temperature, and flow sensors in pipelines, refineries, and drilling operations; converts 4–20 mA sensor signals to digital data for PLC control.
  • Chemical & Petrochemical: Measures reactor temperature, pressure, and level in batch and continuous processes; ensures precise data acquisition for safety-critical control loops.
  • Water & Wastewater Treatment: Monitors turbidity, dissolved oxygen, pH, and flow sensors in treatment plants; supports real-time monitoring and control of pumping and dosing processes.
• Manufacturing & Industrial Automation
  • Automotive Assembly: Monitors temperature, pressure, and position sensors on assembly lines; provides accurate data for robotic arm control and quality monitoring.
  • Food & Beverage: Measures temperature, pressure, and flow in processing, packaging, and sterilization lines; ensures compliance with food safety standards through precise process monitoring.
  • Pharmaceuticals: Monitors environmental conditions (temperature, humidity) and process variables in cleanrooms and production lines; supports strict quality control and regulatory compliance.
• Power & Energy Generation
  • Thermal Power Plants: Monitors boiler pressure, steam temperature, fuel flow, and exhaust gas sensors; provides critical data for turbine and boiler control systems.
  • Renewable Energy: Measures wind speed, solar irradiance, and battery status in wind farms and solar power plants; supports efficient energy generation and grid integration.
• Building Automation & HVAC
  • Monitors temperature, humidity, pressure, and air flow sensors in commercial buildings, data centers, and hospitals; enables precise control of heating, ventilation, and air conditioning (HVAC) systems for energy efficiency and occupant comfort.
