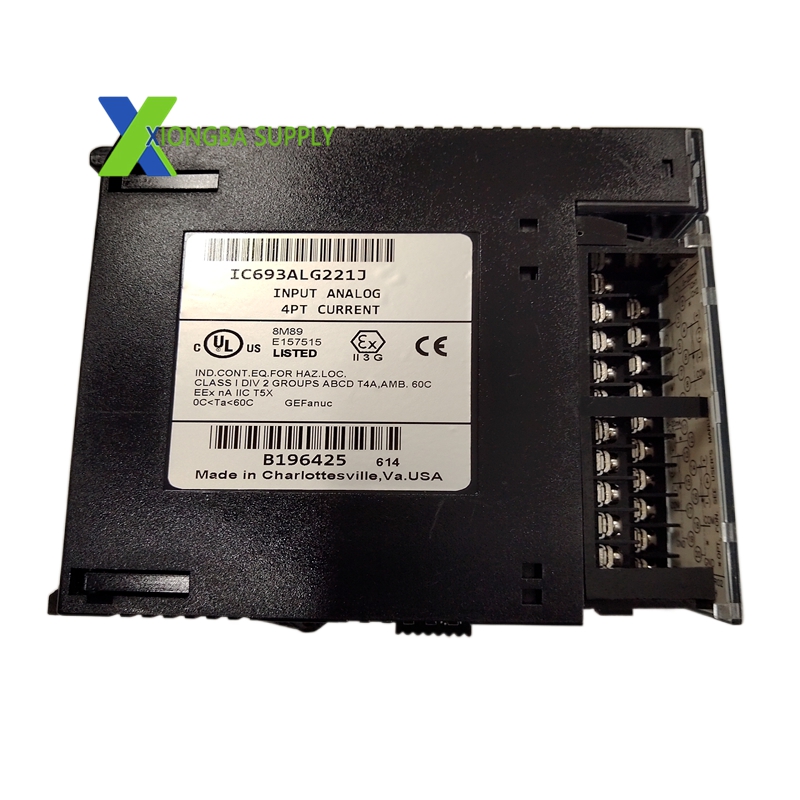

GE IC693ALG221J Analog Current Input Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ALG221J
• Series: Series 90‑30 PLC System
• Input Channels: 4 single‑ended analog current inputs
• Signal Ranges: 4–20 mA (default), 0–20 mA (configurable via jumpers)
• Resolution: 12‑bit (4 μA per count at 4–20 mA; 5 μA per count at 0–20 mA)
• Accuracy: ±0.1% full scale at 25°C
• Update Rate: 2 ms for all 4 channels
• Input Impedance: 250 Ω (internal)
• Isolation: 1500 V between field and logic sides
• Common Mode Rejection: >70 dB (DC/60 Hz)
• Power Consumption: 25 mA (+5 VDC bus), 100 mA (+24 VDC)
• Dimensions (H×W×D): 102 × 86.1 × 58.5 mm
• Weight: 0.24 kg
• Operating Temperature: 0°C to +60°C
• Certifications: CE, UL, RoHS

Key Features

1. High‑Precision Signal Conversion
   • Delivers 12‑bit resolution and ±0.1% accuracy for reliable measurement of current‑based sensor signals.
   • Supports two industry‑standard current ranges (4–20 mA / 0–20 mA) configurable via on‑board jumpers.
2. Fast & Synchronous Processing
   • Updates all four channels in 2 ms for real‑time process monitoring.
   • Built‑in 325 Hz input filter reduces electrical noise and ensures stable readings.
3. Robust Isolation & Noise Rejection
   • Provides 1500 V isolation between field wiring and PLC logic to protect against voltage spikes.
   • High common‑mode (>70 dB) and cross‑channel (>80 dB) rejection minimizes interference.
4. Easy Configuration & Integration
   • Two independent range jumpers (channels 1–2 / 3–4) allow flexible range setup.
   • Connects directly to the Series 90‑30 PLC backplane for seamless integration.
   • LED indicator for power and module status monitoring.
5. Industrial‑Grade Reliability
   • Compact, rugged design with wide operating temperature tolerance (0°C to +60°C).
   • Factory‑calibrated and tested for long‑term, maintenance‑free operation.

Application Scenarios

• Process Control
  • Oil & Gas: Monitors pressure, level, and flow transmitters in pipelines and refineries.
  • Chemical & Petrochemical: Measures reactor temperature, pressure, and flow via 4–20 mA sensors.
  • Water & Wastewater: Tracks dissolved oxygen, pH, and turbidity sensors in treatment plants.
• Manufacturing & Automation
  • Automotive: Monitors assembly line sensors for position, force, and pressure.
  • Food & Beverage: Controls temperature, flow, and level in mixing, filling, and packaging lines.
  • Packaging: Integrates with load cells and proximity sensors for precision packaging machinery.
• Power & Energy
  • Thermal Power Plants: Monitors boiler pressure, steam temperature, and fuel flow.
  • Renewable Energy: Collects data from wind turbine and solar farm environmental sensors.
• General Industrial
  • HVAC: Regulates building temperature, humidity, and air flow via analog sensors.
  • Material Handling: Monitors conveyor speed, weight, and position in logistics systems。
