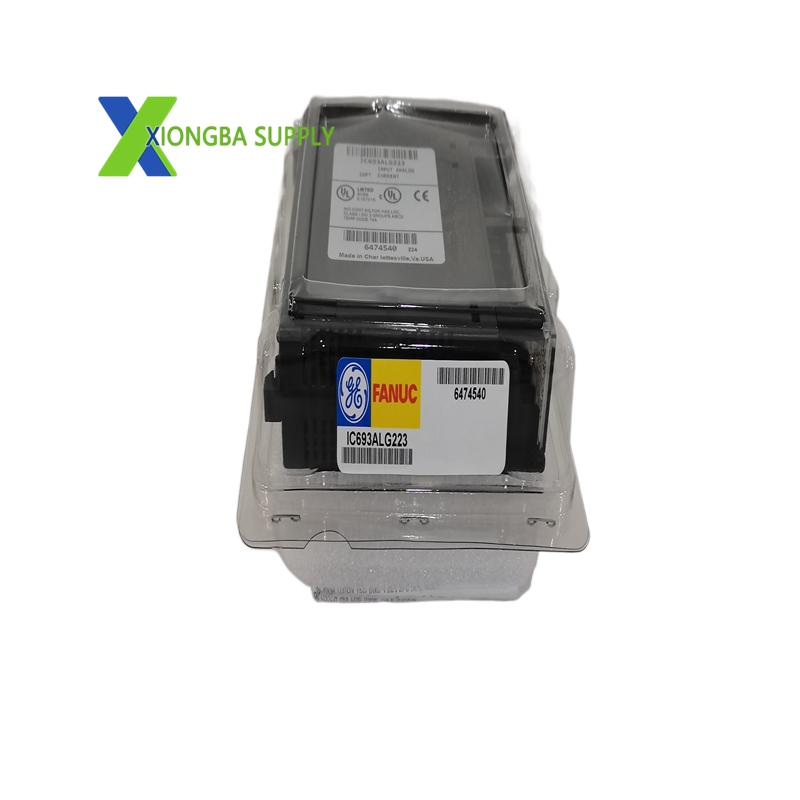

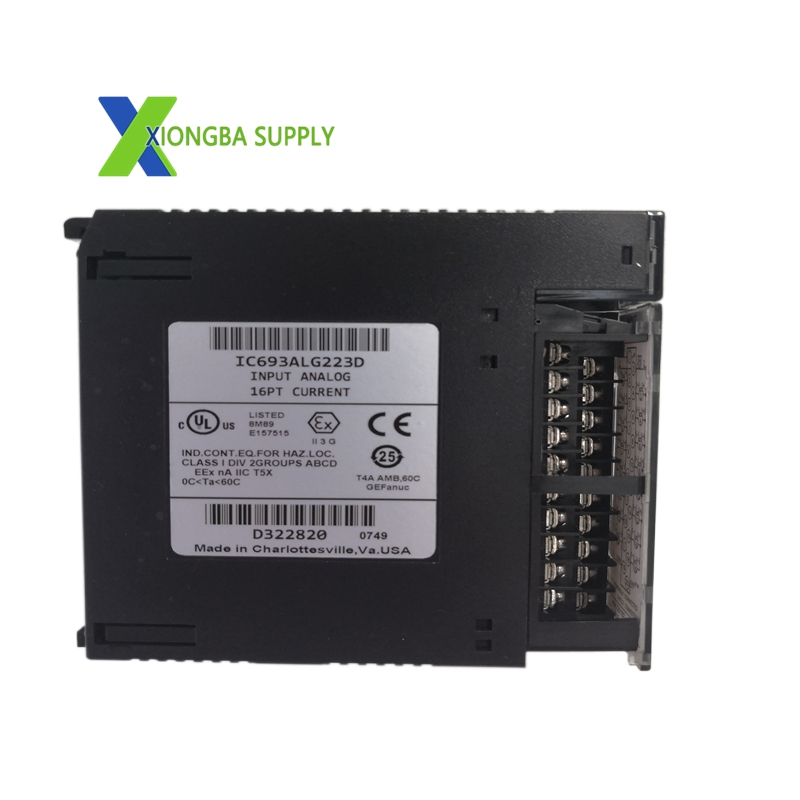

GE IC693ALG223 16‑Channel Analog Current Input Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693ALG223
• Channel Configuration: 16 single‑ended analog current input channels
• Input Ranges (Software‑Configurable):
  • 4–20 mA: Standard industrial range
  • 0–20 mA: Full zero‑based range
  • 4–20 mA Enhanced: With open‑wire fault detection
• Resolution: 12‑bit (4096 counts)
• Absolute Accuracy: ±0.25% of full scale at 25 °C; ±0.5% over operating temperature range
• Update Rate: 13 ms for all 16 channels
• Input Impedance: 250 Ω nominal
• Isolation: 1500 VAC for 1 minute; channel‑to‑PLC isolation
• Power Consumption: 250 mA at +5 VDC
• Operating Temperature: 0 °C to +60 °C
• Dimensions (H×W×D): Standard Series 90‑30 module size
• Weight: Approx. 300 g

Key Features

1. High‑Density 16‑Channel Design
   • Integrates 16 independent input channels in one compact unit, saving cabinet space and reducing system cost.
2. Flexible Software‑Configurable Ranges
   • Each channel can be set to 4–20 mA, 0–20 mA, or 4–20 mA Enhanced to match various transmitter types.
3. Open‑Wire Fault Detection
   • The Enhanced 4–20 mA mode detects broken wires or sensor failures, triggering alarms to prevent data loss.
4. High Precision & Fast Response
   • 12‑bit resolution and 13 ms total update rate deliver accurate, timely data for closed‑loop control.
5. Strong Noise Immunity
   • Channel‑to‑PLC isolation (1500 VAC) protects against electrical interference in harsh industrial environments.
6. LED Diagnostic Indicators
   • Built‑in ON/OFF/FAIL LEDs simplify status monitoring and on‑site troubleshooting.

Application Scenarios

• Process Control Industries
  • Chemical & Petrochemical: Monitors temperature, pressure, and flow transmitters in reactors and pipelines.
  • Oil & Gas: Measures pipeline pressure, level, and flow in remote wellheads and processing facilities.
  • Water & Wastewater Treatment: Collects signals from pH, dissolved oxygen, and level sensors for pump and valve control.
• Manufacturing & Automation
  • Automotive Assembly: Monitors analog sensors for conveyor speed, part presence, and environmental conditions.
  • Food & Beverage: Controls temperature and pressure in ovens, boilers, and filling lines.
• Power & Energy
  • Thermal Power Plants: Tracks boiler temperature, steam pressure, and fuel flow for efficient combustion control.
  • Renewable Energy: Monitors wind turbine vibration and solar farm irradiance sensors.
• Building & Infrastructure
  • HVAC Systems: Measures duct pressure, room temperature, and humidity for energy‑efficient climate control.
