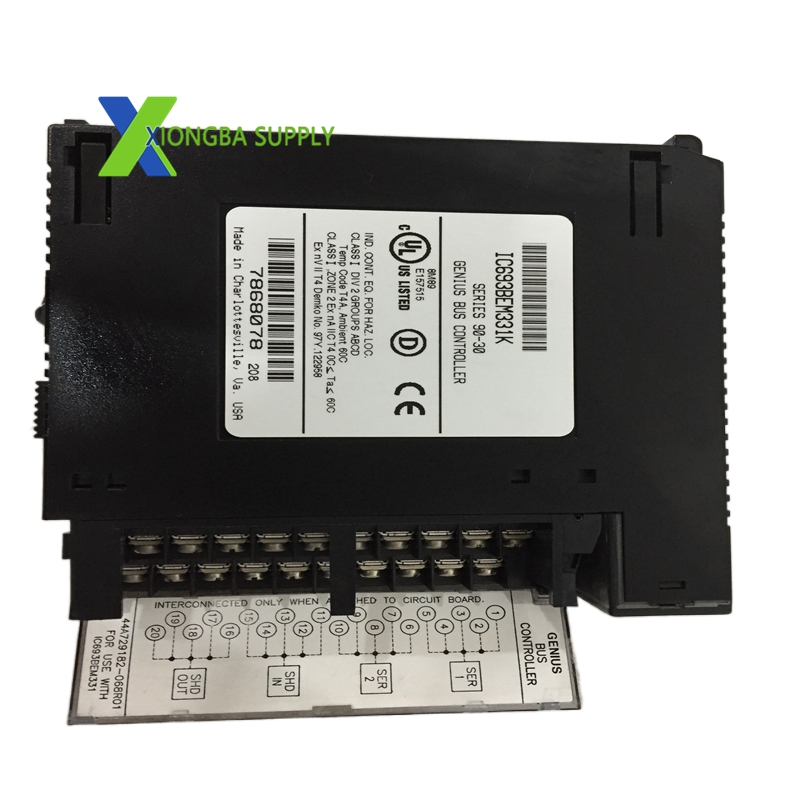

GE IC693BEM331D Genius Bus Controller Module

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693BEM331D
• Series: GE Fanuc Series 90-30 PLC System
• Compatibility: Series 90-30 PLC CPUs (IC693CPU311K/321K/331L or later; IC693CPU313/323/340/341/350/351/352/360/363/364)
• Supported Nodes: Up to 31 Genius bus devices
• Data Capacity: 128 bytes of input data + 128 bytes of output data (bidirectional)
• Communication Protocol: Proprietary Genius bus protocol
• Power Supply: 5V DC (from PLC backplane); 24V DC (external, optional)
• Current Consumption: ≤300mA (5V DC)
• Dimensions (H×W×D): 122 × 46 × 124 mm (4.8 × 1.8 × 4.9 in) (single-slot module)
• Mounting: Standard DIN rail or PLC backplane mounting
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Status Indicators: Power LED (RUN), Communication LED (COM)
• Certifications: CE, UL (industrial safety compliance)

Key Features

1. High-Speed Genius Bus Communication
   • Acts as a master controller for the Genius bus, enabling high-speed, deterministic data exchange between the Series 90-30 PLC and distributed I/O devices.
   • Supports up to 31 bus nodes and 128 bytes of bidirectional data, handling complex I/O control and monitoring tasks efficiently.
2. Seamless System Integration
   • Connects to all Genius I/O blocks (discrete input/output, analog input/output, and special-function modules), remote Series 90-70 I/O racks, and field control stations via the Genius bus.
   • Allows the Series 90-30 PLC to operate as a network master, integrating distributed I/O into a centralized control system without additional hardware.
3. Robust Diagnostics & Status Monitoring
   • Equipped with front-panel LED indicators (RUN/COM) for real-time monitoring of module status and bus communication health.
   • Detects and reports bus errors, node faults, and communication failures to the PLC, enabling quick fault localization and troubleshooting.
   • Supports configuration and diagnostics via the Genius Handheld Monitor (HHM) for on-site maintenance without a programming terminal.
4. Flexible & Scalable System Expansion
   • The Series 90-30 PLC system can install up to 8 Genius bus controller modules, supporting large-scale network expansion and multi-segment bus configurations.
   • Compatible with a wide range of Genius I/O modules, allowing customized I/O system design for diverse industrial application requirements.
5. Industrial-Grade Reliability
   • Rugged, compact single-slot design with wide temperature/humidity tolerance, ensuring stable operation in harsh industrial environments.
   • High noise immunity and electrical isolation protect against electromagnetic interference (EMI) and signal distortion, enhancing system reliability.
   • Easy installation via DIN rail or backplane mounting, with plug-and-play connectivity for quick deployment and replacement.

Application Scenarios

• Factory Automation & Manufacturing
  • Automotive Assembly: Controls distributed Genius I/O modules for conveyor systems, robotic workcells, and assembly line sensors/actuators, enabling real-time production monitoring and control.
  • Electronics Assembly: Integrates analog/digital I/O for precision positioning, temperature control, and quality inspection devices in high-speed manufacturing lines.
• Process Control Industries
  • Oil & Gas: Connects PLCs to remote Genius I/O modules for pipeline pressure, flow, and level monitoring, as well as valve and pump control in distributed process networks.
  • Chemical & Petrochemical: Manages analog I/O for reactor temperature/pressure control, flow metering, and safety interlock systems in batch and continuous processes.
  • Water & Wastewater Treatment: Controls pumps, valves, and sensors via Genius I/O for water quality monitoring, level control, and wastewater treatment process automation.
• Power & Energy
  • Thermal Power Plants: Interfaces PLCs with Genius I/O for boiler temperature/pressure monitoring, steam flow control, and turbine auxiliary system control.
  • Renewable Energy: Manages distributed I/O for wind turbine pitch control, solar farm inverter monitoring, and energy storage system management.
• System Commissioning & Maintenance
  • Distributed I/O System Setup: Configures and validates Genius bus networks during initial system installation, ensuring reliable communication between PLC and remote I/O devices.
  • Preventive Maintenance: Monitors bus health and module status via LED indicators and HHM diagnostics, performing routine checks to avoid unplanned downtime.
  • Fault Troubleshooting: Rapidly identifies and resolves Genius bus communication faults, I/O module errors, and network configuration issues in industrial control systems.
