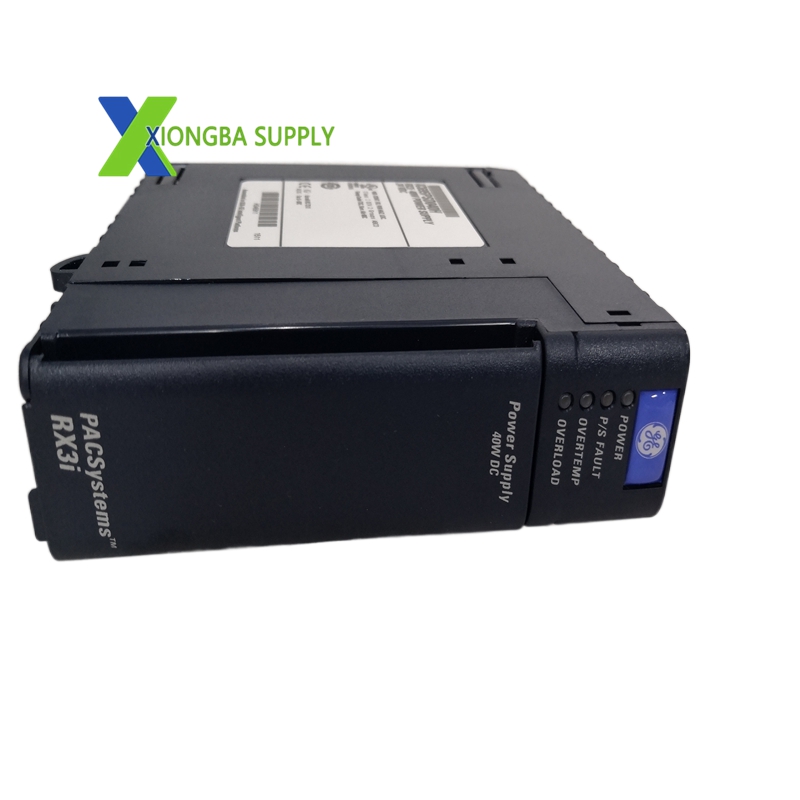

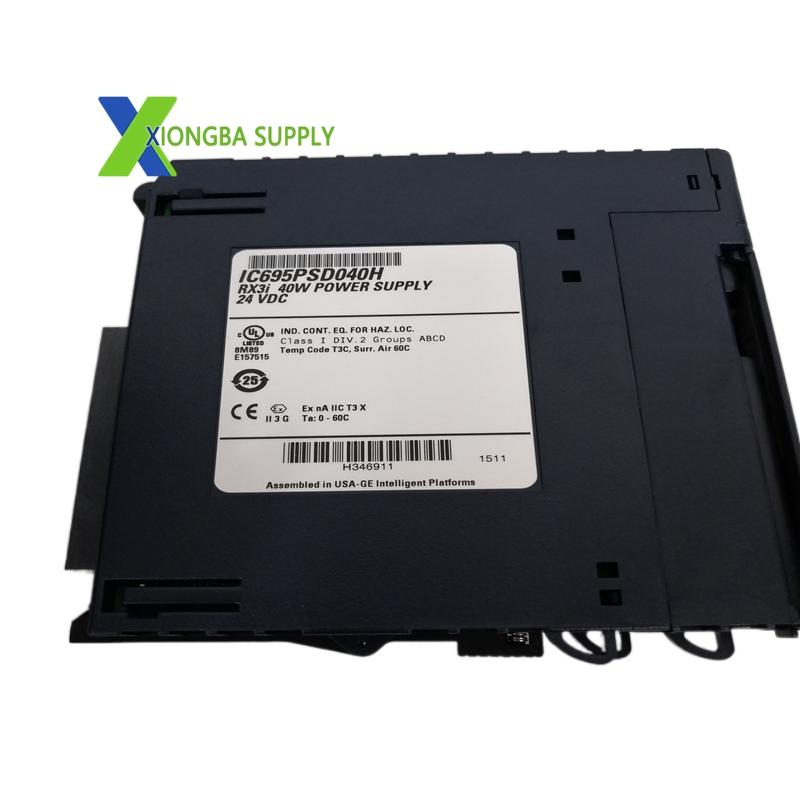

GE IC695PSD040F – PACSystems RX3i Series 40W Power Supply Module

Technical Specifications

• Manufacturer: Emerson Automation (formerly GE Intelligent Platforms / GE Fanuc)
• Series: PACSystems RX3i
• Part Number: IC695PSD040-F (also referenced as IC695PSD040F)
• Type: Rack-Mount DC Power Supply Module
• Input Voltage (Start): 18–30 VDC
• Input Voltage (Run): 12–30 VDC
• Maximum Input Power: 60 W
• Maximum Output Power: 40 W
• Output Voltages & Currents:
  • 5.1 VDC / 0–6 A (30 W max)
  • 3.3 VDC / 0–9 A (30 W max)
  • 24 VDC (auxiliary, for relay circuits)
• Efficiency: ≥90%
• Operating Temperature: -10°C to +60°C
• Protection Rating: IP20
• Dimensions: 190 mm × 60 mm × 35 mm
• Weight: 1.2 kg
• Installation: Universal backplane (Slot 0), DIN rail-compatible rack

Key Features

1. Multi-Voltage Output: Delivers 5.1 VDC, 3.3 VDC, and 24 VDC to power logic circuits, I/O modules, and relay outputs, eliminating the need for external power supplies.
2. Wide Input Range: Accepts 12–30 VDC input, supporting a variety of industrial DC power sources and allowing flexibility in system design.
3. High Reliability: Constructed with industrial-grade components to withstand vibration, temperature fluctuations, and electrical noise in factory environments.
4. Integrated Protection Circuits:
   • Overcurrent Protection: Shuts down or limits output during short circuits or overloads to prevent module and system damage.
   • OverTemperature Protection: Automatically reduces power or shuts down if internal temperature exceeds safe limits.
5. Backplane Compatibility: Designed exclusively for the RX3i universal backplane, ensuring seamless integration with all RX3i CPU, I/O, and communication modules.
6. LED Status Indicators: Equipped with diagnostic LEDs for Power OK, Fault, and Input Status, enabling quick visual troubleshooting.
7. Compact & Space-Saving: Occupies only one slot in the RX3i rack, optimizing cabinet space for additional I/O or communication modules.

Application Scenarios

• Industrial Automation Control Systems: Primary power source for PACSystems RX3i PLC/PAC systems in manufacturing, process control, and discrete automation.
• Manufacturing & Assembly Lines: Powers control systems for conveyor lines, robotic workcells, and packaging machinery.
• Process Industries: Used in water/wastewater treatment, oil and gas, chemical, and pharmaceutical plants to power distributed control systems (DCS) and safety instrumented systems (SIS).
• Infrastructure & Building Automation: Powers RX3i-based controllers for HVAC, elevator control, and smart building management systems.
• Critical Infrastructure: Applied in power generation, renewable energy (wind/solar), and transportation systems where reliable, uninterrupted power for control electronics is essential.

Additional Notes

• Redundancy: The IC695PSD040-F does not support redundant power supply configurations; only one module can be installed per backplane.
• Power Limitation: If the total rack power demand exceeds 40 W, an alternative higher-wattage power supply (e.g., IC695PSA040) is required。
