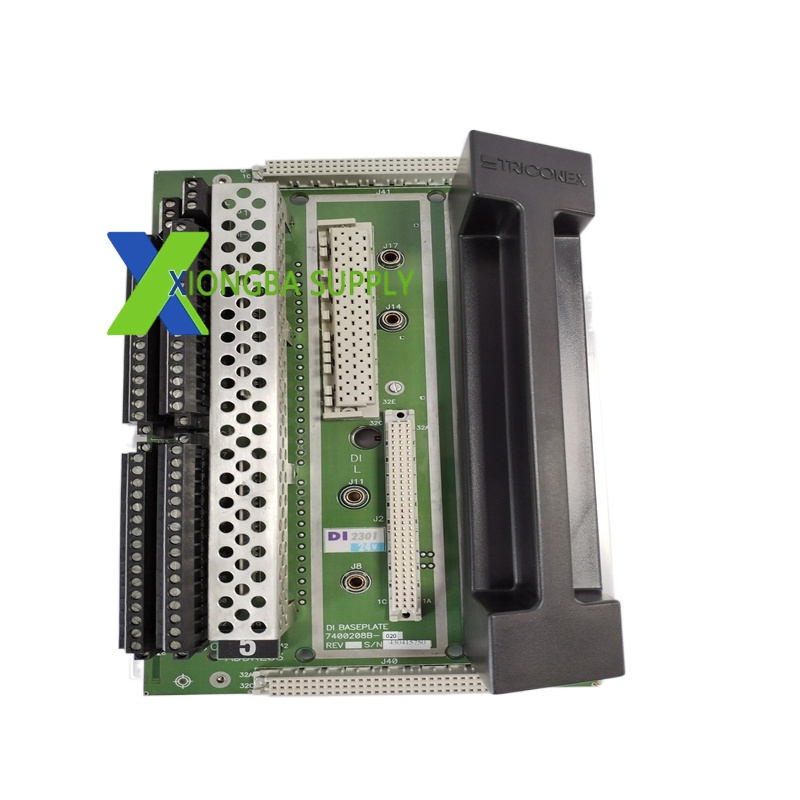

Triconex DI2301 - 16-Channel Digital Input Module for TriStation Safety Controller

Triconex DI2301 – 16-Channel Digital Input Module for TriStation Safety Controller

In stock

Product Introduction:
The Triconex DI2301 is a 16-channel digital input module for the Triconex TriStation safety controller. This module accepts discrete (on/off) signals from field devices such as pushbuttons, limit switches, proximity sensors, pressure switches, and flame detector relays. The “DI” stands for Digital Input, “23” indicates 16 channels (in Triconex nomenclature), and “01” denotes the specific revision. The module provides galvanic isolation between the field wiring and the safety processor, protecting the sensitive CPU from voltage spikes and ground loops. Each input channel can be individually configured for sink or source operation, 24V DC or 120V AC, and includes built-in filtering to reject electrical noise.

Technical Specifications:
Board Type: Digital Input Module
Channels: 16 independent digital input channels
Input Voltage: 24V DC or 120V AC (configurable per channel)
Input Type: Sink (NPN) or Source (PNP) selectable per channel
Isolation: 500V RMS opto-isolated per channel
Filter Time: Adjustable from 1ms to 100ms per channel
Contact Rating: Compatible with dry contacts, wet contacts, and solid-state outputs
Update Rate: 10 milliseconds scan time
LED Indicators: Per-channel green LEDs show input status at a glance
Voting: 2-out-of-3 hardware voting with redundant modules
Power: 24V DC from I/O carrier
Form Factor: 3U Triconex Eurocard

Functional Features:
Per-Channel Configuration: Every input can be independently set for sink/source, voltage level, and filter time, providing maximum flexibility.
Noise Filtering: Built-in digital filters reject transient spikes and contact bounce, preventing false triggers.
LED Status Indicators: Bright LEDs on every channel allow technicians to verify input status without software.
Fail-Safe Design: Inputs default to a safe state (typically open/de-energized) on loss of field power or communication.
Hot Swappable: Can be removed and replaced while the system is running in a redundant configuration.
Watchdog Monitoring: Hardware watchdog detects communication loss and forces the safety processor to a safe state.

Application Scenarios:
Emergency Stop Buttons: Reads E-stop buttons and safety door interlocks in machinery and process plants.
Limit Switches: Monitors valve position switches, tank level switches, and conveyor belt alignment sensors.
Flame Detection: Accepts dry contact outputs from flame detectors for fire and gas safety systems.
Pressure Switches: Reads high-pressure and low-pressure switch contacts for compressor and boiler protection.
Guard Interlocks: Monitors machine guard door switches to ensure machines cannot start with guards open.
