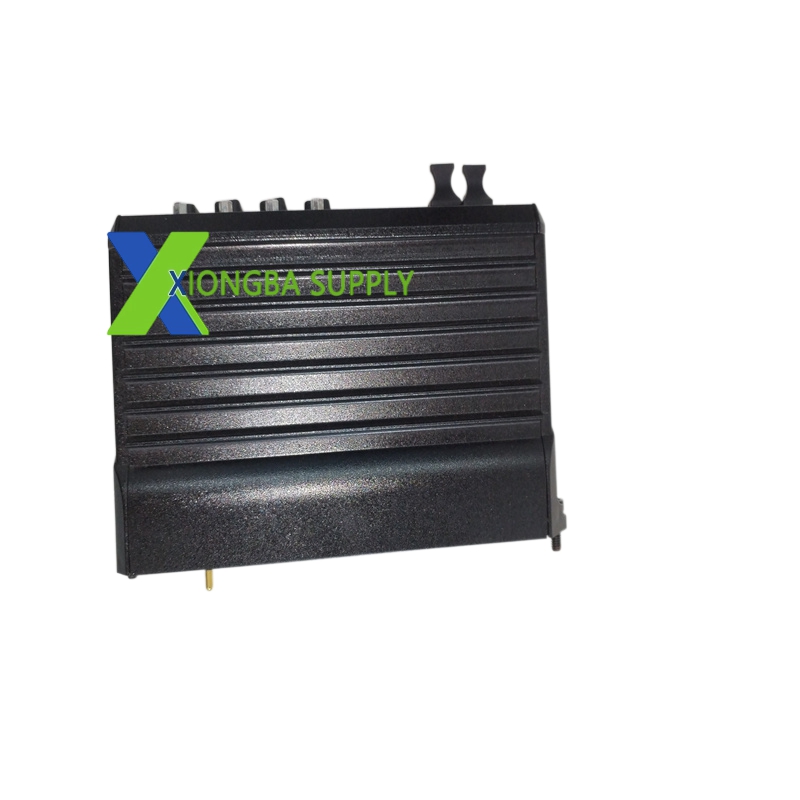

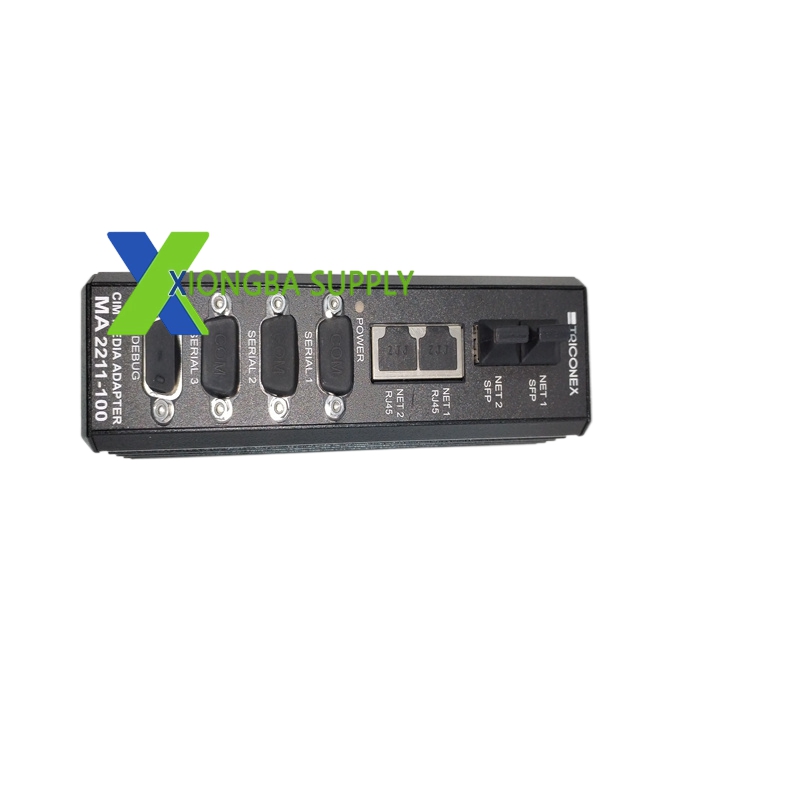

Triconex MA2211-100S2 - 100-Point Analog Marshalling Assembly

Triconex MA2211-100S2 – 100-Point Analog Marshalling Assembly

In stock

Product Introduction:
The Triconex MA2211-100S2 is a 100-point analog marshalling assembly used in Triconex safety instrumented systems. The “MA” stands for Marshalling Assembly, “2211” identifies the specific configuration (100 points of analog I/O), and “100S2” denotes the 100-point Series 2 revision. This assembly is not a smart module; it is a passive signal conditioning and termination assembly that provides the physical connection between field wiring and the Triconex I/O modules. It contains terminal blocks, fuses, and surge protection devices for every analog point. The marshalling assembly is installed in the field marshalling cabinet (near the field devices) and connects to the Triconex I/O carrier in the control room via multi-core cables. It simplifies field wiring by providing a central termination point for all analog signals.

Technical Specifications:
Assembly Type: Analog Marshalling Assembly
Point Count: 100 analog points (configurable as 50 AI / 50 AO, or other ratios)
Signal Types: 4-20mA, 0-10V, RTD (Pt100, Pt1000), Thermocouple (all types)
Termination: Spring-clamp terminal blocks for field wiring
Protection: Per-channel fuses (250mA) and surge suppression (TVS diodes)
Isolation: Channel-to-channel isolation via individual isolation barriers
Cable Interface: Multi-core cable connection to Triconex I/O carrier
Operating Temperature: -20 to +70 degrees Celsius (field-rated)
Enclosure: NEMA 4X stainless steel enclosure (IP66 rated)
Standards: IEC 61508, SIL 3 capable

Functional Features:
Centralized Termination: Provides a single termination point for up to 100 analog signals, reducing field wiring complexity.
Per-Channel Protection: Each channel has its own fuse and surge suppression, preventing a single fault from affecting other channels.
Isolation Barriers: Individual isolation barriers on every channel prevent ground loops and protect the control room equipment.
Easy Maintenance: Spring-clamp terminals allow quick disconnection and reconnection of field wiring during maintenance.
Status Indication: Per-channel LEDs show fuse status and signal presence.
Weatherproof: NEMA 4X enclosure protects the assembly from rain, dust, and corrosion in outdoor installations.

Application Scenarios:
Field Marshalling Cabinet: Installed in outdoor cabinets near field transmitters in oil and gas plants, refineries, and chemical facilities.
Long Cable Runs: Used when field devices are hundreds of meters from the control room, providing a clean termination point.
High-Point-Count Systems: Serves as the marshalling assembly for large safety systems with 100+ analog points.
Hazardous Areas: Rated for installation in hazardous (Class 1 Div 2) areas where spark-proof termination is required.
